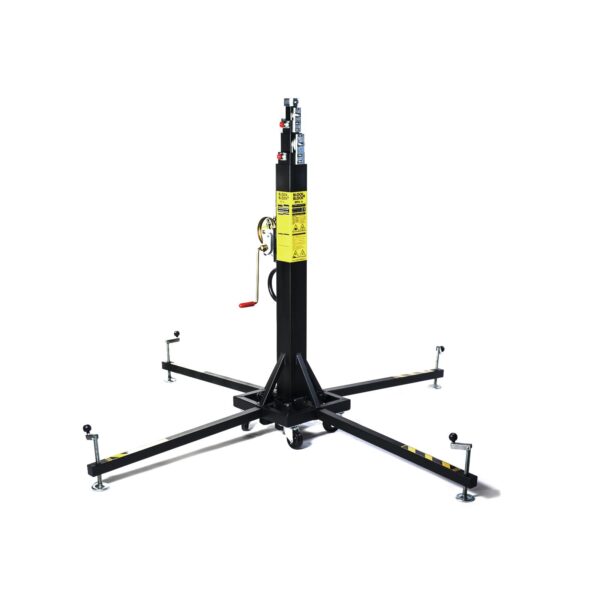

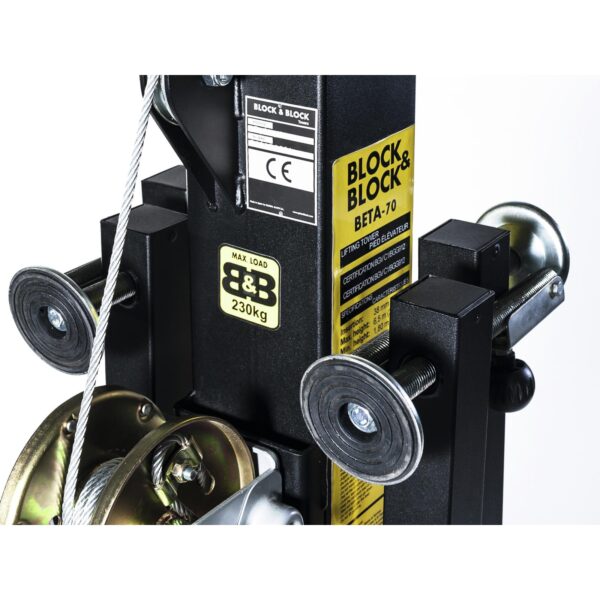

BLOCK AND BLOCK BETA-70 Truss lifter 230kg 6.5m
1.710,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
High-quality ground support for weights up to 230 kg, made in EU
- Five-part telescopic ground support
- 6 mm steel rope
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection

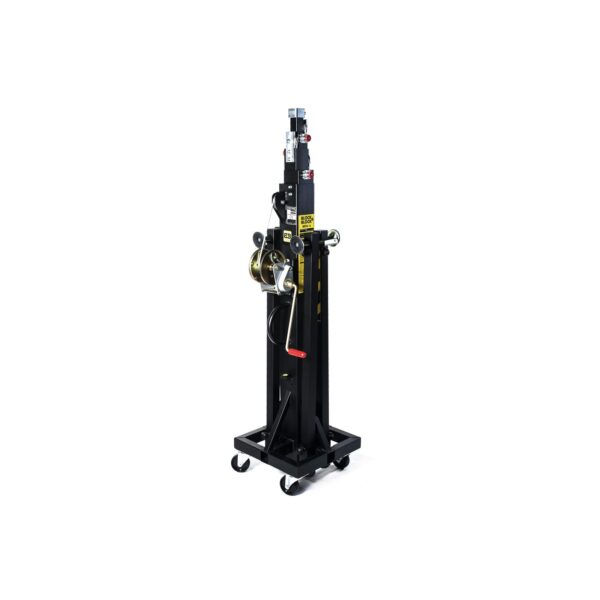

- Transport rolls to move the lift when retracted
- AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6×19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- Made in Europe
| Minimum load: | 25 kg |
| Max. Height: | 6.5 m |
| Min. height: | 1.8 m |
| Weight: | 93 kg |
| Adapter: | 38 mm |
| Transport dimensions: | 1.85 x 0.46 x 0.48 m |
| Base area: | D= 2.52 m |
| Steel rope: | 6 mm |
| Nominal tensile strenght of rope: | 1770 N/mm² |
| Maximum carrying capacity: | 230 kg |
| Peso | 1055,000 kg |
|---|---|
| Dimensioni | 18,300 × 0,4800 × 0,4600 cm |
| Codice Ean | 4026397644197 |
