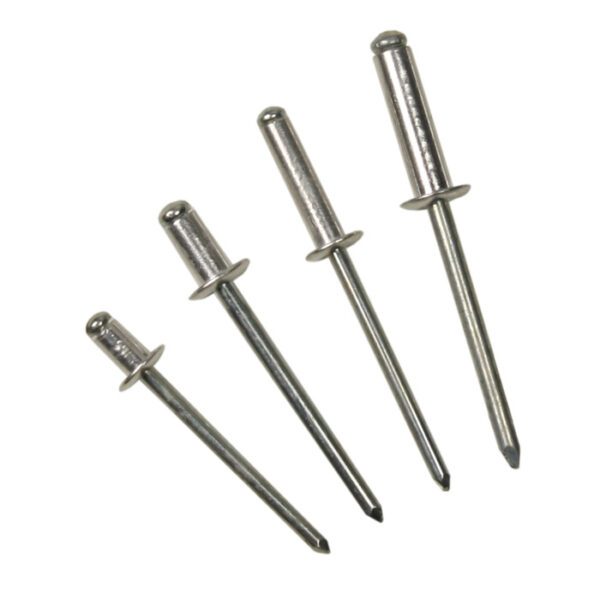

Bralo 55944816 – Rivetti Ciechi per Materiali Morbidi 4,8 x 16 mm
BLIND RIVETS FOR SOFT MATERIALS (ALUMINIUM)
This fixing ensures a secure and tight connection in soft materials. Therefore also particularly effective when used with materials such as plastic or wood.
The Bralo for soft materials is a mandrel break blind rivet This rivet is particularly suitable for materials that are soft or brittle, because the mandrel break load is controlled. It provides exceptional clamping force. A 3.5% aluminium-magnesium alloy gives increased tensile and shear forces.

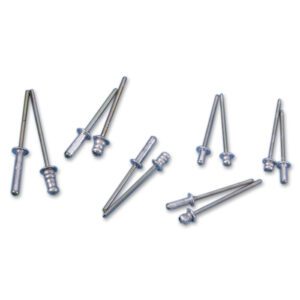

Other rivet versions for special applications and requirements available in the shop.
- Single-sided application (blind rivet)
- Blind rivets can be inserted from both sides
- Can be used to connect soft and brittle materials, among other things (plastics, wood, glass fibre, metal to plastic )
- No damage to the surface after riveting
- Excellent resistance to temperature changes
- No loosening by dynamic influences (vibration-resistant)
- Available in aluminium with a magnesium content of 3.5%
- High quality, simple and quick installation.
- Ecological riveting process: no smoke, sparks or steam
- Simple, lightweight and rapid use.
Tipo di prodotto | Dispositivi di fissaggio |
Tipo | Chiodi |
Ø rivetto | 4,8 mm |
Lunghezza rivetto | 16 mm |
Ø testa | 9,5 mm |
Altezza testa | 1,4 mm |
Ø mandrino | 2,73 mm |
Campo di serraggio | 10,0 – 12,0 mm |
Capacità di carico fermo | 2000 N |
Capacità di carico trazione | 2700 N |
Materiale rivetto | Alluminio |
Lega rivetto | AlMg 3,5 |
Materiale mandrino | acciaio |
Superficie mandrino | Grezzo |
Peso | 0,003 kg |
