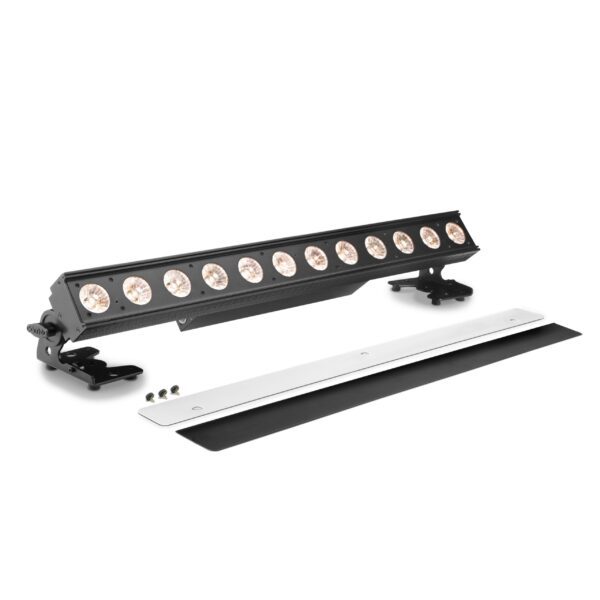

Cameo PIXBAR DTW PRO – 12 x 10 W Tri-LED Bar with Variable White Light and Dim-to-Warm Control
Featuring twelve 10 watt 3-in-1 cool white, warm white and amber Tri-LEDs, the Cameo PIXBAR DTW PRO permits full white temperature control from warm Tungsten white to ultra bright cool white. The professional LED bar features an 18° beam angle and Dim-to-Warm technology to emulate the smooth dimming of halogen lamps. Highly efficient convection cooling and a 3,000 Hz refresh rate ensure absolutely noiseless and flicker-free operation making it a perfect choice for TV and film applications.
The PIXBAR DTW PRO is RDM enabled and provides 9 modes of DMX control, sound activation plus automated operation. The fixture includes single pixel control for impressive chase effects and pixel mapping, a high-speed strobe and selectable 16-bit dimming curves with adjustable response. A 4-button display enables easy configuration. The rugged aluminium housing features 3 and 5-pin DMX and Neutrik powerCON inputs and outputs that enable convenient daisy chaining. The PIXBAR DTW PRO comes with a glare shield and frost filter if softer washes are called for.
- 12 x 10 watt Tri-LEDs 3-in-1 Cool White, Warm White and Amber
- Full white temperature control from Tungsten to CW (1,600 – 6,800 K)
- CRI 97 @ 2,800 K for natural colour rendering
- Dim to Warm (DTW) technology to emulate halogen-style dimming
- Single pixel control for stunning chase and pixel mapping effects
- Selectable 16-bit dimming curves and response
- RDM enabled
- 9 DMX modes plus sound activation and automated operation
- Highly efficient convection cooling for noiseless operation
- Flicker free for use in TV and film applications
- Glare shield and frost filter included
- Omega bracket set available as accessory
Tipo di prodotto | Barre LED |
Tipo | Washer |
Spettro cromatico | Bianco caldo, Bianco freddo, Giallo |
Numero di LED | 12 |
Frequenza di ripetizione | 3000 Hz |
Lente | PE |
Ingresso DMX | Presa XLR maschio a 3 poli |
Uscita DMX | Presa XLR femmina a 3 poli |
Modalità DMX | 13 canali, 3 canali, 36 canali, 6 canali, 9 canali, A 1 canali, A 2 canali |
Funzioni DMX | Dim to Warm, Dimmer, Modalità Auto, Strobe |
Modalità standalone | Modalità master / slave, Static |
Elementi di comando | Down, Enter, Mode, Up |
Indicatori | Schermo a cristalli liquidi |
Potenza assorbita | 130 W |
Collegamento alimentazione elettrica | Neutrik powerCON IN/OUT |
Materiale cassa | Alluminio |
Colore cassa | Nero |
Classe di protezione IP | 20 |
Flusso luminoso | 3240 lm |
Efficienza | 25 lm/W |
Temperatura di esercizio | -15 – 45 °C |
Dimensioni compresa la staffa di montaggio
Larghezza | 93 mm |
Altezza | 130 mm |
Lunghezza | 900 mm |
Peso | 7,8 kg |
