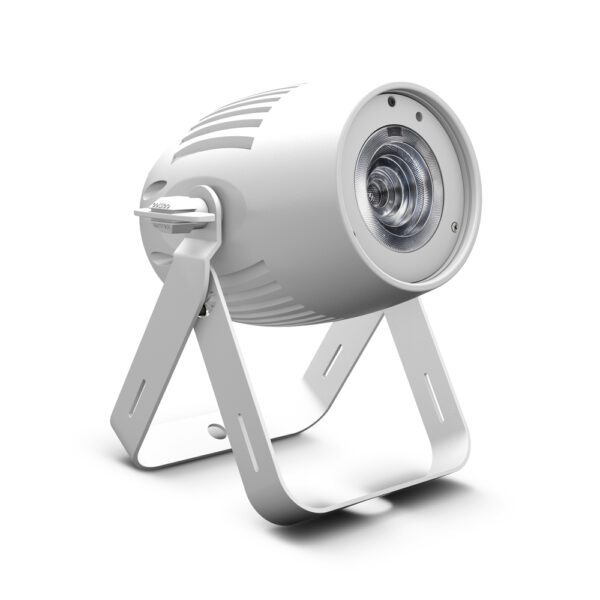

Cameo Q-SPOT 40 CW WH – Compact Spotlight with 40 W Cold White LED in White Housing
This compact Cameo Q-Spot is equipped with a powerful 40 watt cold white LED with colour temperature of 6500° Kelvin. The RDM enabled PAR light sports a custom lens for a tightly focused 4.5° beam spread and comes with two additional lenses offering versatility with a choice of 10° and 25° angles. Using 16-bit technology, the fixture provides ultra smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications. .
The white light Q-Spot 40 features 3-channel DMX control, sound activation and master, slave and standalone capability. A convenient infrared remote control unit is available as accessory. The spotlight features a high-speed strobe function and a 4- button OLED display for easy configuration. The rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking. The Q-Spot 40 CW is available with a black (item no. CLQS40CW) or white housing (item no. CLQS40CWWH).
- Compact LED spot light with single 40W cold white LED
- 6,500 K color temperature
- Custom lens with 4.5° beam spread for uniform light intensity
- Includes 2 replacement lenses for 10° or 25° beam angles
- RDM enabled
- 16-bit technology for ultra smooth dimming
- Flicker free, ideal for motion picture and TV applications
- 4 high resolution dimming curves with adjustable response
- DMX control, sound activation plus master, slave and standalone capability
- 4-button OLED display for easy configuration
- Convection cooling for noiseless performance
- Infrared remote control available as accessory
Tipo di prodotto | Proiettori PAR LED |
Tipo | Interni |
Spettro cromatico | Bianco freddo |
Numero di LED | 1 |
Temperatura colore | 6500 K |
Durata media LED | 50.000 h |
Tipo di LED | 40 W |
Frequenza di ripetizione | 3.600 Hz |
Angolo di proiezione | 4,5°, 10°, 15 ° |
Ingresso DMX | Presa XLR maschio a 3 poli |
Uscita DMX | Presa XLR femmina a 3 poli |
RDM | Sì |
Protocolli | USITT DMX-512 |
Modalità DMX | 3 canali |
Funzioni DMX | Controllo tramite musica, Master Dimmer, Strobe |
DMX wireless | No |
Strobo Flash Rate | 1 – 20 Hz |
Modalità standalone | Controllo tramite musica, Modalità master / slave |
Elementi di comando | Down, Enter, Mode, Up |
Indicatori | display OLED |
Alimentazione | 100 V – 240 V AC, 50/60 Hz |
Potenza assorbita | 55 W |
Quanti dispositivi è possibile collegare (110V) | 5 |
Quanti dispositivi è possibile collegare (240V) | 5 |
Collegamento alimentazione elettrica | blue Power Twist male |
Collegamento per passaggio corrente | grey Power Twist female |
Materiale cassa | Metallo |
Colore cassa | Bianco |
Classe di protezione IP | IP20 |
Raffreddamento | Convezione |
Flusso luminoso | 1829 lm |
Ingombro (senza staffa di supporto)
Larghezza | 220 mm |
Altezza | 230 mm |
Lunghezza | 220 mm |
Peso | 2,75 kg |
