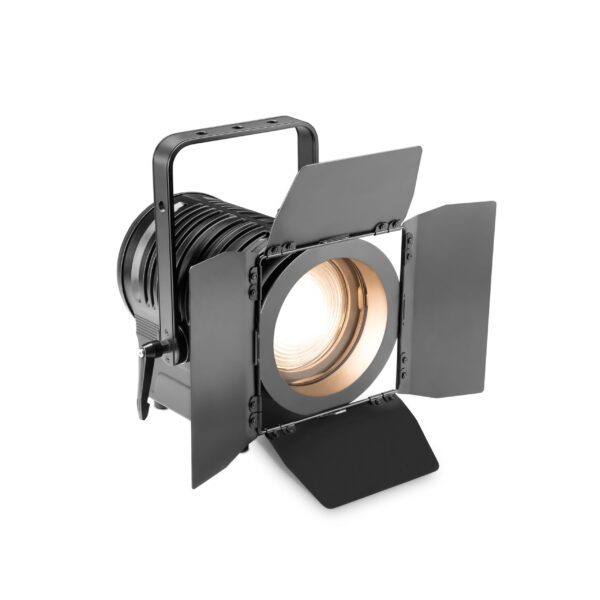

Cameo TS 200 WW – Theatre Spotlight with Fresnel Lens and 180 Watt Warm White LED in Black Housing
The Cameo TS 200 WW is a versatile theatre spotlight with Fresnel lens and manual zoom for easy spot-to-flood focus adjustment. Delivering a soft-edged beam with continuously variable 14° to 38° angle, the RDM-enabled fixture is powered by a single 180 watt warm white LED. It sports a colour temperature of 3,100 K, an illuminance of 67,500 lux at 1 metre distance and shows colours faithfully and realistically with a super high CRI of 96.
The spotlight’s DMX functions include a high-speed strobe with adjustable flash rate from 1 – 20 Hz and a choice of dimming curves with 16-bit resolution. Selectable refresh rates up to 25 kHz ensure flicker-free performance. The TS 200 WW comes in a tough metal housing with temperature controlled fan. It provides a 4-button display for easy configuration, 3 and 5-pin DMX and Power Twist inputs and outputs for convenient daisy-chaining. The package includes a beam-shaping rotating barn door and colour filter frame.
- Powerful 180 watt warm white LED
- Fresnel lens
- Continuously variable manual zoom for 14° – 38° beam angle
- RDM enabled
- 67,500 lux @ 1 m / 6,600 lm
- 3,100 K colour temperature
- CRI >96 for faithful colour reproduction
- Flicker-free performance
- Rugged metal housing with temperature controlled fan
- Includes rotatable barn doors and colour filter frame
Tipo di prodotto | Proiettori PAR LED |
Spettro cromatico | Bianco caldo |
Numero di LED | 1 |
Temperatura colore | 3100 K |
CRI | 97 |
Angolo di proiezione | 14 – 38 ° |
Ingresso DMX | Presa XLR maschio a 3 poli, Presa XLR maschio a 5 poli |
Uscita DMX | Presa XLR femmina a 3 poli, Presa XLR femmina a 5 poli |
Modalità DMX | 3 canali, 5 canali, A 1 canali |
Funzioni DMX | Curva dimmer, Impostazioni del dispositivo, Strobe |
Modalità standalone | Dimmer |
Elementi di comando | Down, Enter, Mode, Up |
Alimentazione | 100 V – 240 V AC, 50/60 Hz |
Indicatori | Schermo a cristalli liquidi |
Potenza assorbita | 200 W |
Materiale cassa | Metallo pressofuso |
Colore cassa | Nero |
Raffreddamento | Ventola con regolazione di temperatura |
Temperatura di esercizio | 0 – 40 °C |
Flusso luminoso | 6600 lm |
Larghezza | 320 mm |
Altezza | 370 mm |
Profondità | 310 mm |
Peso | 7,4 kg |
Accessori (forniti in dotazione) | Deflettore con alette |
