EIKON EKJJ

PREZZO SU RICHIESTA

SISTEMA WIRELESS per CHITARRA e BASSO UHF 863-865 Mhz

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: 8032496982593 COD: EKJJ Categoria: Wireless Microphones Brand: EIKON

SISTEMA WIRELESS per CHITARRA e BASSO UHF 863-865 Mhz

EKJ&J è un sistema per chitarra wireless UHF controllato al quarzo che fornisce una trasmissione del segnale affidabile e di alta qualità.

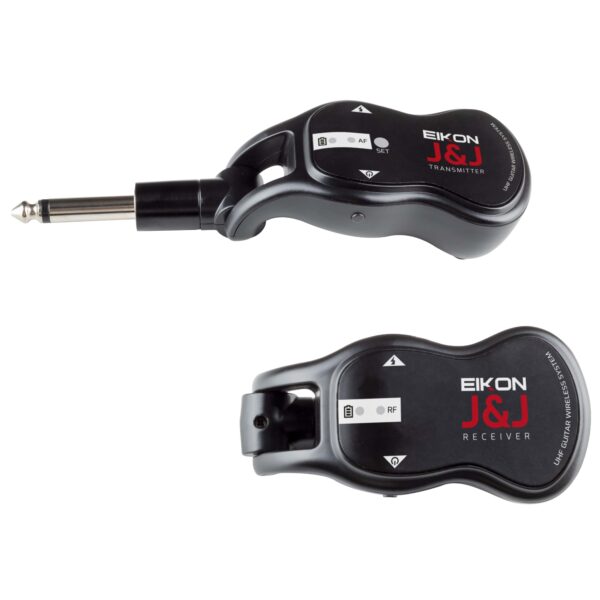

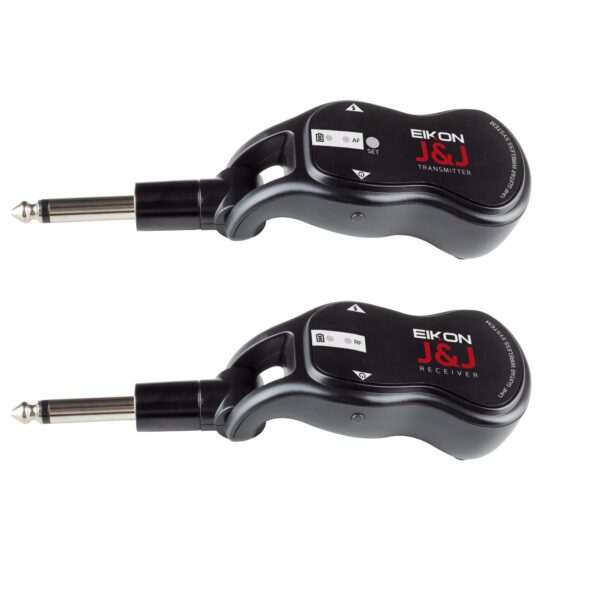

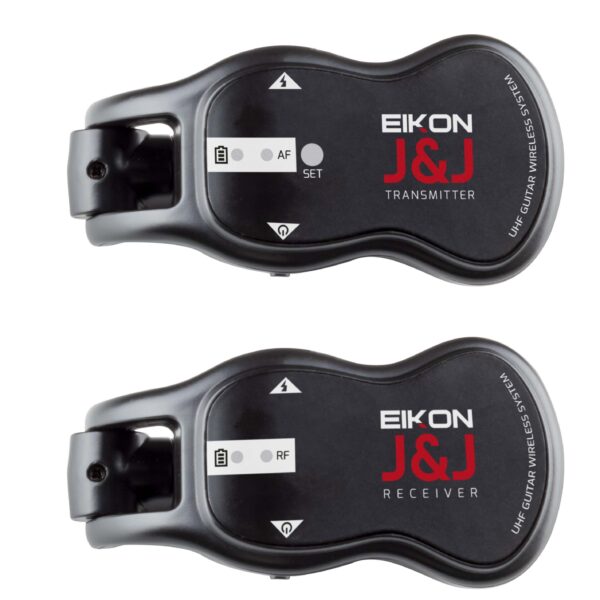

EKJ&J è dotato di 3 unità: trasmettitore EKJ&J compatto “formato connettore”, ricevitore EKJ&J compatto “formato connettore” e cavo di ricarica da USB a USB-mini.

Sono disponibili 16 canali di frequenza (modello EKJ&JA a 50 canali), che consentono di utilizzare il dispositivo insieme ad altre apparecchiature wireless.

UHF 863– 865 MHz frequency band
Quartzlockedmodulation mode
Up to 30 meters range
Built in 3.7V/500mA lithiumbattery
5V USB charging cable included
Up to 4 hours autonomy
Up to 6 systems usable in the same location

EKJ&J – UHF PLL 16 Channel Transmitter
RF Channels	16 frequency presets
RF Frequency Band	UHF: 863-865 MHz
RF Frequency Stability	±0,002%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Output Power	10mW
Sub-harmonic	< 40 dB
Operating current	120 mA
Operating Time	3 to 5 hrs
Operating Power Supply	3.7 V / 500 mA – built-in Lithium battery
Charging mode	USB charging 5V – type USB mini connector
Charging time	3 hours
Weight	0.05 Kg

EKJ&J –UHF PLL 16 Channels Receiver
RF Channels	16 frequency presets
RF Frequency Band	UHF: 863-865 MHz
RF Frequency Stability	±0,005%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Receiving Sensitivity	< -98 dBm
RF Receiving range	15 to 30 meters depending on used band conditions
Audio dynamic range	106 dBm
THD Distortion	< 0.5%
S/N Ratio	> 102 dBA
Audio output connector	6.3 mm Mono Jack
Output Power Max (continuous)	400 mW
Operating current	80 mA
Operating Time	5 hours
Operating Power Supply	3.7 V / 500 mA – built-in Lithium battery
Charging mode	USB charging 5V – type USB mini connector
Charging time	3 hours
Weight	0.05 Kg

EKJ&JA – UHF PLL 50 Channel Transmitter
RF Channels	50 frequency presets
RF Frequency Band	UHF: 512 – 541,7 MHz
RF Frequency Stability	±0,002%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Output Power	10mW
Sub-harmonic	< 40 dB
Operating current	120 mA
Operating Time	3 to 5 hrs
Operating Power Supply	3.7 V / 500 mA – built-in Lithium battery
Charging mode	USB charging 5V – type USB mini connector
Charging time	3 hours
Weight	0.05 Kg

EKJ&JA –UHF PLL 50 Channels Receiver
RF Channels	50 frequency presets
RF Frequency Band	UHF: 512 – 541,7 MHz
RF Frequency Stability	±0,005%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Receiving Sensitivity	< -98 dBm
RF Receiving range	15 to 30 meters depending on used band conditions
Audio dynamic range	106 dBm
THD Distortion	< 0.5%
S/N Ratio	> 102 dBA
Audio output connector	6.3 mm Mono Jack
Output Power Max (continuous)	400 mW
Operating current	80 mA
Operating Time	5 hours
Operating Power Supply	3.7 V / 500 mA – built-in Lithium battery
Charging mode	USB charging 5V – type USB mini connector
Charging time	3 hours
Weight	0.05 Kg
