IP65 battery-powered spotlight with RGBWA/UV LEDs, QuickDMX, diffuser discs and IR remote control
- Integrated QuickDMX transmitter/receiver for wireless transmission of DMX512 signals
- 14 high-power 10 W RGBWA/UV LEDs (6in1)
- Suitable for external use (IP65)
- Including diffuser discs for beam angles of 15, 27°, 30° and 60°
- Battery operation up to 26 hours (depending on program used), recharging time 3 hours
- Auto, master/slave and DMX mode
- Built-in auto show programs
- Direct color selection for 27 preset colors
- Color temperature variably adjustable 2700-8000 K
- Stepless RGBWA/UV color mixture, color change, color fade, dimmer, strobe effect with variable speed
- Dimmer speed (step response) adjustable
- Addressing and setting via control panel with 4 buttons and LCD

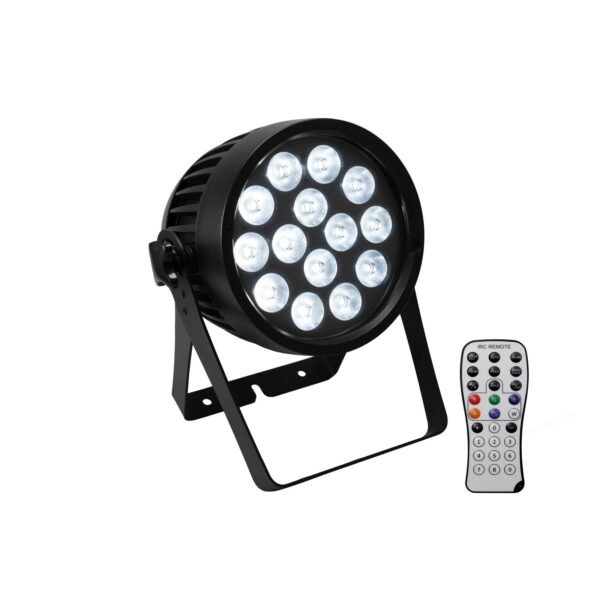

- Convenient wireless control via included IR remote control EUROLITE IR-7
- Swivel mounting brackets
- Additional bracket for floor use
- IP T-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 14 x 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Can be operated in 2; 3; 6-1; 6-2; 12 CH mode
- The device is cooled by passive convection
- Controlling by DMX; Stand-alone; IR remote control; Master/slave function; QuickDMX built-in
- Is in LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE already preprogrammed
- Flicker-free projection
Power supply: | 100-240 V AC, 50/60 Hz |
IP classification: | IP65 |
Protection class: | Class I |
Power connection: | Battery/battery pack built-in IP T-Con (M) mounting version Power supply cord with safety plug (provided) |
Power output: | IP T-Con (F) mounting version |
Battery pack type: | 1 x lithium ion 22.2 V, 4400 mAh, 97.68 Wh |
Battery pack: | Battery operation up to 26h depending on program used Recharging time 3h |
LED: | 14 x 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
Color temperature: | 2700K – 8000K adjustable |
Flash rate: | 0 – 20 Hz |
Equipment: | Frost filter |
DMX channels: | 2; 3; 6-1; 6-2; 12 |
DMX input: | 3-pin XLR (M) mounting version IP |
DMX output: | 3-pin XLR (F) mounting version IP |
Cooling: | Passive convection |
Control: | DMX; Stand-alone; IR remote control; Master/slave function; QuickDMX built-in; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE |
Beam angle: | 15° |
Beam angle (1/2 peak): | 15° 27° 30° 60° |
Housing color: | Black |
Display type: | LCD display |
Carrier frequency: | 2.4 GHz |
Dimension: | Width: 31.7 cm Depth: 22.7 cm Height: 37.0 cm |
Weight: | 7.85 kg |
Noise classification: | Class 0 (no noise at all) |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2032 lithium manganese built-in |
Legal specifications | |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
