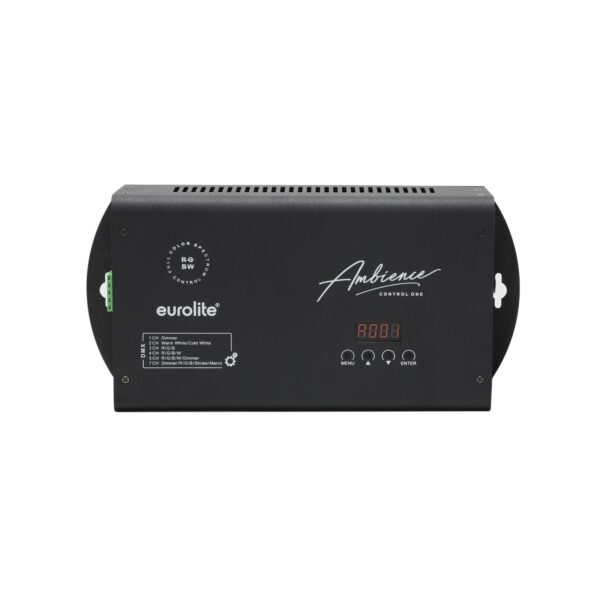

Compact controller for RGB/W+CCT LEDs (24V)
- Simple control of multiple LED types
- Controls single- and multi-colored LEDs (CCT, RGB, RGBW, RGB+CCT) as desired
- Max. load 150 watts
- QuickDMX connector for wireless DMX connection
- Electronic dimmer
- 20 integrated Showprograms
- Can be operated in 1; 2; 3; 4; 5; 7 CH mode
- Controlling by DMX; QuickDMX (optional); stand-alone; Master/slave function
- Flicker-free
- 4 digits 7-segment LED display
- MEANWELL Power supply
Power supply: | 100-240 V AC, 50/60 Hz |
Output power: | Max. 150 W |
Output current: | Max. 6,25 A |

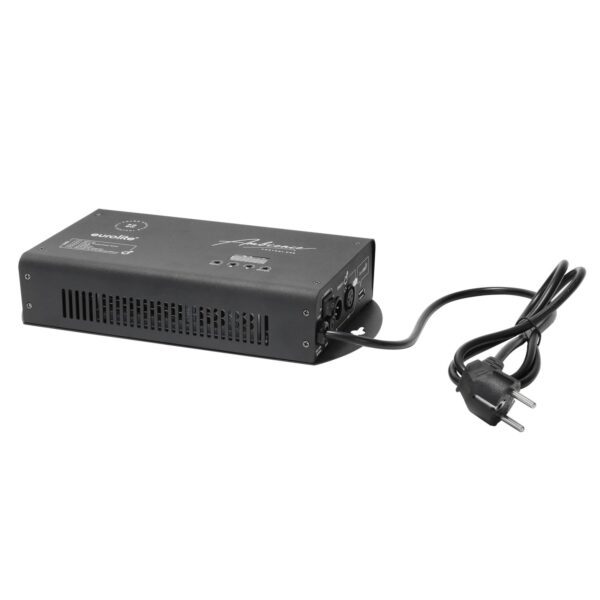

Power connection: | Power supply cord with safety plug (provided) |
DMX channels: | 1; 2; 3; 4; 5; 7 |

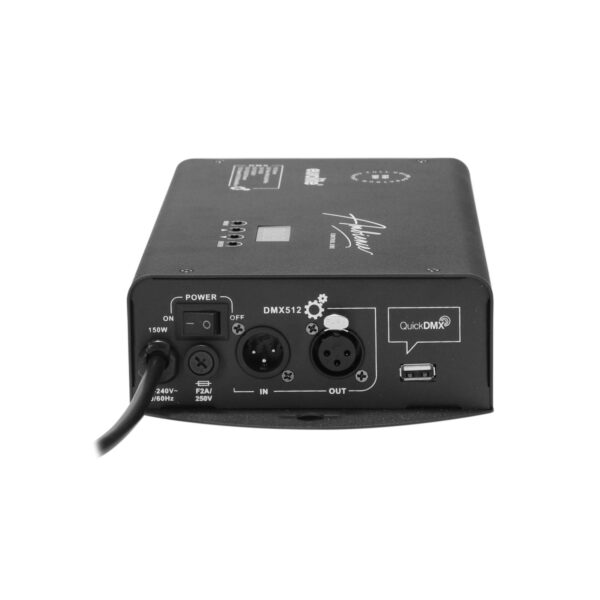

DMX input: | 3-pin XLR (M) |
DMX output: | 3-pin XLR (F) |
Control: | DMX; QuickDMX (optional); stand-alone; Master/slave function |
Control channels: | 1 |
Display type: | 4 digits 7-segment LED display |
Use of brands: | MEANWELL Power supply |
Color: | Black |
Dimensions: | Length: 32 cm Width: 15 cm Height: 5,8 cm |
Weight: | 1,72 kg |
