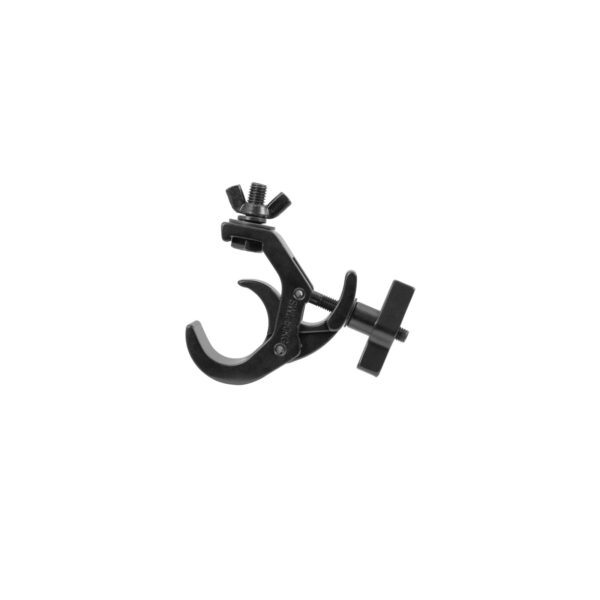

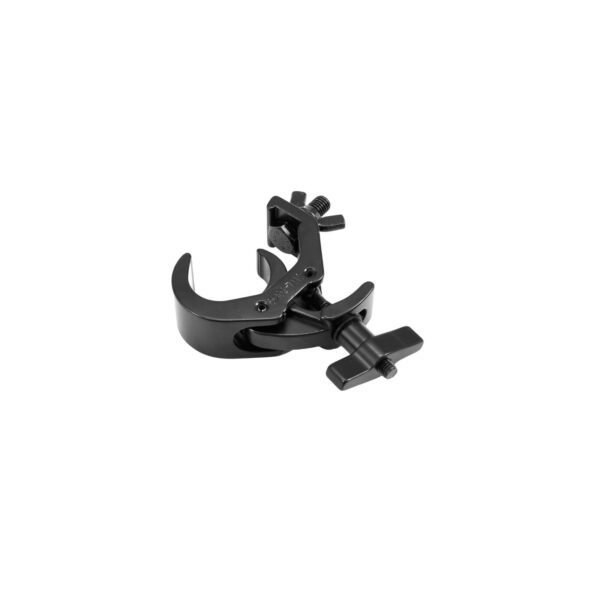

Coupler for 30 – 35 mm tube, maximum load WLL 50 kg
- For the installation at horizontal and vertical truss
- Quick-lock hook with large wing bolt for easier mounting
- M10 x 30 mm (8.8) fixation screw with butterfly nut M10 included
Maximum load BGV C1 (8-fold): | 25 kg |
Max. load WLL (4fold): | 50 kg |
Tube diameter sector: | 30 – 35 mm |
Color: | Black |
Dimension: | Length: 85 mm Width: 30 mm Depth: 120 mm |
Weight: | 240 g |
