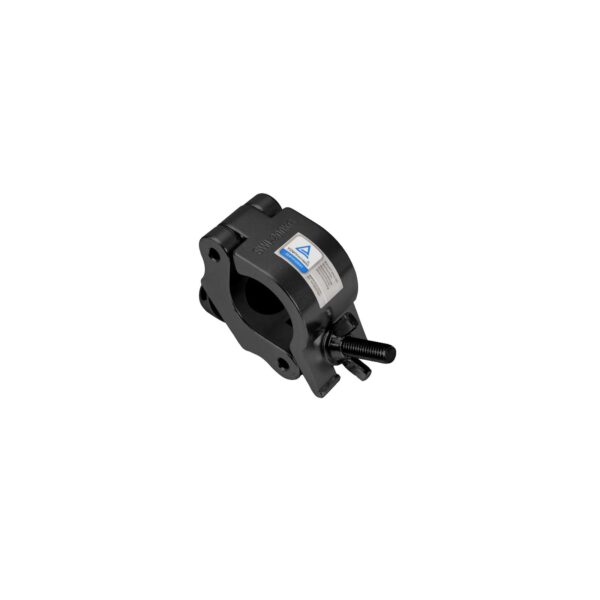

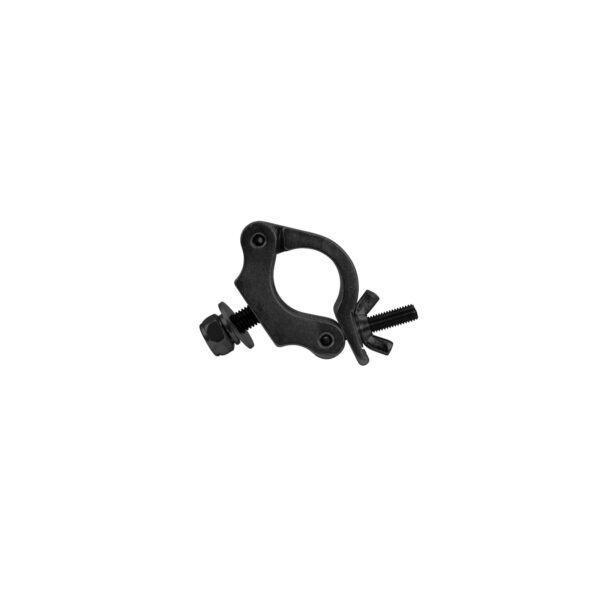

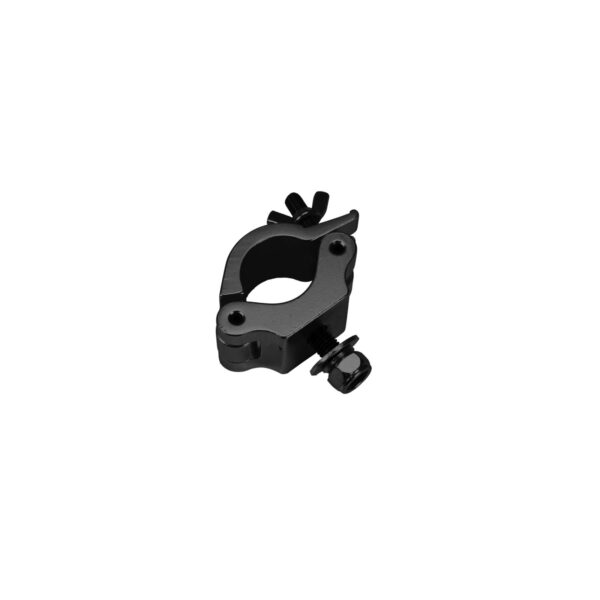

Mounting coupler for 32 – 35 mm tube, maximum load WLL 200 kg
- Hook for installing projectors, lighting effects etc. via a truss system
- For the installation at horizontal and vertical truss
- With countersunk mounting screw M10x35 mm
- Mounting of a half cone M10 is possible since the mounting screw can be turned as required (countersunk head)
Maximum load BGV C1 (8-fold): | 100 kg |
Max. load WLL (4fold): | 200 kg |
Tube diameter sector: | 32 – 35 mm |
Color: | Black |
Dimension: | Length: 51 mm Width: 35 mm Depth: 80 mm |
Weight: | 200 g |
