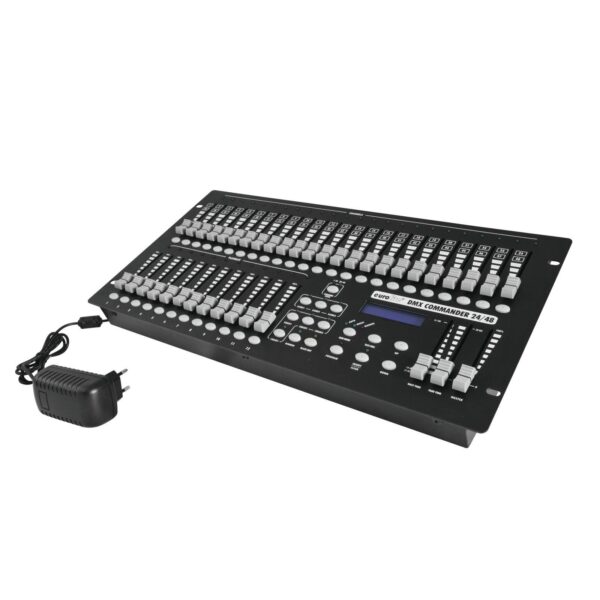

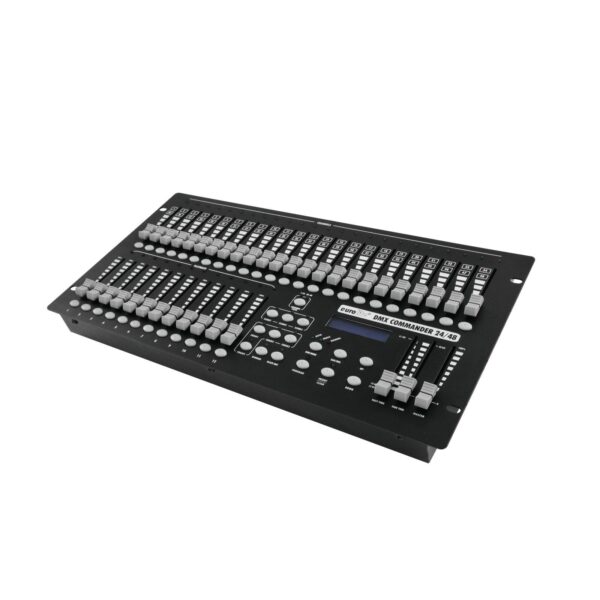

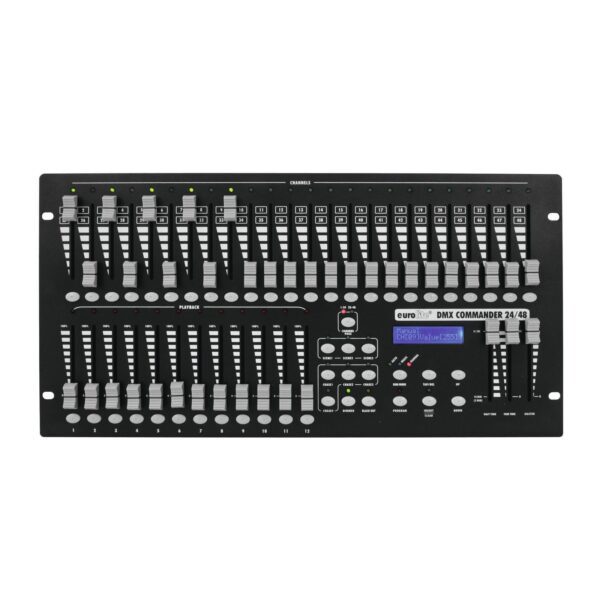

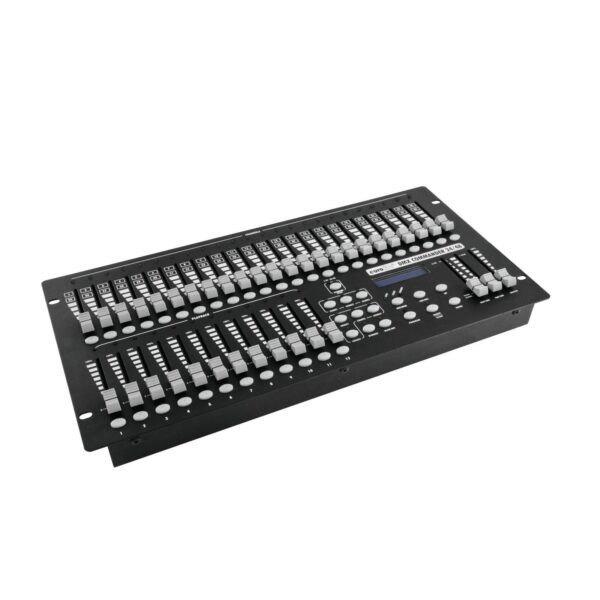

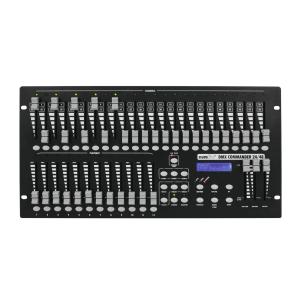

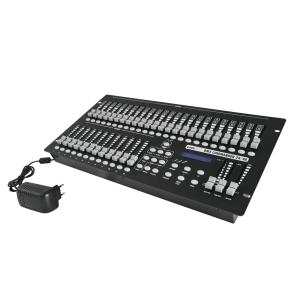

Comfortable DMX controller with RDM functions
- 48 control channels
- 24 faders, 2 pages
- RDM functions
- 36 scenes can be called up directly via 12 faders, 3 pages
- 48 memorizable programs via 4 pages
- Good visual control of scenes and chasers through intelligent status LEDs
- Blackout function
- Sound control via built-in microphone or via Line In connection
- Firmware update and data backup via USB connection
Power supply: | 230 V AC, 50 Hz |
via 9 V DC, 300 mA power unit included in the delivery | |
Power consumption: | 3 W |
Number of control channels: | 48 |
Sound-control: | via built-in microphone or |
RCA line input (min. 100 mV) | |
DMX512/RDM output: | 3-pin XLR connector |
Dimensions (W x D x H): | 483 x 245 x 73 mm |
Rack installation with 6 U | |
Minimum mounting depth: | 80 mm |
Weight: | 4 kg |
