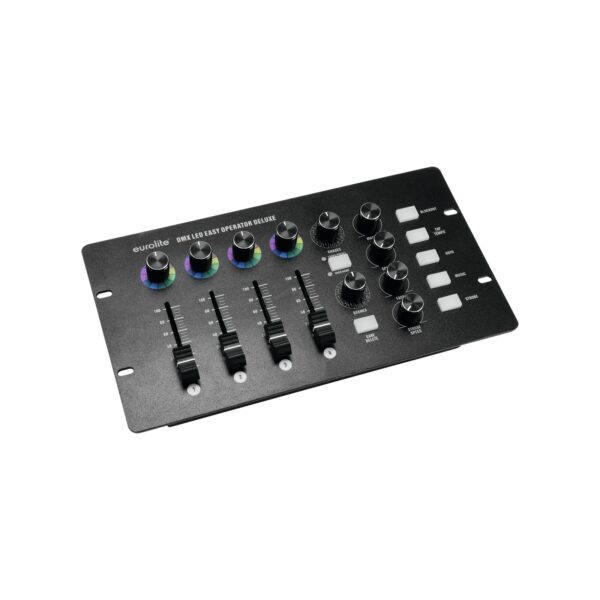

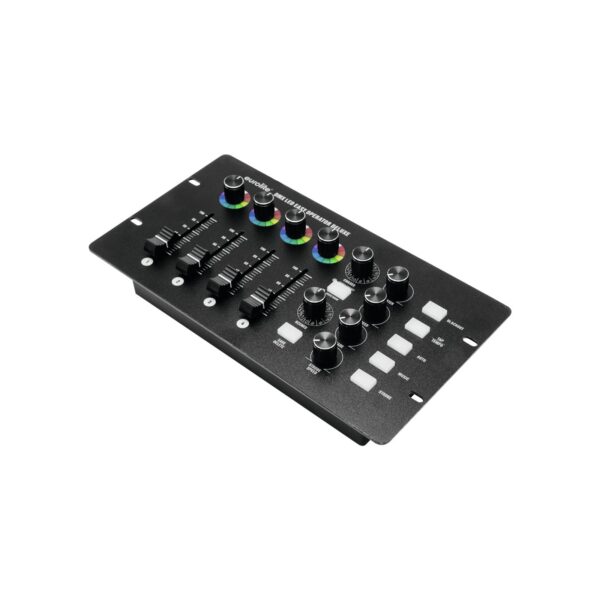

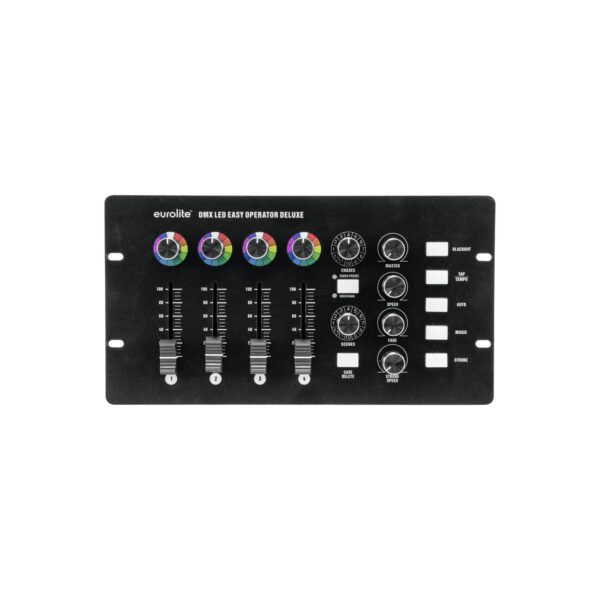

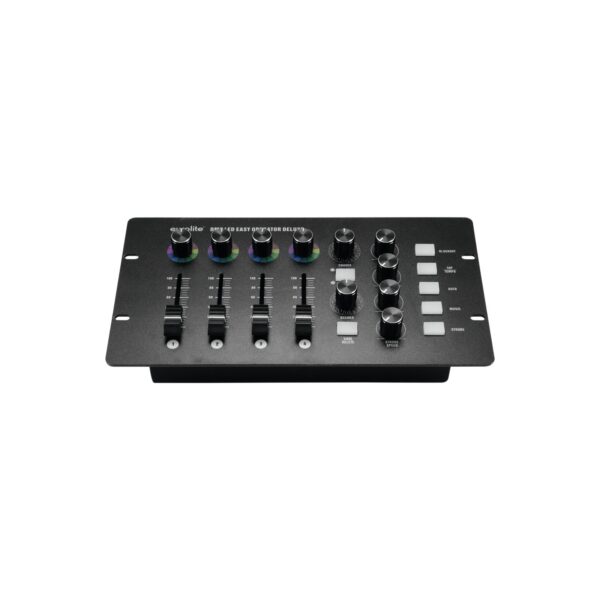

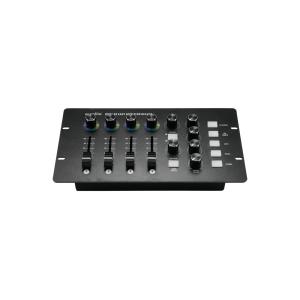

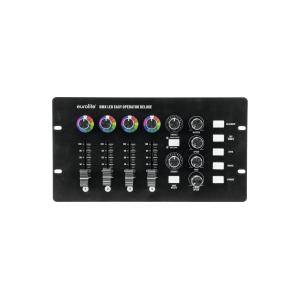

Controller for 4 colored LED spotlights or one KLS set with 4 segments
- DMX controller for standard LED spotlights
- Easy operation
- 4 LED spotlights or 1 KLS set with 4 fixtures can be controlled
- DMX channels for red, green, blue, amber, white, UV, strobe and master
- 9 different modes for the DMX channel sequence selectable
- 12 integrated preset programs and 12 user-definable programs (each with up to 12 scenes)
- Auto mode or sound control
- 4 color controls with 12 colors each
- 4 brightness controls
- Controls for overall brightness, running speed, fade and strobe speed
- Function buttons for Blackout, TAP/Tempo, Auto, Music and Strobe
- Compact desktop console
- Controller useable for: RGB
- Controller useable for: RGBA
- Controller useable for: RGBW
- Controller useable for: RGBA+RGBW
- Controller useable for: RGBWA
- Controller useable for: RGBWA+UV
- Controller useable for: RGBW+UV
- Controller useable for: RGB+WA
- Controller useable for: RGB+UV
- Controller useable for: Controls KLS classic
- Controller useable for: Controls KLS in general
Power supply: | 100-240 V AC, 50/60 Hz |
via included power adapter (9 V/300 mA) | |
Sound-control: | via built-in microphone or RCA input |
DMX512 output: | 3-pin XLR connector |
Dimensions (L x W x H): | 260 x 140 x 65 mm |
Number of DMX channels: | 24 |
Weight: | 1,2 kg |
Power consumption: | 10 W |
IP classification: | IP20 |
Color: | Black |
Height: | 6,5 cm |
Depths: | 14 cm |
Width: | 26 cm |
