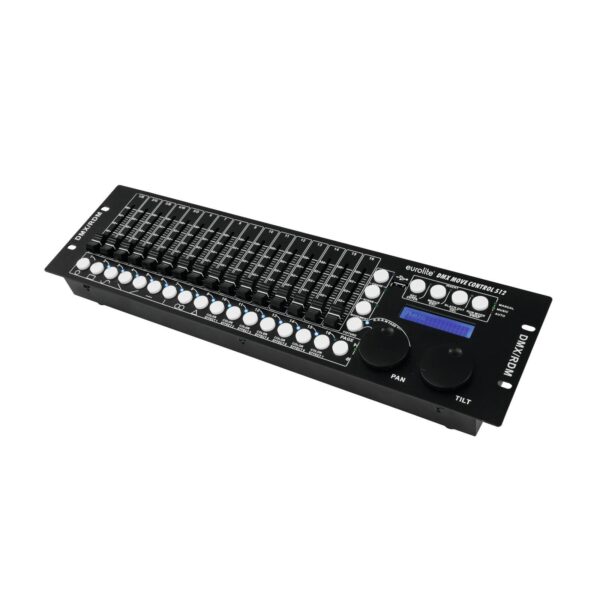

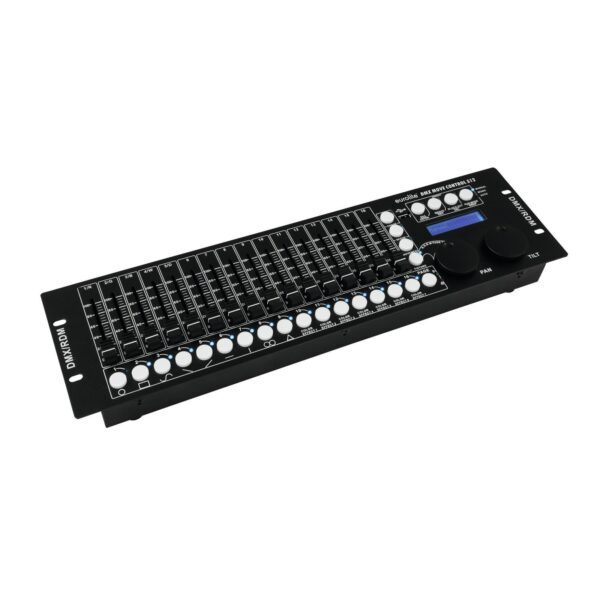

EUROLITE DMX Move Controller 512

DMX controller with FX generator for motions

• DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
• 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
• For 28 fixtures with 18 control channels each
• USB port for storing program data
• Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
• 32 programmable chases with 100 scenes each can be stored
• Manual, time-controlled or sound-controlled chase running mode
• 32 programmable scenes
• 2 DMX fixture levels can be controlled, each with up to 18 channels
• 16 DMX channel faders
• 2 jog wheels for pan/tilt
• Blackout function
• Sound control via built-in microphone
• Backlit LCD (2 x 16 characters)
• RDM support (DMX address setup and identify)

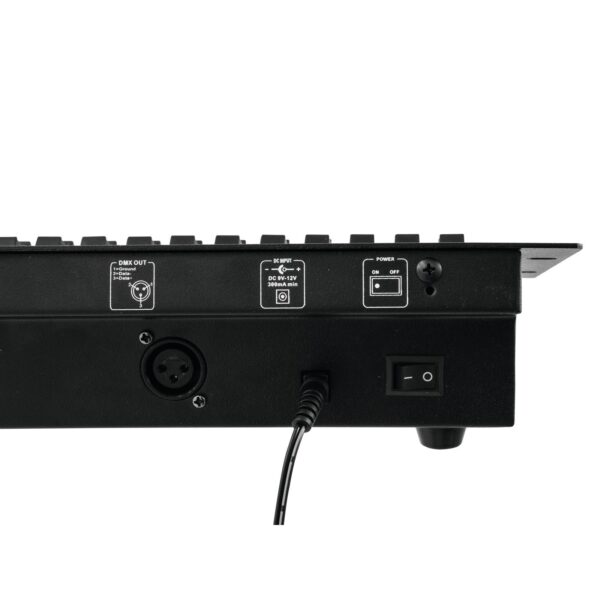

• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Rack installation with 3 units
