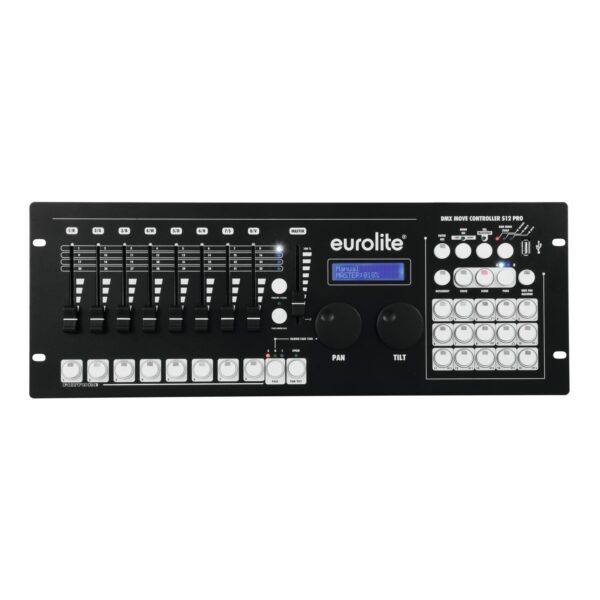

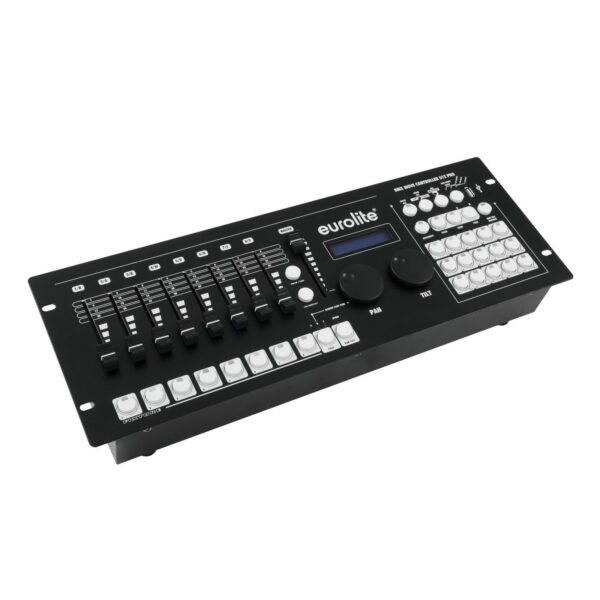

EUROLITE DMX Move Controller 512 PRO

DMX controller with FX generator for motions

• DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
• 512 DMX channels can be assigned and inverted as desired to 34 control channels (softpatch)
• For 24 fixtures with max. 34 control channels each
• USB port for storing program data
• Quick programming thanks to 9 integrated movement patterns and 6 color effects (pan/tilt position, fade time and running time adjustable)
• Several movement patterns and color effects can be used simultaneously
• 30 programmable chases with 100 scenes each can be stored
• Manual, time-controlled or sound-controlled chase running mode
• 30 programmable scenes
• 3 DMX fixture levels can be controlled

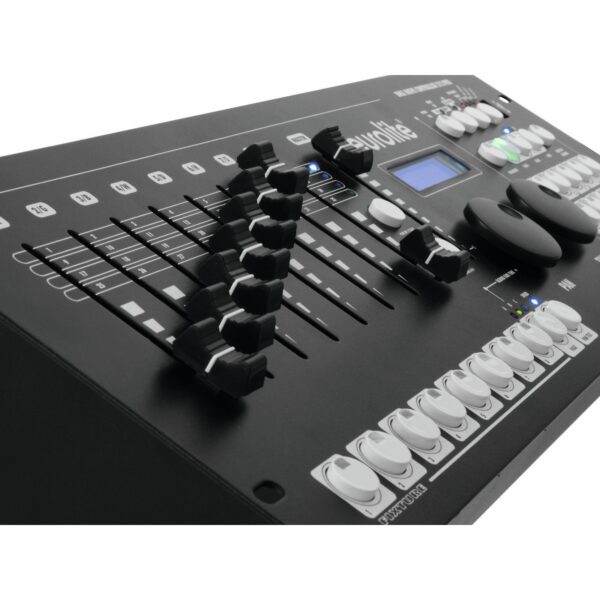

• 8 motorized DMX channel faders for user-friendly control
• The motor faders provide a precise overview of the parameters when switching the individual banks, chases and scenes

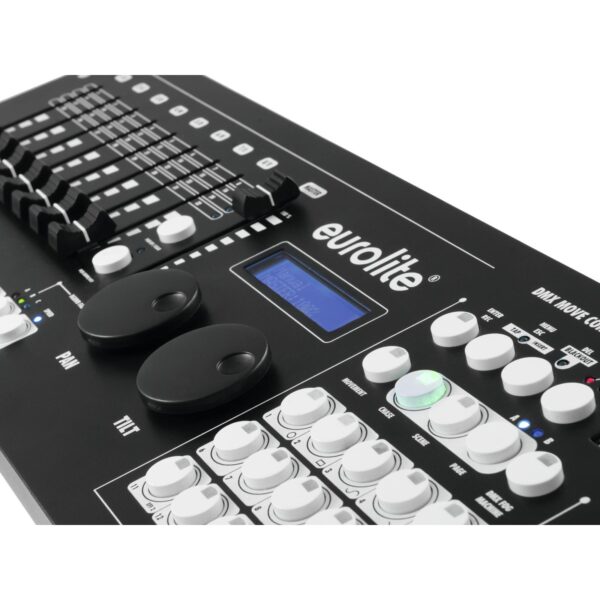

• 2 jog wheels for pan/tilt
• Master fader for color and dimmer channels
• Blackout function
• Color-illuminated buttons provide easy orientation
• Sound control via built-in microphone
• Backlit LCD (2 x 16 characters)
• RDM support (DMX address setup and identify)
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Rack installation with 4 units
