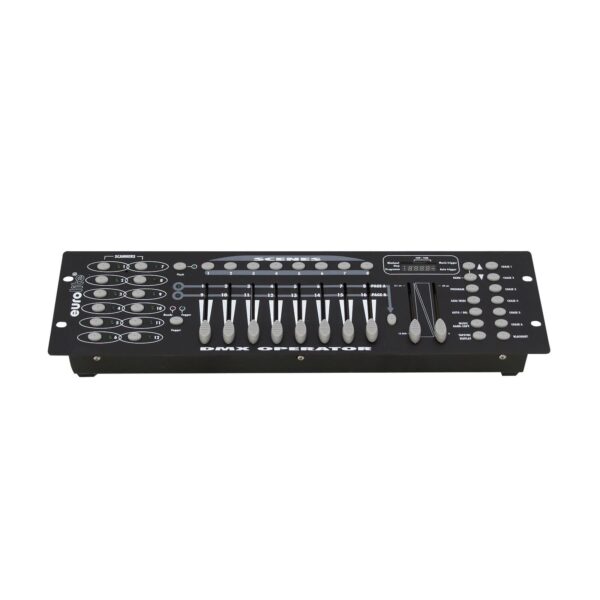

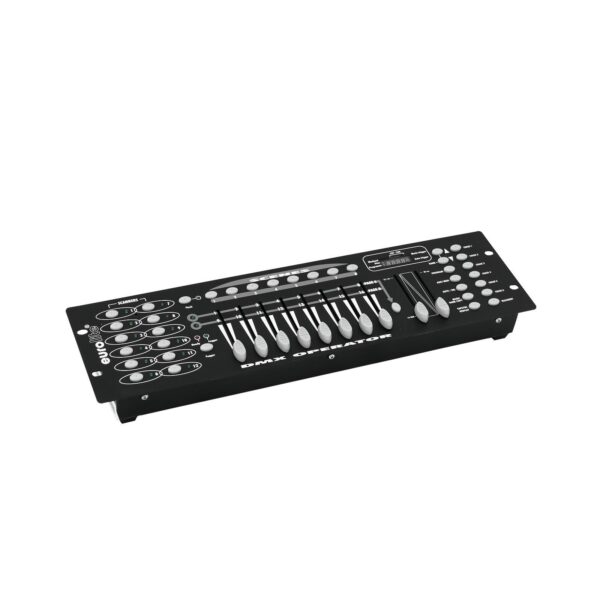

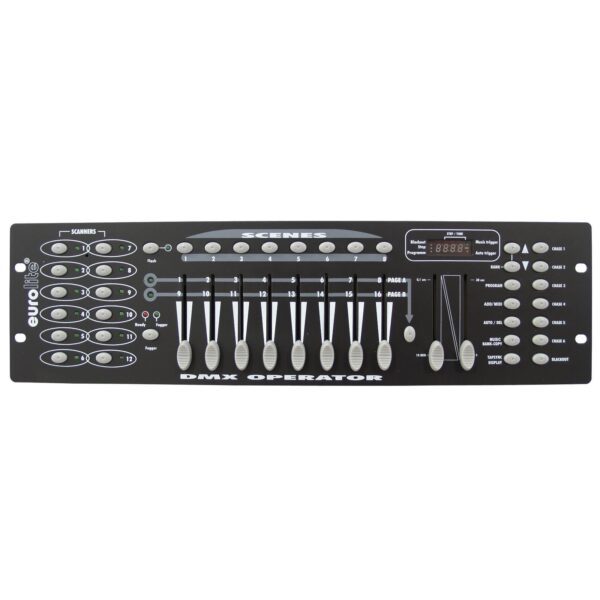

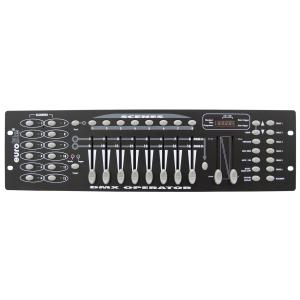

Compact DMX controller
- 192 control channels for 12 lighting effect devices with up to 16 channels
- 6 chasers with up to 240 scenes can be programmed
- 8 preset scenes
- Copy function for the scenes, programs and records
- Blackout function
- Sound control via built-in microphone
- Rack installation with 3 units
Power supply: | 230 V AC, 50 Hz |

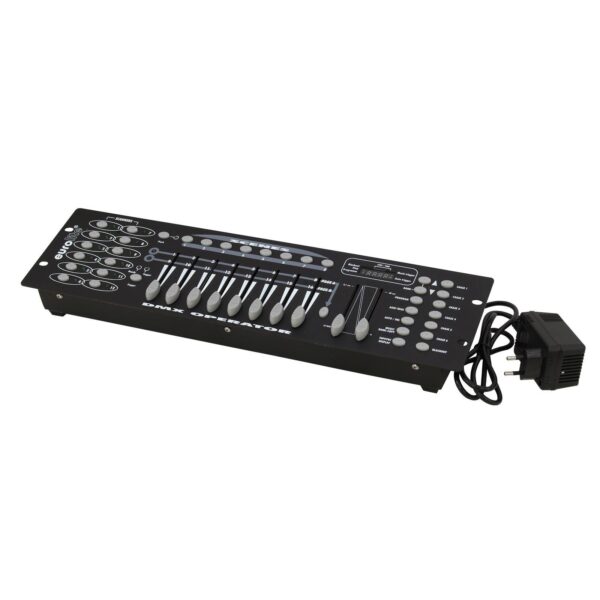

via 9-12 V DC, 300 mA power unit included in the delivery | |
Power consumption: | 4 W |
Number of control channels: | 192 |
Sound-control: | via built-in microphone |

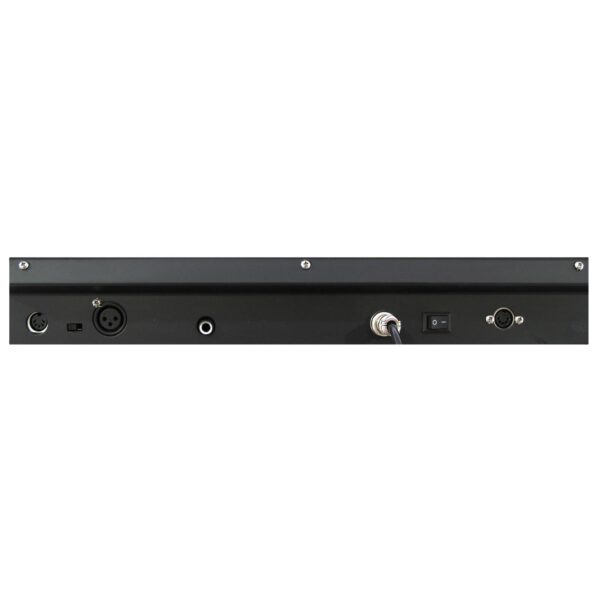

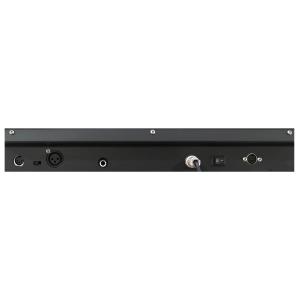

DMX512 output: | 3-pin XLR connector |
Free chasers: | 6 x 240 scenes |
Dimensions (L x W x H): | 483 x 132 x 80 mm |
Rack installation with 3 u | |
Minimum mounting depth: | 170 mm |
Weight: | 2.5 kg |
