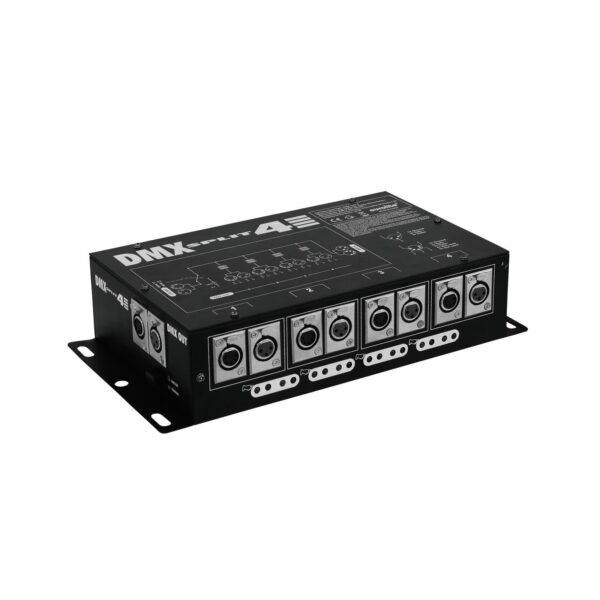

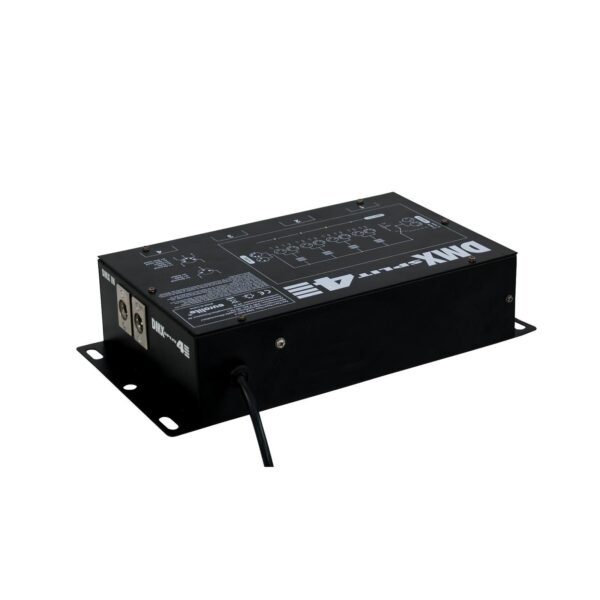

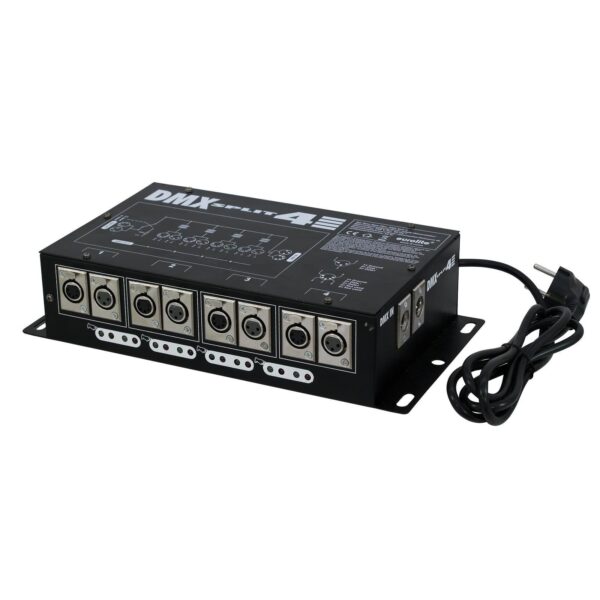

4-fold DMX splitter
- DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Connections: 1 x DMX input, 1 x DMX feed-through output, 4 x DMX output
- Input and outputs galvanically isolated
- Connections XLR 3-pin and 5-pin
- Each DMX output with independent driver and status indicators
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 20 W |
DMX connection: | 3-pin or 5-pin XLR |
Dimensions (L x W x H): | 325 x 190 x 80 mm |
Weight: | 3 kg |
