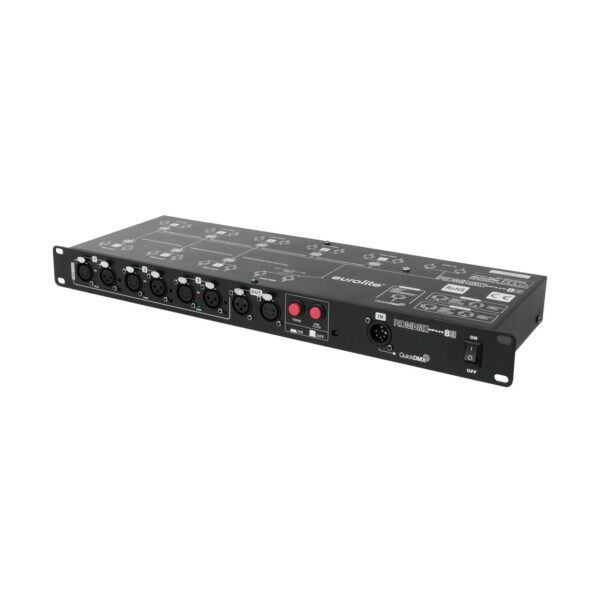

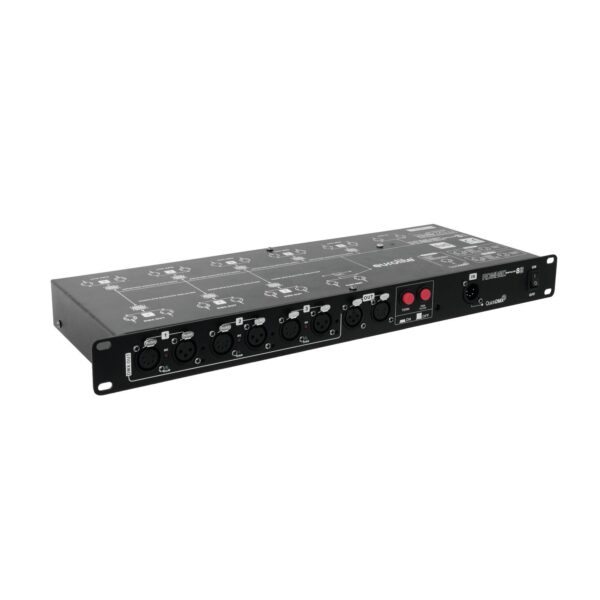

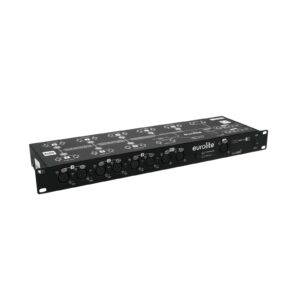

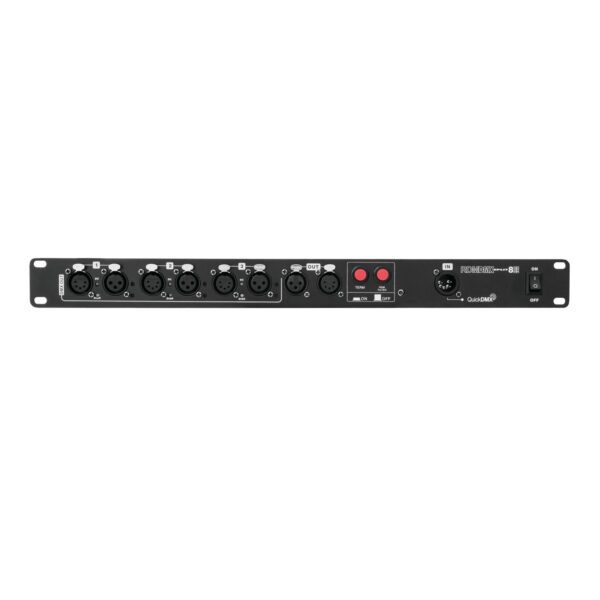

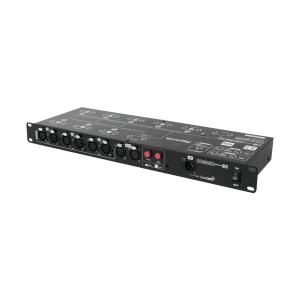

8-fold DMX splitter with RDM support
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
- Additional QuickDMX input for wireless reception of DMX signals
- Supports RDM for bidirectional communication over the DMX line
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Input and outputs XLR 3-pin and 5-pin each
- Input and outputs galvanically isolated
- Each DMX output with independent driver and status indicators
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
- Rack mounting
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 5 W |
DMX connection: | 3-pin and 5-pin XLR |
QuickDMX connection: | 5-pin XLR |
Dimensions (L x W x H): | 483 x 145 x 45 mm |
Weight: | 2.5 kg |
