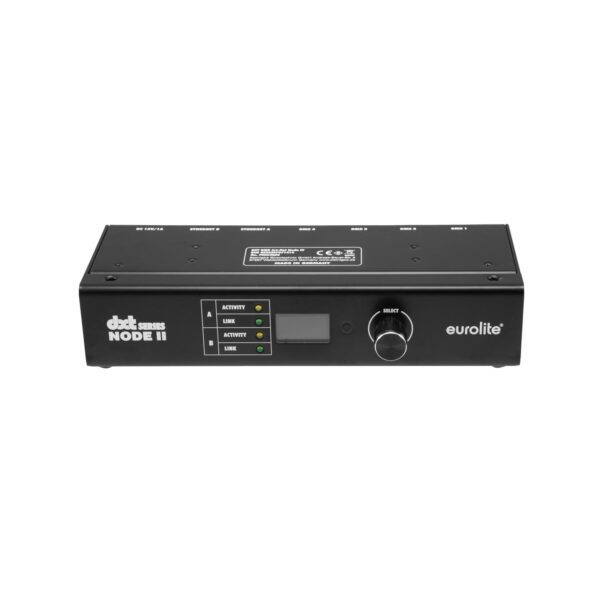

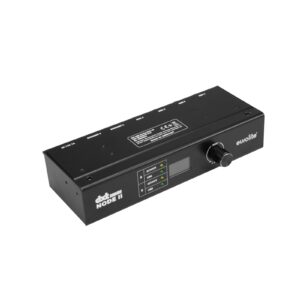

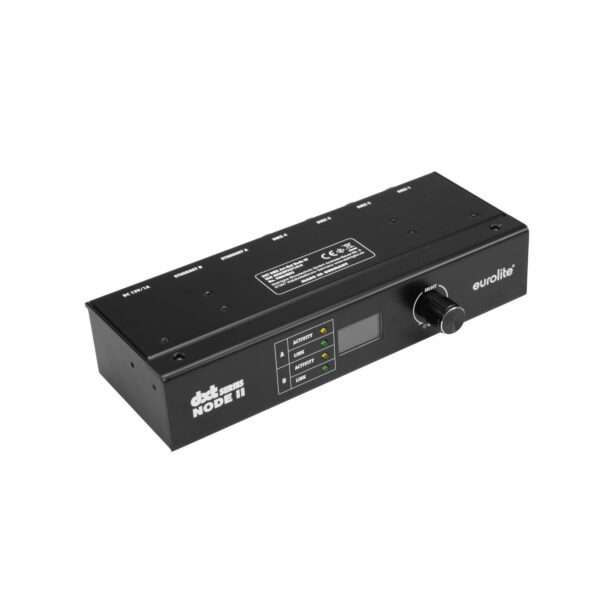

EUROLITE DXT DMX Pixel Art-Net Node II

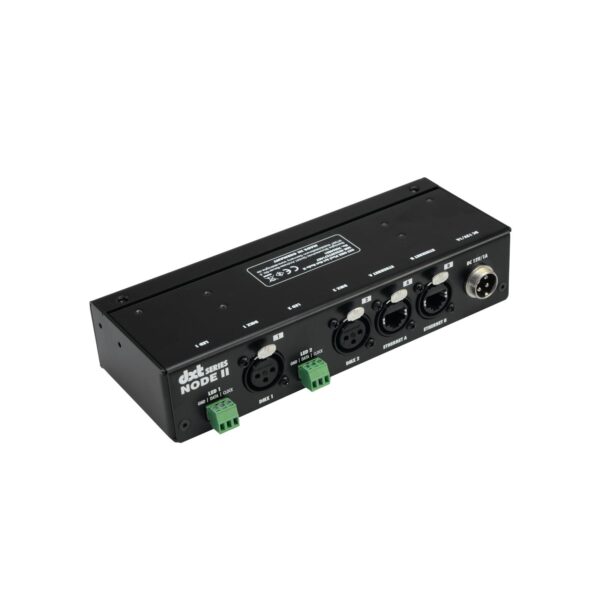

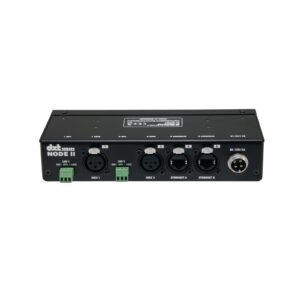

The DXT DMX Pixel Art-Net Node II is part of Eurolite’s DXT series, which consists of high-performance and reliable DMX tools made in Germany. The Node II features two channels that can output either up to 512 DMX channels each or control up to 512 digital LED pixel channels. It provides two Neutrik XLR and 2 etherCON connectors, as well as two 4-pin removable terminals. The second etherCON connector enables daisy-chaining of the network connection with multiple devices. The device can be configured with an integrated OLED display, via Art-Net or with a website.

Art-Net interface for control of 1024 digital LED channels or DMX channels

• 2 x 3-pin DMX output
• 2 x 3-pin output for digital LED strips
• 2 etherCON network connections
• Up to 1024 DMX channel output
• Up to 1024 digital LED channel output

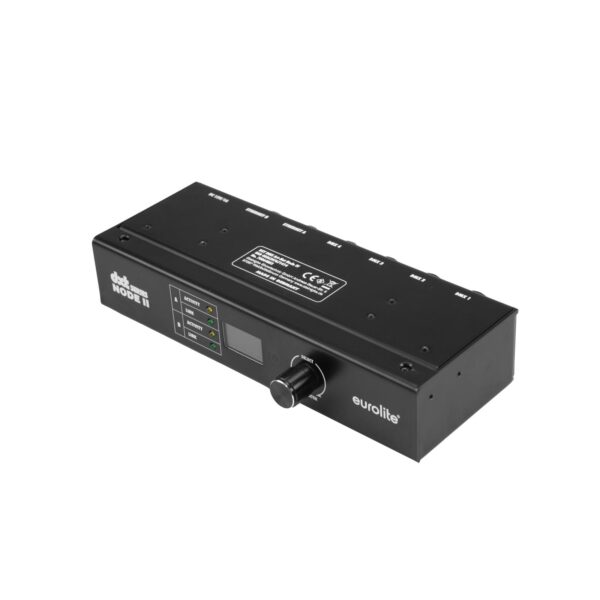

• OLED display with rotary encoder
• Link and activity LED for each network port
• Supported by all applications with Art-Net output
• ArtDMX reception via Broadcast or Unicast
• Configuration with OLED display, website or Art-Net
• Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe
• DMX refresh rate: 40 Hz or 20 Hz
• LED types: WS2801, WS2811, WS2812,…(all common 800 kHz types)
• Powered via included 12V PSU

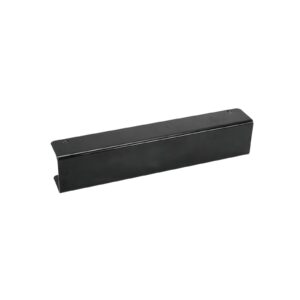

• Rack or truss installation via optional accessories
• Can transmit up to 1024 DMX channels
• Controlling by ArtNet
• The device can be connected via RJ-45 (F) mounting version to the PC
• Desktop console housing 1 U; (19″) 48.3 cm rack installation (optional)
• Made in Germany
