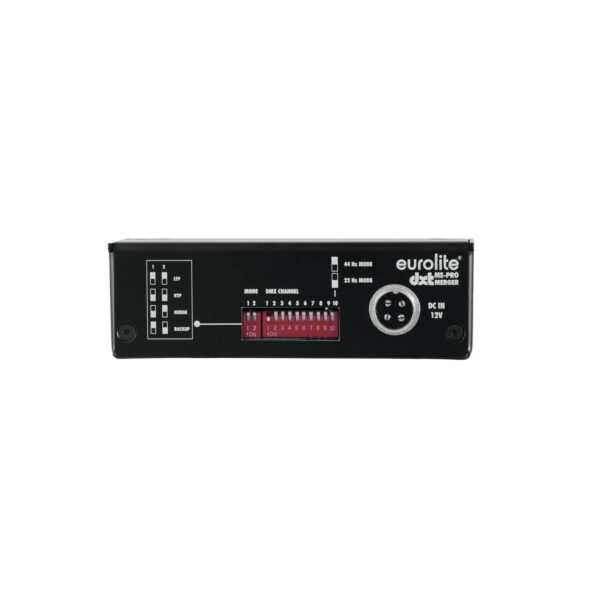

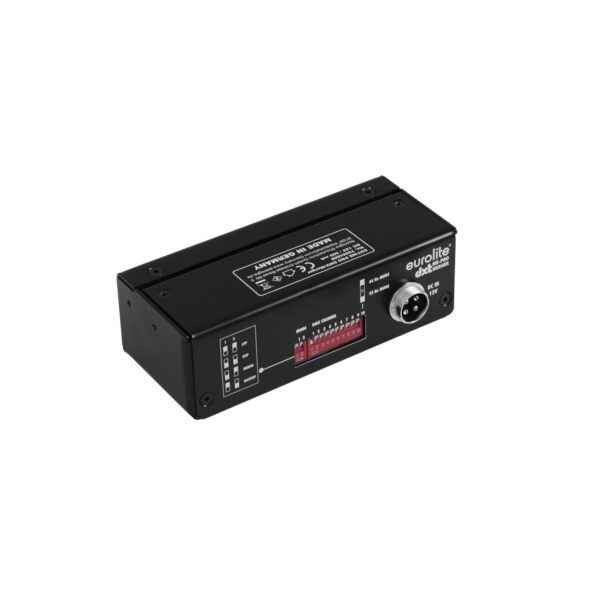

Pro DMX merger, 2in1
- Pro DMX merger with 2 DMX inputs and 1 DMX output
- Enables two separate consoles to control one DMX system
- Compact version with rugged metal body for use on stage
- DMX modes: LTP, HTP, merge or backup
- Input B can be set to a start address (offset)
- LED indicator for valid DMX signals
- Selectable output frequency 22 Hz/44 Hz
- Steady DMX output
- 3-pin XLR connectors (Neutrik)

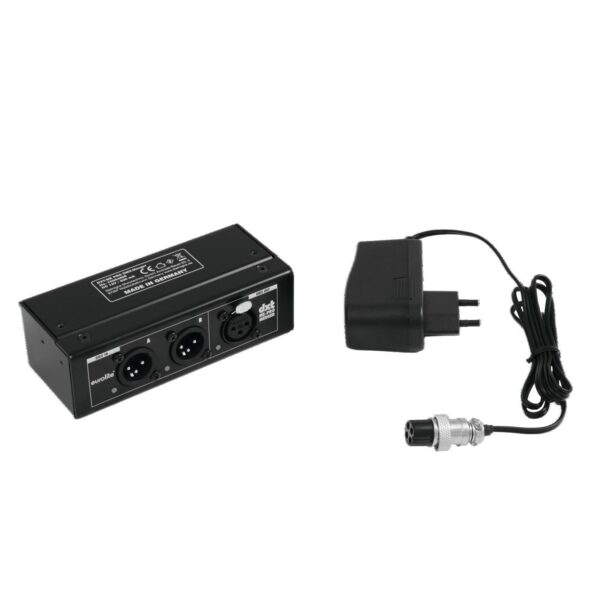

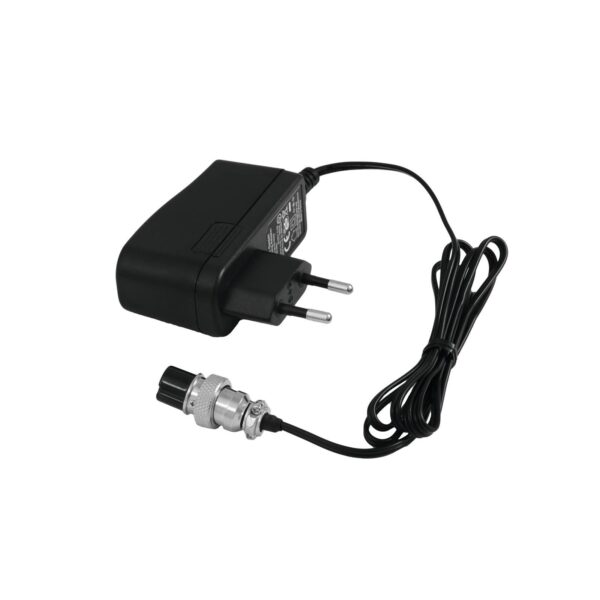

- Powered via included PSU
- Rack installation via optional rack mounting kit (item 70064872)
- Made in Germany
Power supply: | 12 V DC, 1 A via included PSU |
Power consumption: | <1 W |
DMX512 output: | 3-pin XLR connector (Neutrik) |
DMX512 input: | 2 x 3-pin XLR plug (Neutrik) |
Dimensions (L x W x H): | 130 x 70 x 41 mm |
Weight: | 400 g |
