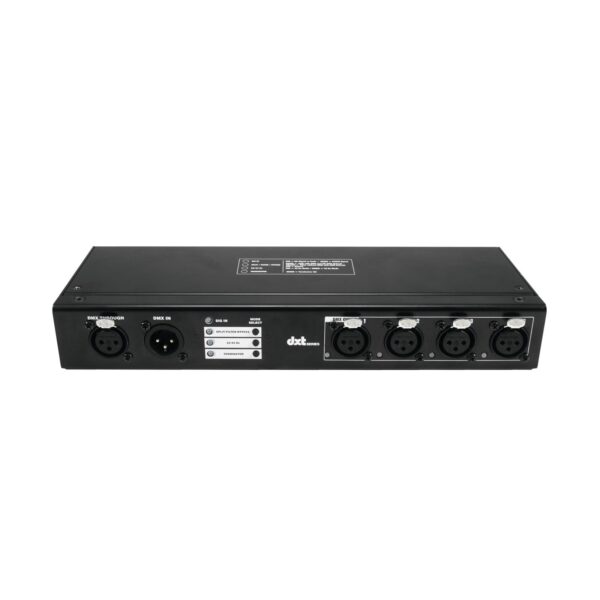

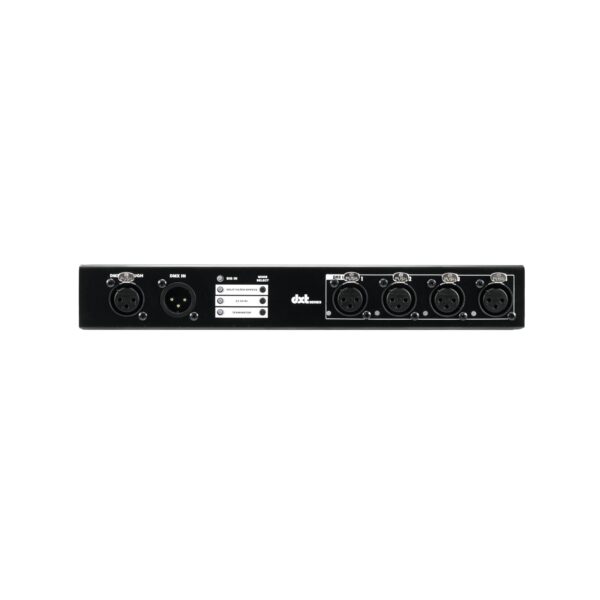

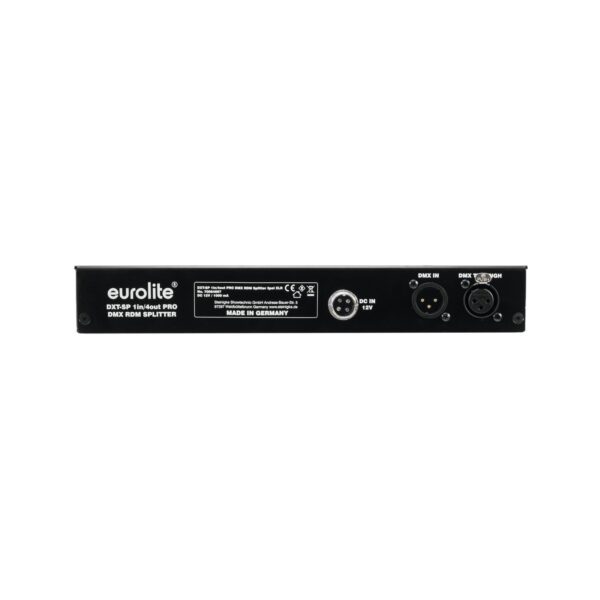

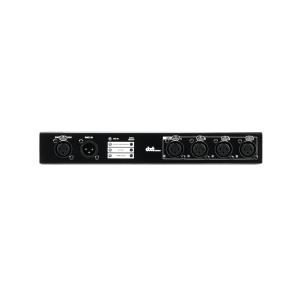

EUROLITE DXT-SP 1in/4out PRO DMX RDM Splitter

RDM-capable DMX splitter, 1 in/4 out with signal boost

• DMX splitter for splitting one DMX input signal to 4 DMX outputs
• Connections: 2 x DMX input (parallel), 1 x DMX feed-through output (parallel), 4 x DMX output
• Input and feed-through output are duplicated on the front and rear panel and connected in parallel
• Supports RDM for bidirectional communication over the DMX line
• Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
• Bypass function to process signals from older devices similar to DMX signals
• Output frequency adjustable: 22/44 Hz
• DMX fail mode selectable: hold, blackout, null
• Switchable termination resistor
• Input and outputs XLR 3-pin (Neutrik)
• Outputs galvanically isolated
• Each DMX output with independent driver and status indicator
• Each DMX output can be connected to 32 DMX devices
• Powered via included PSU
• Rack installation via optional rack mounting kit (item 70064872)
• Made in Germany
