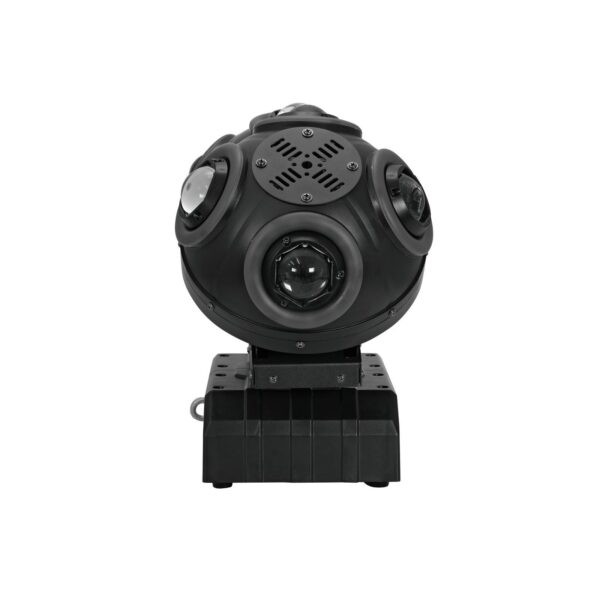

LED beam effect with RGBW color mixing and 8 RGB hypno rings
- 8 powerful LEDs 10 W SMD 4in1 QCL RGBW
- 96 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB
- Dimmer electronic; color change; color fade; color blend; Rotation speed; Rotation direction
- Multi beam effect
- 2 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); Master/slave function; Sound to light via Microphone
- Fuzzy sound control: program continues automatically during periods without music or bass-beat
- Flicker-free
- With Omega bracket; with Holder for wall mounting
- 4 digit 7-segment LED display
- Application possibility: Standing; suspended
- Preprogrammed in Light Captain
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Party room; mobile djs / entertainer; restaurants, bars and hotels
Package contents
- 1 x device, 1 x power cord, 2 x omega bracket, 1 x user manual, 2 x screw
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 100 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug |
Fuse: | 5 x 20 mm, T 3,15 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 8 x 10 W SMD 4in1 QCL RGBW 96 x 0,2 W SMD 5050 3in1 TCL RGB |
Max. PAN movement: | 540° |
Speed: | Forward/backward |
Flash rate: | 0 – 20 Hz |
DMX channels: | 17; 24 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); Master/slave function; Sound to light via Microphone |
Preprogrammed in: | Light Captain |
Projection: | Flicker-free |
Illuminance in Lux (lx): | Red (R) 1m: 4812 lx, 3m: 1146 lx, 6m: 271 lx Green (G) 1m: 8250 lx, 3m: 2434 lx, 6m: 723 lx Blue (B) 1m: 3015 lx, 3m: 604 lx, 6m: 153 lx Cold white (CW) 1m: 14513 lx, 3m: 3918 lx, 6m: 817 lx |
Housing color: | Black |
Attachment system: | Omega bracket Holder for wall mounting |
Display type: | 4 digit 7-segment LED display |
Diameter mounting holes: | 4 x Ø5mm |
Dimensions: | Width: 40,0 cm Depth: 21,0 cm Height: 32,0 cm |
Weight: | 5,00 kg |
Noise classification: | Class 2 (slight noise) |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
