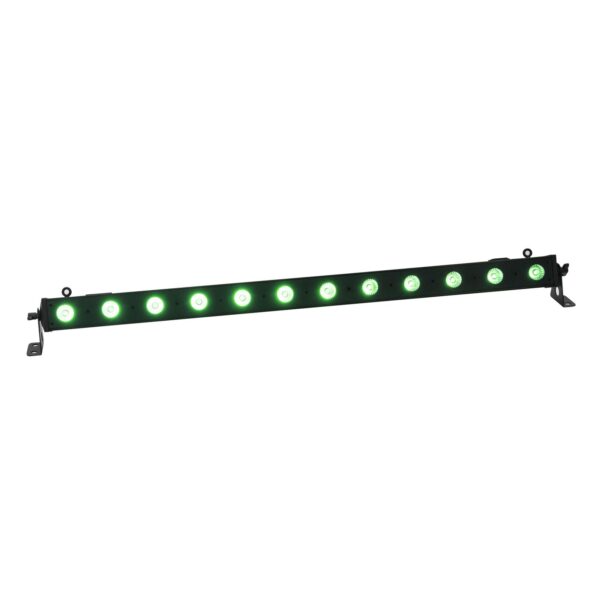

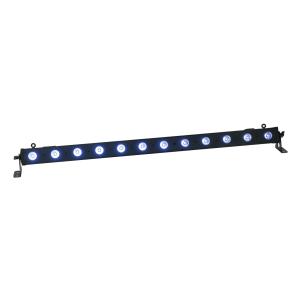

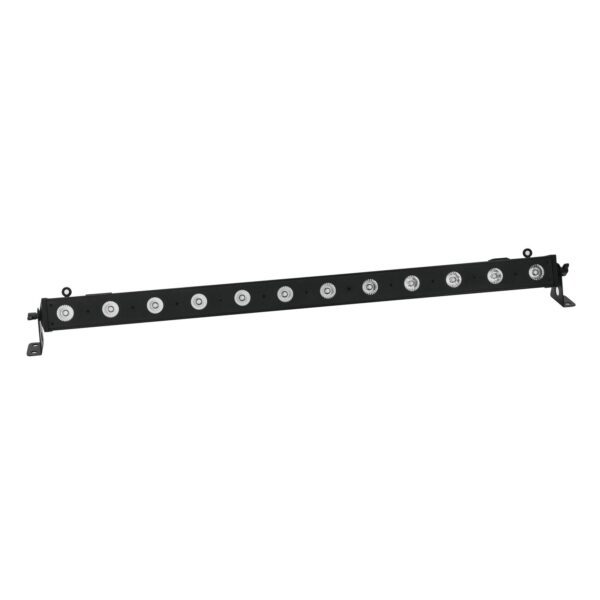

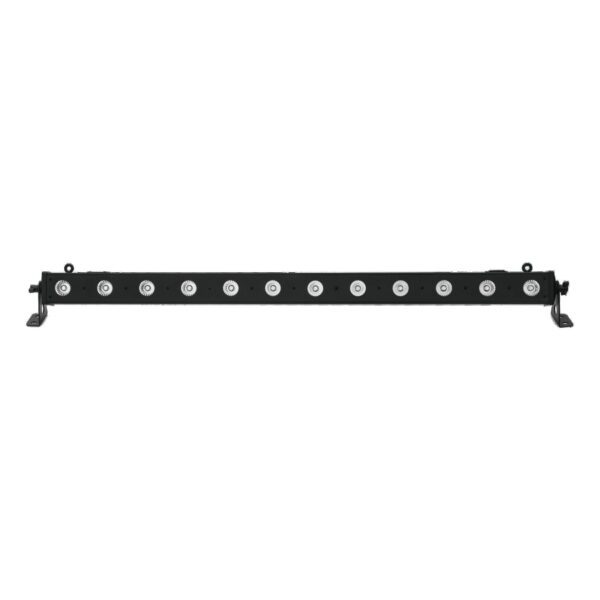

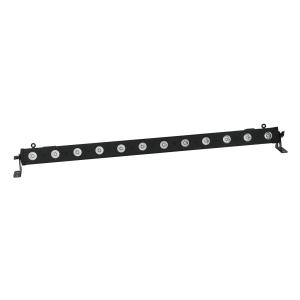

Light bar with 12 x 4 W QCL LED
- Operable in stand-alone mode or via DMX
- DMX512 control possible via any commercial DMX controller (occupies max. 9 channels)
- 2, 4, 5, 6, or 9 DMX channels selectable
- Sound-control via built-in microphone
- Microphone sensitivity adjustable via Control Board
- Comfortable addressing and setting via control board with LED display and four operating buttons
- Functions: Static colors, RGBA color blend, color temperature settings, internal programs, dimmer and strobe settings, Master/Slave
- Equipped with 12 x 4 W QCL LED in the colors red, green, blue and amber
- Hanging as well as standing installation possible
- Locking possibility at the mounting bracket
- Flicker-free projection
- Feed-through output allows to power up to 8 devices
- Switch-mode power supply for operation between 100 and 240 volts
- Ready for connection via enclosed IEC power cord with safety-plug
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 24 W |
DMX channels: | 2/4/5/6/9 |
DMX connection: | 3-pin XLR |
Sound-control: | via built-in microphone |
Flashrate: | 20 Hz |
Type of LED: | 4 W QCL (RGBA) |
LED number: | 12 |
Beam angle: | 17° |
Dimensions (L x W x H): | 1085 x 65 x 100 mm |
Weight: | 3.2 kg |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
