EUROLITE LED BAR-12 QCL RGB+UV Bar
Light effect bar (1 m) with RGB+UV color mixing
- 12 high-power 4 W RGB+UV LEDs (4in1)
- Built-in auto and music show programs
- Direct color selection for 20 preset colors
- Stepless RGB+UV color blend, color change, color fade, dimmer and strobe effect
- Addressing and setting via control panel with 4-digit LED display
- Supports QuickDMX – the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Swivel mounting bracket
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 12 x high-power 4 W 4in1 QCL RGB/UV (homogenous color mix)
- Can be operated in 2; 4; 5; 6; 9 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; DMX; Sound to light via Microphone; Master/slave function
- Is in Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW already preprogrammed
- Flicker-free projection
- Effect: Strobe effect; UV

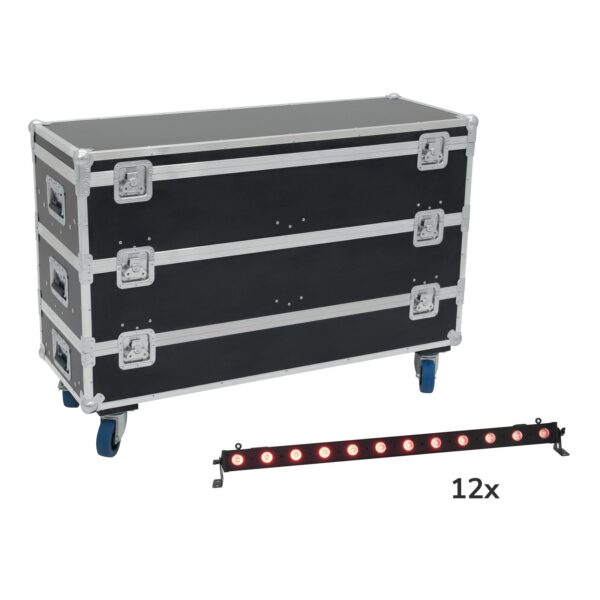

ROADINGER Flightcase 12x LED Bar Size L
PRO flightcase for 12 x LED bar
- Modular flightcase for LED bars approx. 1 meter in length
- 3 stackable units accommodate 4 LED bars each
- Bottom unit with 4 castors, 2 of which with locking brakes
- Removable cover
- Designed for LED bar LED BAR-18 (51930411) and comparable models
- High-quality workmanship with multiplex birch wood, dark brown laminated
- Interior upholstered with foam
- Aluminum profile frames (20 mm) with rounded edges
- Three-leg, large steel ball corners
- 12 high-quality butterfly locks
- 6 case handles
- Transport aid: With wheels
- Made in Europe
Weight: | 74,40 kg |
EUROLITE LED BAR-12 QCL RGB+UV Bar | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 25 W |
IP classification: | IP20 |
Protection class: | Class I |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Power output: | 1 x IEC connector (F) mounting version |
Lamp type: | LED lamp |
LED: | 12 x high-power 4 W 4in1 QCL RGB/UV (homogenous color mix) |
Flash rate: | 0 – 20 Hz |
DMX channels: | 2; 4; 5; 6; 9 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Passive convection |
Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW |
Beam angle: | 20° |
Beam angle (1/2 peak): | 20° |
Beam angle (1/10 peak): | 33° |
Housing color: | Black |
Display type: | 4 digits 7-segment LED display |
Dimensions: | Length: 1,07 m Depth: 6,5 cm Height: 10,3 cm |
Weight: | 2,85 kg |
Noise classification: | Class 0 (no noise at all) |
Legal specifications | |
Ecodesign regulation: | yes |
Special product: | Not designed for household room illumination |
intended use: | show effect lighting |
ROADINGER Flightcase 12x LED Bar Size L | |
Maximum load: | 150 kg |
Material: | Birch multiplex, 7 mm |
Color: | Dark brown, laminated |
Compartment dimensions: | 1,13 m x 8,5 cm x 9 cm |
Inside dimensions: | 1,13 m x 40,5 cm x 16 cm |
Dimensions: | Width: 1,19 m Depth: 44 cm Height: 84 cm |
Weight: | 34,70 kg |
