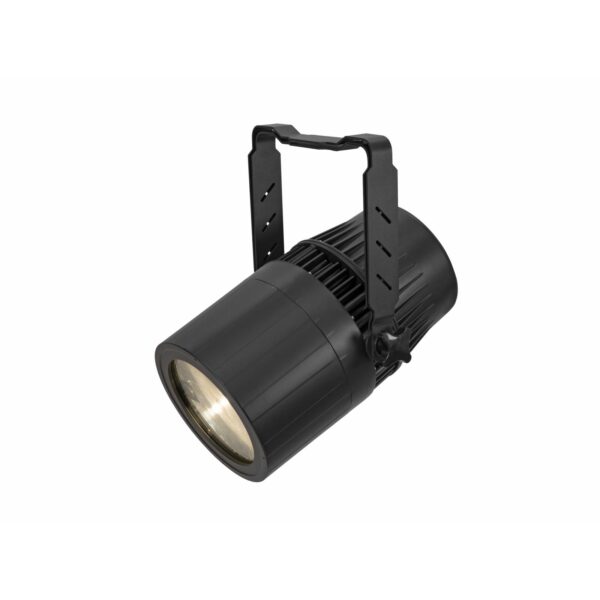

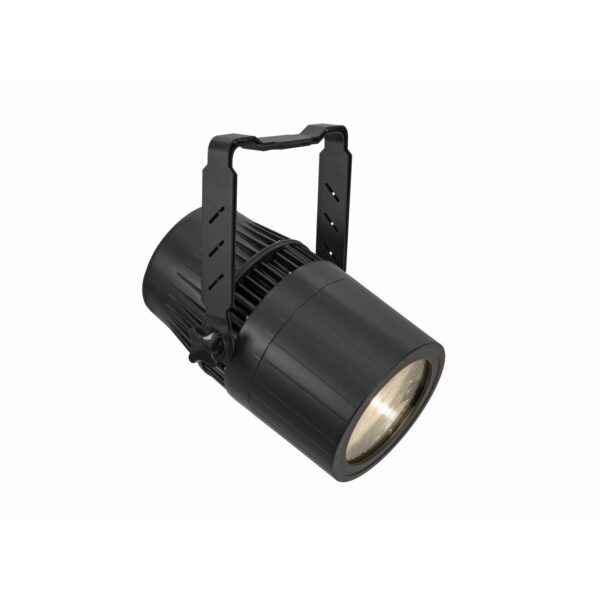

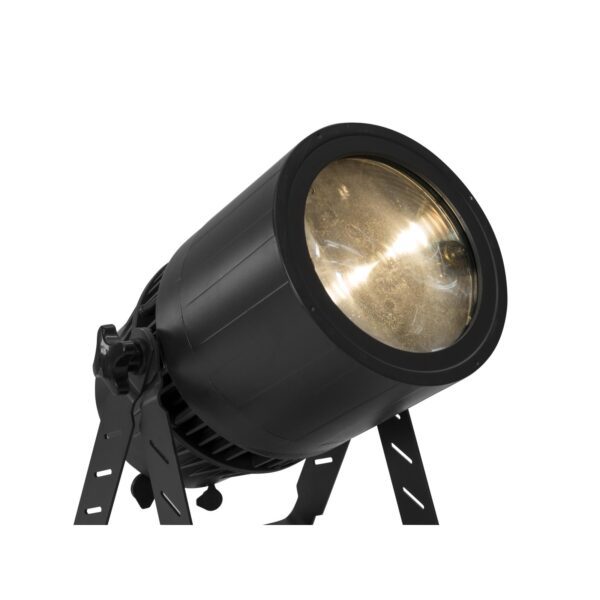

Weather-proof PAR spot, IP65, with warm white 100 W COB LED and motorized zoom
- Light performance comparable to a traditional 1000 W halogen spot light
- Color temperature 3000 K
- Homogeneous light distribution
- Various dimmer curves with adjustable response
- Strobe effect 0-20 Hz
- Variable PWM frequency (pulse-width modulation)
- Gamma correction adjustable
- Mains input and output for power linking up to 8 units
- 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
- Can be operated in 1; 2; 3; 4 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by DMX; stand-alone; Master/slave function
- Preprogrammed in Light´J; Light Captain
- Flicker-free projection
- Effect: Strobe effect
- With a beam angle of 7 – 53°
- Very high color rendering index (CRI)
- With Mounting bracket
- With double bracket
- 4 digits 7-segment LED display for easy controlling
- Suitable for outdoor use
- For application areas such as: Theater
Package contents
- 1 x Device, 1 x User manual, 1 x Power cord, 1 x XLR cable, 1 x Mounting bracket, 2 x Knurled screw, 4 x Washers
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 120 W |
IP classification: | IP65 |
Protection class: | Class I |
Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
Power output: | IP T-Con (F) mounting version |
Fuse: | T 6,3 A Fuse fix in power supply |
Lamp type: | LED lamp |
LED: | 1 x 100 W COB (chip-on-board) warm white (WW) |
Color temperature: | 3000K |
Flash rate: | 0 – 20 Hz |
Equipment: | Zoom motor-driven |
DMX channels: | 1; 2; 3; 4 |
DMX input: | 3-pin XLR (M) mounting version IP |
DMX output: | 3-pin XLR (F) mounting version IP |
Cooling: | Temperature-controlled fan |
Control: | DMX; stand-alone; Master/slave function; Light´J; Light Captain |
Beam angle: | 7 – 53° |
Beam angle (1/2 peak): | 7 – 36° |
Beam angle (1/10 peak): | 9 – 53° |
Color rendering index (CRI) more than: | 90 Ra |
Housing color: | Black |
Attachment system: | Mounting bracket Double bracket |

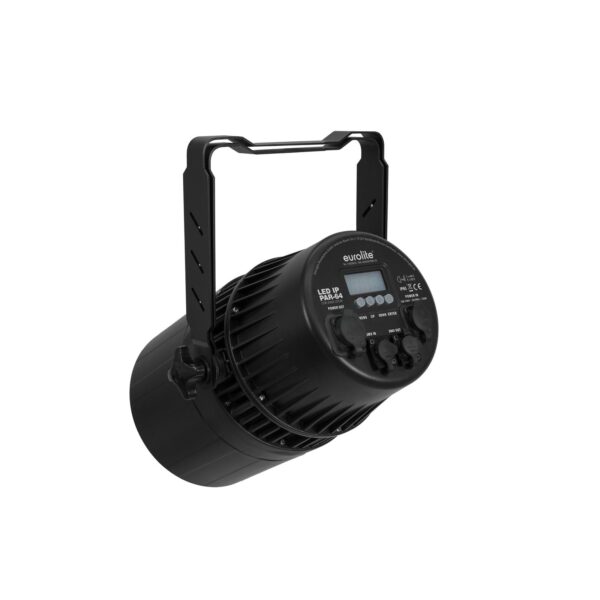

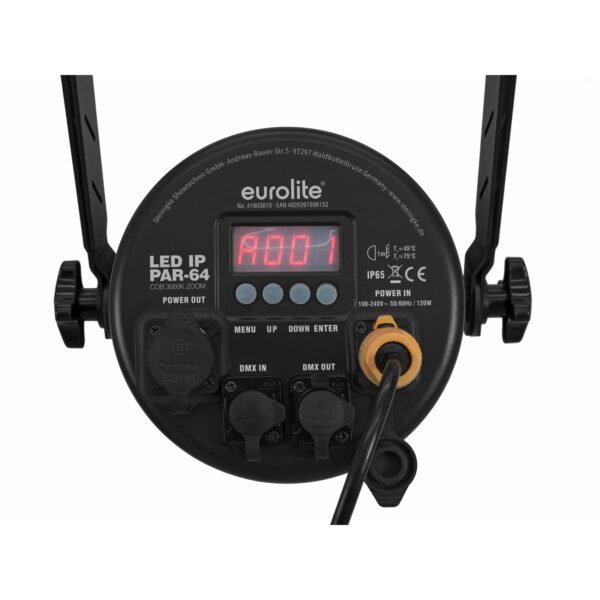

Display type: | 4 digits 7-segment LED display |
Dimensions: | Length: 36 cm Width: 29 cm Height: 35 cm |
Weight: | 8,40 kg |
Noise classification: | Class 2 (slight noise) |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
