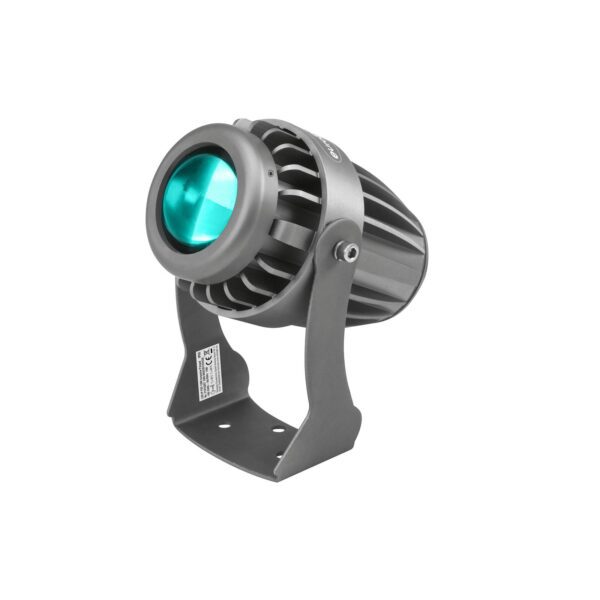

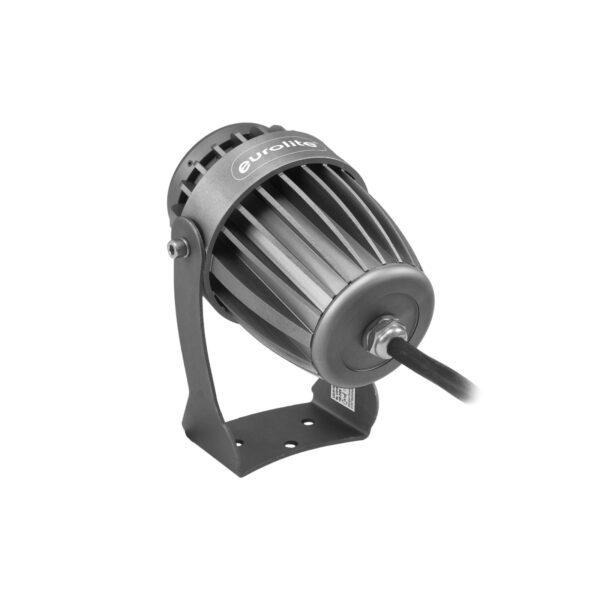

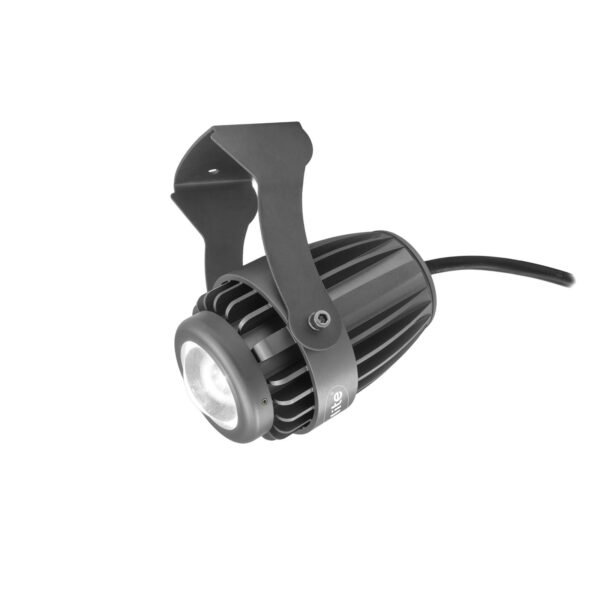

Weather-proof pinspot (IP65) with strong 10 W LED
- Compact aluminum housing
- 1 powerful LED 10 W high-power turquoise
- The device is cooled by passive convection cooling
- Controlling by plug and play
- Effect: Single Beam
- With Mounting bracket
- Suitable for outdoor use IP65
Package contents
- 1 x spotlight, 1 x mounting bracket, 1 x user manual
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 10 W |
IP classification: | IP65 |
Protection class: | Class I |

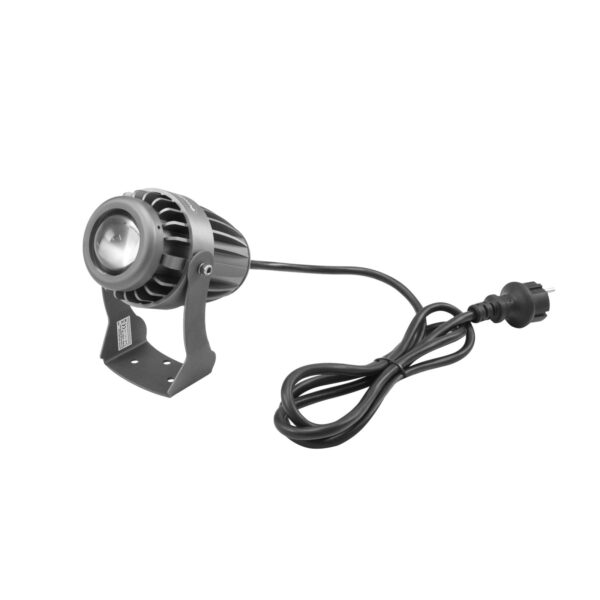

Power connection: | Fixed power supply cord with safety plug |
Cable construction: | 3 x 1,0 mm² H05RN-F |
Cable length: | Approx. 0,9 m |
Lamp type: | LED lamp |
LED: | 1 x 10 W high-power turquoise |
Cooling: | Passive convection cooling |
Control: | Plug and play |
Beam angle (1/2 peak): | 4° |
Beam angle (1/10 peak): | 6° |
Illuminance in Lux (lx): | 1m: 24366 lx, 3m: 2317 lx, 6m: 555 lx |
Housing color: | Grey |
Attachment system: | Mounting bracket |
Material: | Metal |
Dimensions: | Width: 10,5 cm Depth: 15 cm Height: 14,7 cm |
Weight: | 730 g |
Mounting bracket | |
Diameter mounting holes: | 3 x Ø6mm |
Material: | Metal, 2 mm |
