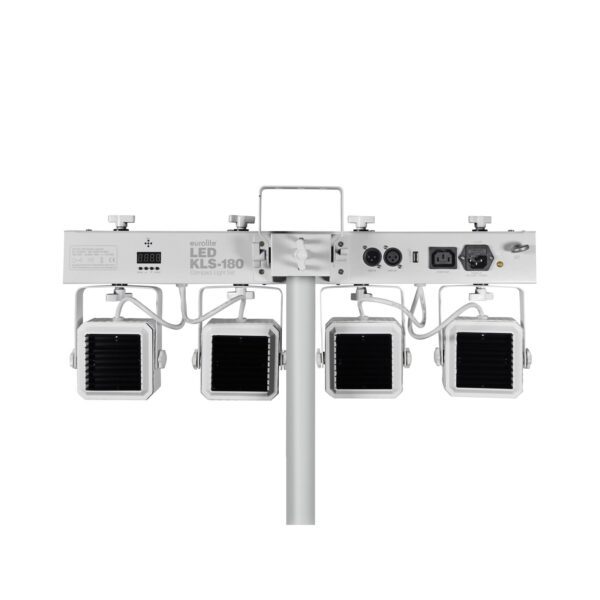

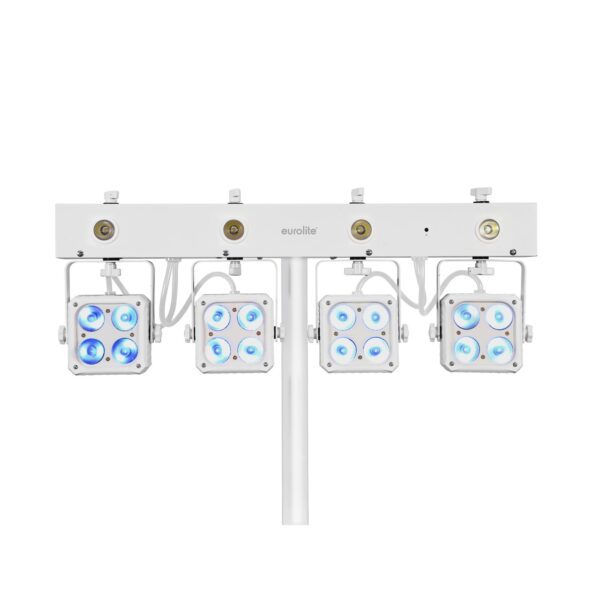

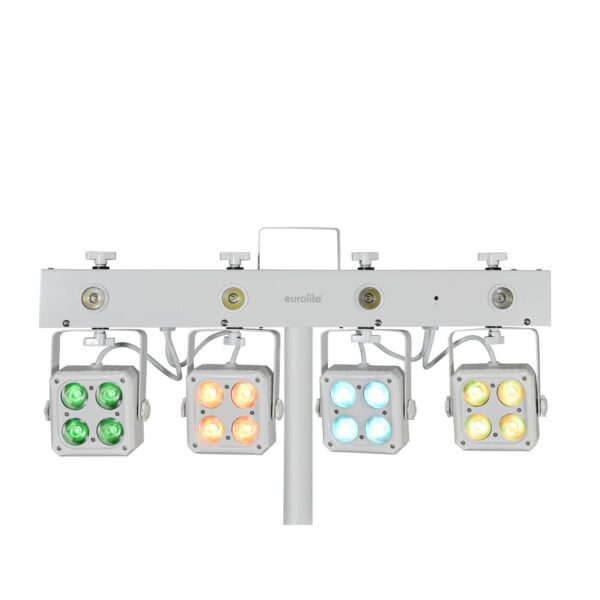

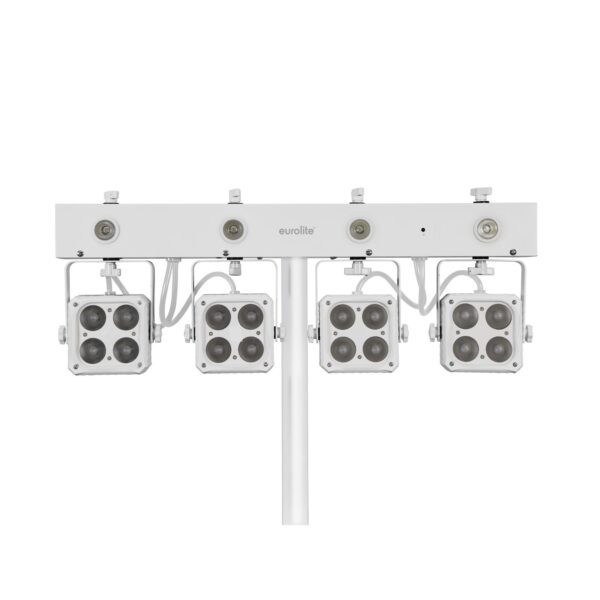

Bar with 4 RGBW spots and 4 white strobe LEDs, with QuickDMX connector (XLR)
- Crossbar with integrated DMX control unit and stand sleeve
- Ultra-light ideally suited for mobile use
- Ideal for bands, stages or solo entertainers
- Suited for installation on a speaker stand (not included) or truss
- Comes pre-assembled with practical transport bag
- 4 powerful 4in1 LEDs per spot provide for an exquisite RGBW color mix
- Strobe effect with 4 white 1 W LEDs
- Movable and tiltable spotlights
- Via DMX, each spot can be individually controlled
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Supports QuickDMX – the wireless DMX-system from Eurolite
- Built-in phantom fed socket for QuickDMX receiver (see accessories)
- Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, Master/Slave operation
- Addressing and setting via control panel with 4-digit LED display

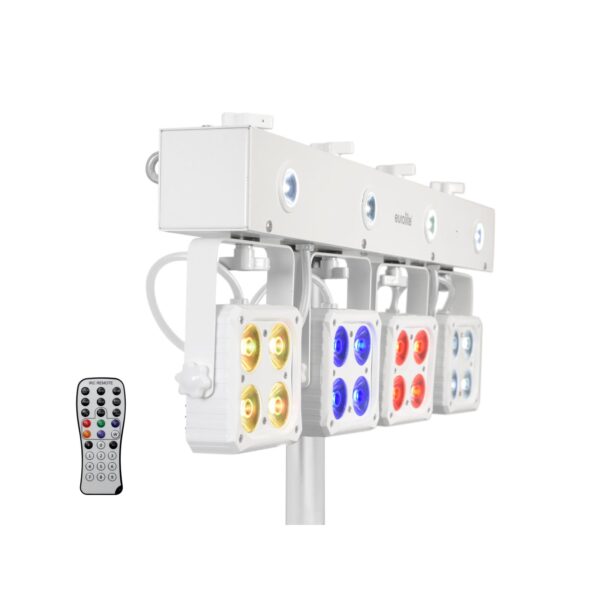

- Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
- White lacquered metal version with movable mounting bracket
- IEC terminals for power linking up to 8 units
- LED: Spot separate controlling 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
- LED: Strobe effect 4 x high-power 1 W CW
- Can be operated in 3; 4; 8; 21 CH mode
- The device is cooled by passive convection
- Controlling by IR remote control (provided); Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional)
- Is in EASY SHOW; EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- For application areas such as: Wedding/gala
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 80 W |
IP classification: | IP20 |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Power output: | IEC connector (F) mounting version |
Fuse: | T 1 A |
Lamp type: | LED lamp |
LED: | Spot 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) Strobe effect 4 x high-power 1 W CW |
Flash rate: | 1 – 20 Hz |
DMX channels: | 3; 4; 8; 21 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Passive convection |
Control: | IR remote control (provided); Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); EASY SHOW; EUROLITE LED PC-Control 512 software |
Beam angle: | 9° |
Beam angle (1/2 peak): | 9° |
Housing color: | White |
Dimension: | Width: 60.5 cm Depth: 14 cm Height: 23 cm |
Weight: | 5.10 kg |
Noise classification: | Class 0 (no noise at all) |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
Legal specifications | |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
