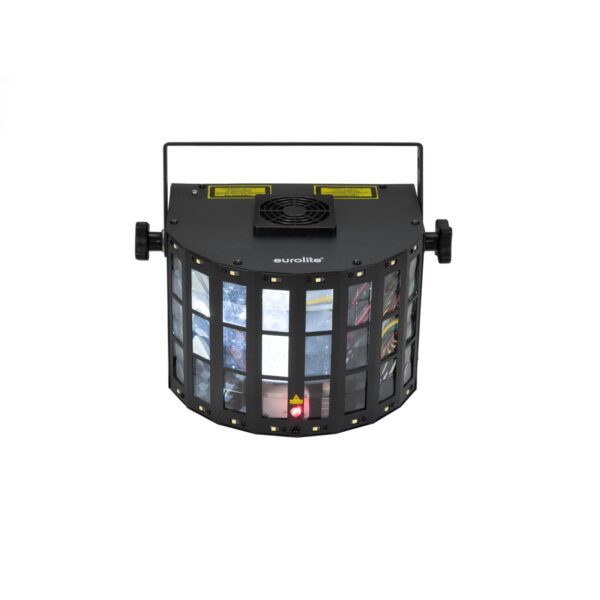

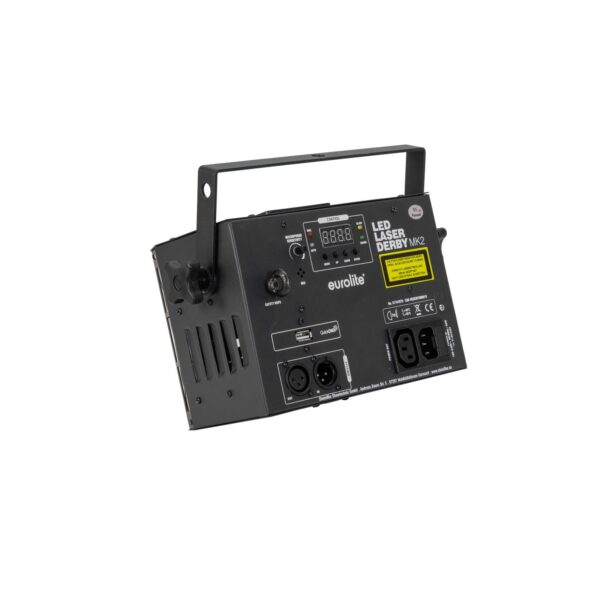

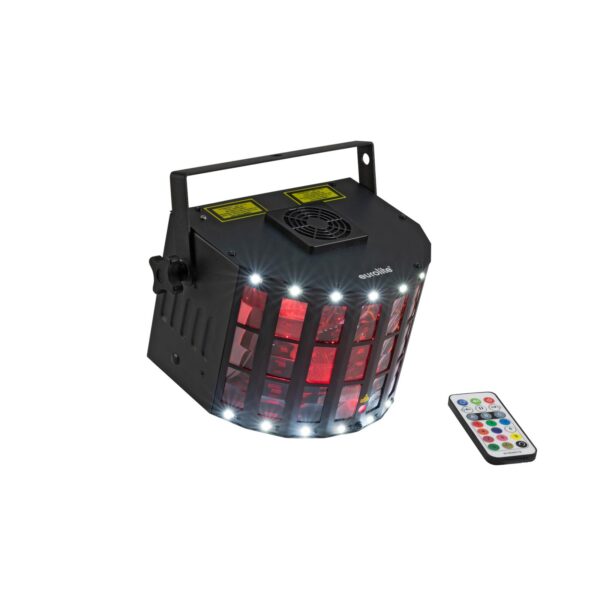

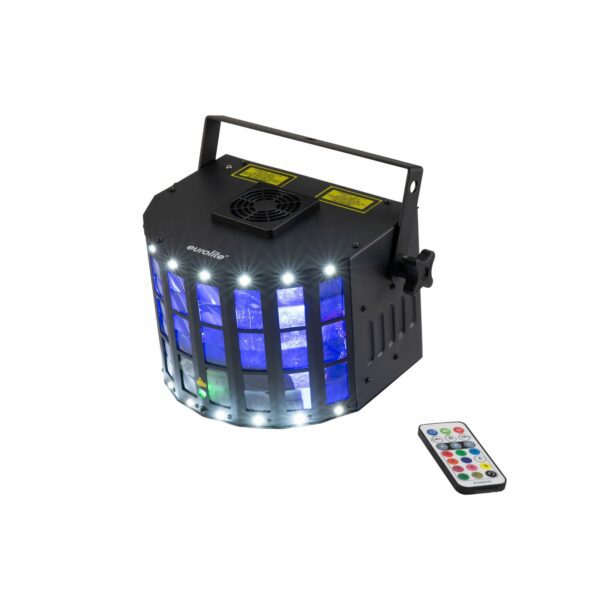

DMX light effect with RG laser (2M), rotating LED derby, stroboscope and IR remote control
- Four high-power 10 W LEDs in red, green, blue and white for dynamic mirror ball effects
- 16 cold white 0.6 W SMD LEDs for fast, dynamic strobe effects
- 2 laser diodes project thousands of red and green laser beams
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- Auto, music, master/slave and DMX mode
- 7 built-in auto and music show programs
- RGBW color effects, dimmer and strobe effects
- Rotation speed variably adjustable
- Sound-control via built-in microphone with adjustable microphone sensitivity
- DMX512 control possible via any commercial DMX controller
- 2,4,5,6,7,8 or 9 DMX channels selectable for various applications
- Supports QuickDMX – the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessory)
- Addressing and setting via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control EUROLITE IR-16
- Feed-through output allows to power up to 8 devices
- LED: Strobe effect 16 x SMD 2835 0,6 W CW
- LED: Multi beam effect 4 x SMD 5050 10 W RGBW
- Can be operated in 2; 4; 5; 6; 8; 7; 9 CH mode
- The device is cooled by cooling fan
- Controlling by IR remote control; Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional)
- Effect: Multi beam effect; Strobe effect; laser
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 60 W |
IP classification: | IP20 |
Protection class: | Class I |
Power connection: | Mains input IEC (M) Power supply cord with safety plug |
Power output: | IEC connector (F) mounting version Bypass |
Fuse: | 5 x 20 mm, T 1,6 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | Strobe effect 16 x SMD 2835 0,6 W CW Multi beam effect 4 x SMD 5050 10 W RGBW |
DMX channels: | 2; 4; 5; 6; 8; 7; 9 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | IR remote control; Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional) |
Housing color: | Black |
Attachment system: | Mounting bracket |
Display type: | Monochrome 4 digits 7-segment LED display |
Control elements: | Navigation keys, sensitivity rotary dial |
Status LED: | DMX, slave mode, auto mode, sound mode |

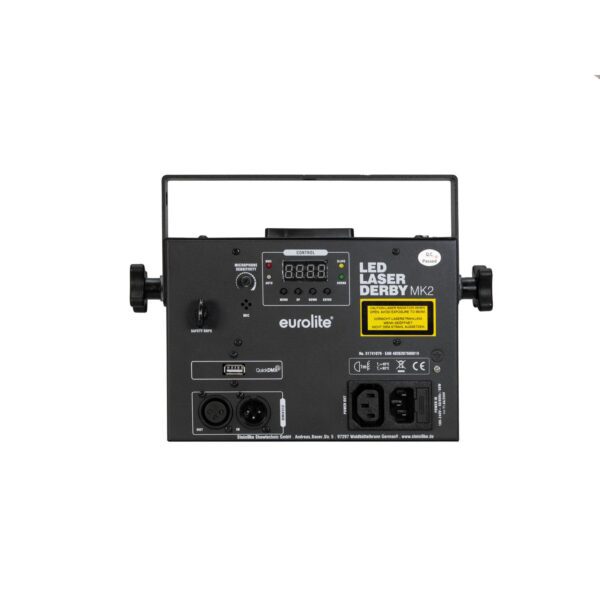

Connections: | Input: 1 x DMX via 3-pin XLR (M) mounting version Input: 1 x DMX via USB A (F) mounting version Output: 1 x DMX via 3-pin XLR (F) mounting version |
Dimensions: | Width: 26 cm Depth: 19 cm Height: 19 cm |
Weight: | 2,30 kg |
Power cord | |
Cable construction: | 3 x 0,75 mm² H05VV-F |
Cable length: | 1,5 m |
Laser | |
Laser class: | Class 2M |
Laser color: | RG |
Laser module: | G green 35 mW 515 nm R red 100 mW 650nm |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese |
