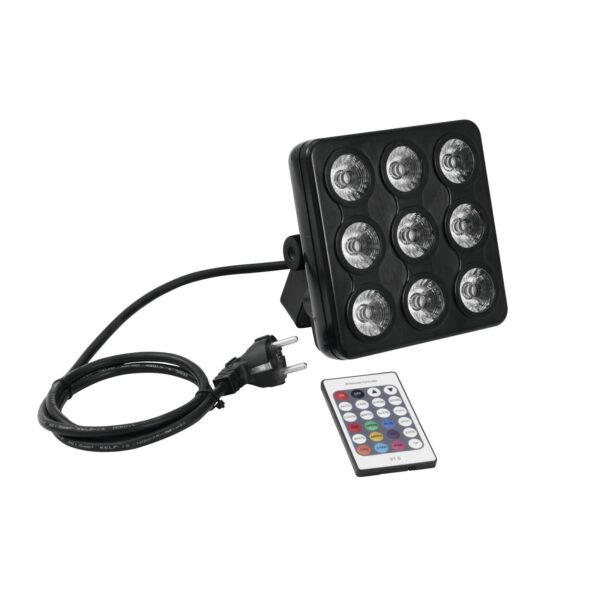

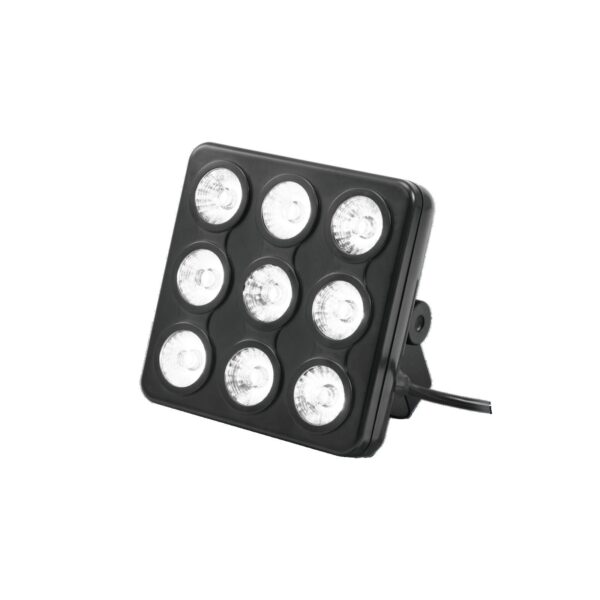

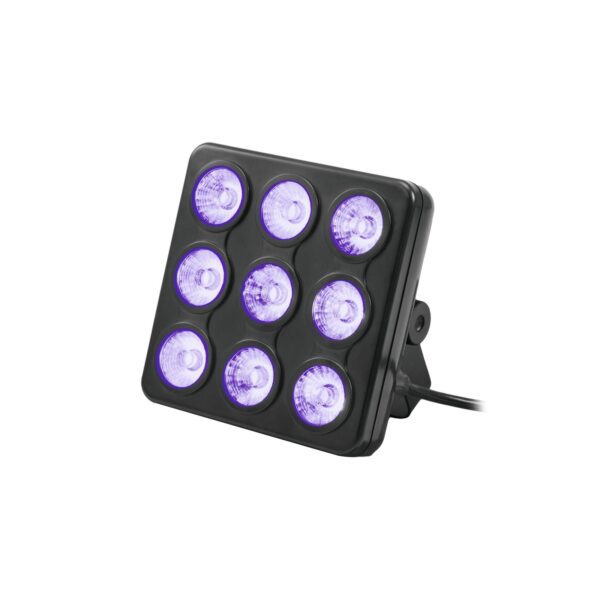

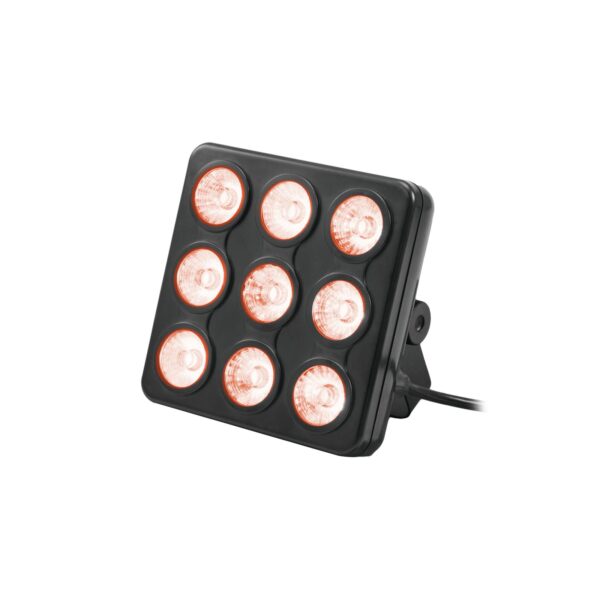

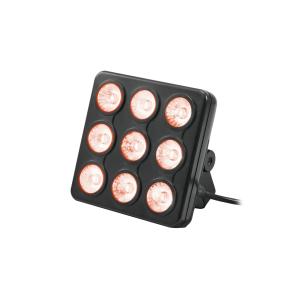

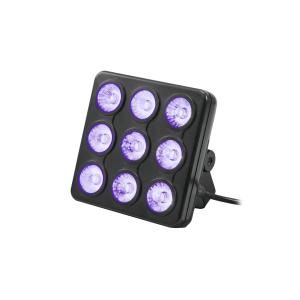

Handy panel with QCL LEDs in RGB+UV, with DMX
- Compact and versatile
- Equipped with nine 4 W QCL LEDs in red, green, blue and UV
- Flicker-free projection
- 4, 6 or 9 DMX channels selectable
- Functions: color presets, stepless RGB+UV color mixture, color changes with diverse settings, dimmer, strobe effect with variable speed, sound-control via built-in microphone, Master/Slave operation
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Addressing and setting via Control Board with 4-digit LED display and four operating buttons
- Additional controlling possibility via the EUROLITE IR-20 remote control, included in delivery
- Easy installation
- Designed for hanging or standing installation
- Locking possibility at the brackets
- Ready for connection via power cord with safety plug
- Switch-mode power supply for operation between 100 and 240 volts
- DMX512 control possible via any commercial DMX controller
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 13 W |
DMX channels: | 4/6/9 |
DMX connection: | 3-pin XLR |
Battery remote control: | CR2025 button cell 3 V |
Sound-control: | via built-in microphone |
LED type: | 4 W QCL, RGB+UV |
LED number: | 9 |
Beam angle: | 15° |
Dimensions (L x W x H): | 51 x 150 x 150 mm |
Weight: | 0.8 kg |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
