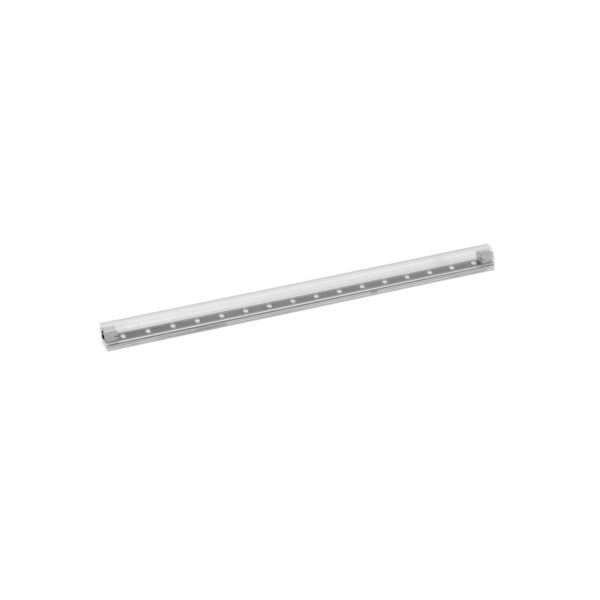

LED bar for pixel mapping applications
- LED bar with 16 or 32 pixels for video and pixel mapping applications via Art-Net
- Ultra-bright TCL LEDs for smooth RGB color mixing
- 180° beam angle
- Each LED individually addressable for displaying multimedia content or stunning running light effects, color fades and animations
- Modular concept allows build-up of large effects for clubs, stages, shops and various other environments
- Signal distribution via UTP cable
- Control via Art-Net/DMX with the optional controller LED PSU-4A
- Easily create animations with MADRIX or any other control software supporting Art-Net
- Stand-alone operation possible with 30 built-in light programs
- RGB color mixture, dimmer, strobe, Master/Slave
- Mounting material included in delivery
- Truss holders available as accessory
Power supply: | 24 V DC |
Power consumption: | 2 W |
Resolution: | 16 pixels |
Pixel configuration: | SMD TCL 5050 |
Pixel pitch: | 30 mm |
Beam angle: | 180° |
Signal port: | 2 x RJ45, CAT5e |
Dimensions (L x W x H): | 505 x 32 x 32 mm |
Weight: | 0.1 kg |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
