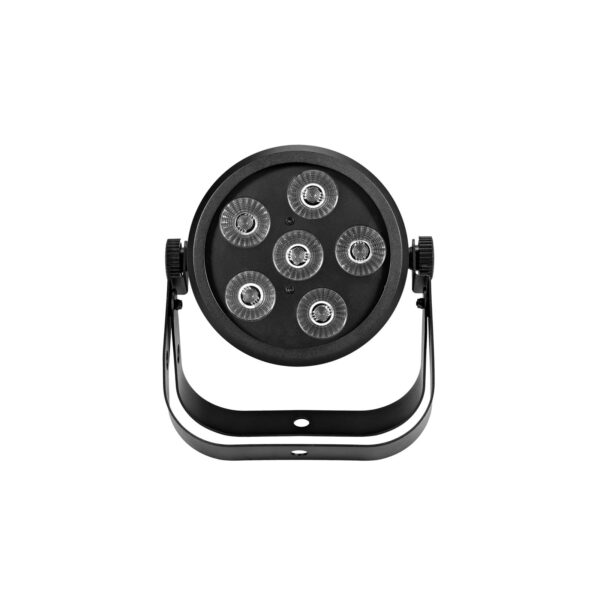

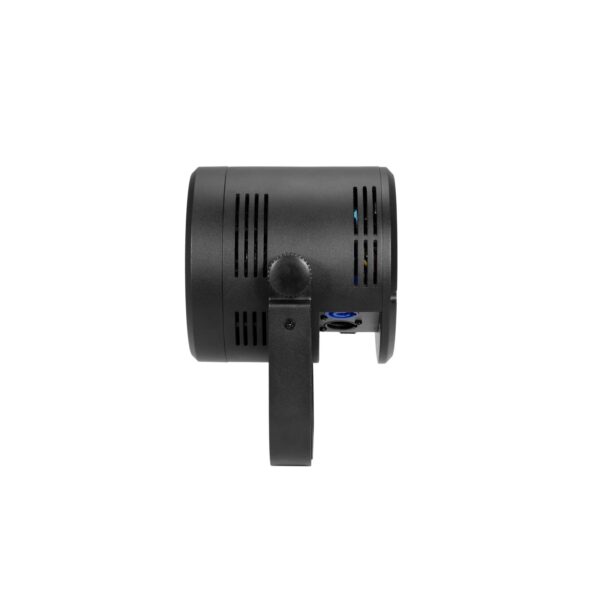

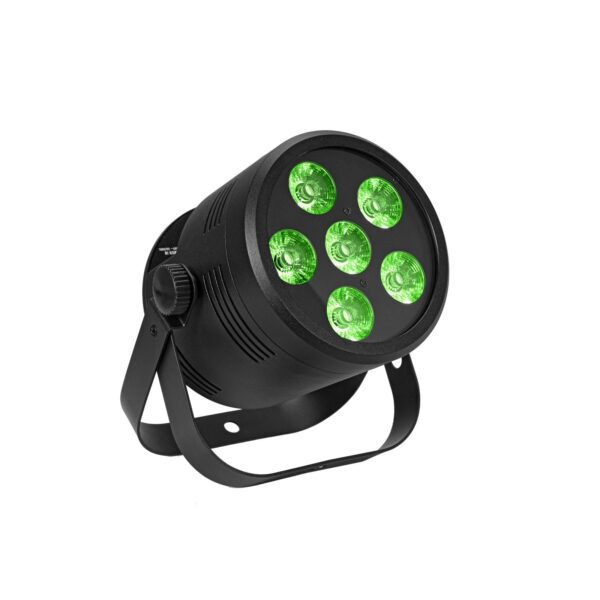

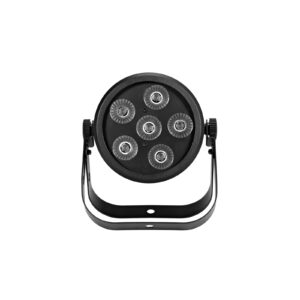

LED floor spot with RGB/WW color mixing
- 14350 lux at 1 m
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Dimmer speed (step response) adjustable
- 6 powerful LEDs 8 W 4in1 QCL RGB/WW (homogenous color mix)
- Direct color selection for 25 preset colors
- Can be operated in 6; 11 CH mode
- The device is cooled by passive convection cooling
- Controlling by stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone
- Flicker-free
- With a beam angle of 16°
- With double bracket
- With Panning and tilting mounting bracket for ceiling or wall installation in most varying angles

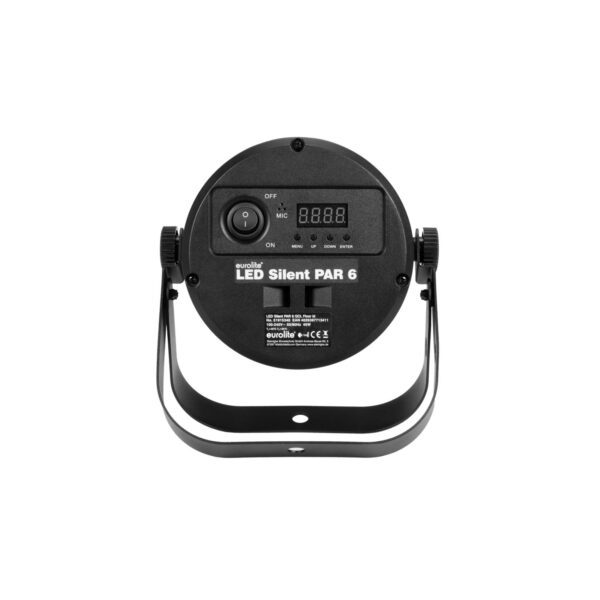

- 4 digits 7-segment LED display
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 45 W |
IP classification: | IP20 |
Protection class: | Class I |

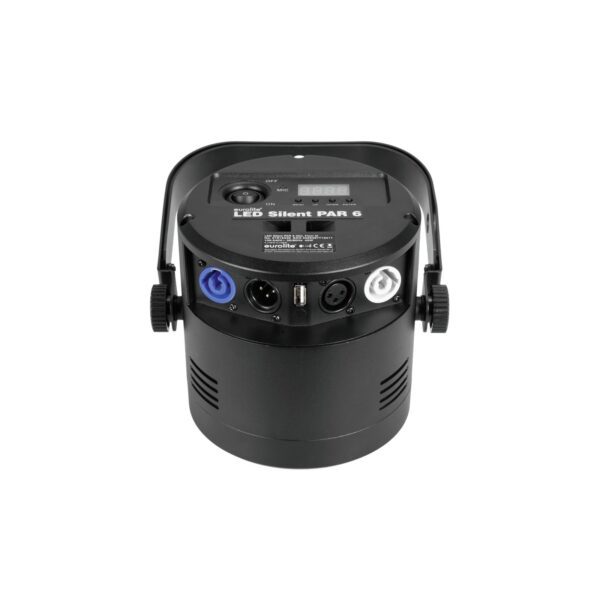

Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
Power output: | P-Con (gray), mounting version |
LED: | 6 x 8 W 4in1 QCL RGB/WW (homogenous color mix) |
Flash rate: | 0 – 20 Hz |
DMX channels: | 6; 11 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Passive convection cooling |
Control: | Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone |
Beam angle: | 16° |
Beam angle (1/2 peak): | 16° |
Beam angle (1/10 peak): | 29° |
Housing color: | Black |
Attachment system: | Double bracket Panning and tilting mounting bracket for ceiling or wall installation in most varying angles |
Display type: | 4 digits 7-segment LED display |
Dimensions: | Length: 14,3 cm Width: 17,7 cm Height: 21,1 cm |
Weight: | 2,15 kg |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
