Fresnel spot, dim to warm, 170 W warm white/amber LED, CRI > 90, quiet, DMX
- Functions: dimmer with 8 or 16 bit resolution, strobe effect with variable speed, random strobe effect, motorized zoom
- Various dimmer curves adjustable via control panel
- LED technology that simulates the color temperature curve of a halogen lamp when dimming
- Zoom adjustable via DMX or manually on the device
- Stepless brightness regulation via rotary control direct on the device
- Equipped with a warm white/amber COB LED (2in1)
- Stepless WW+A color mixture
- Color rendering index (CRI) >90
- Light output via Fresnel lens
- Metal housing
- Mounting bracket for installation on a stand or a crossbeam
- Locking possibility at the bracket
- Temperature-protected handle
- Additional rubber feet when the spot shall be positioned on the floor
- Rotatable barn doors and color filter frame included in the delivery
- 2, 6 or 7 DMX channels selectable
- DMX-controlled operation or stand-alone operation
- Supports RDM (Remote Device Management)
- Fan-cooled

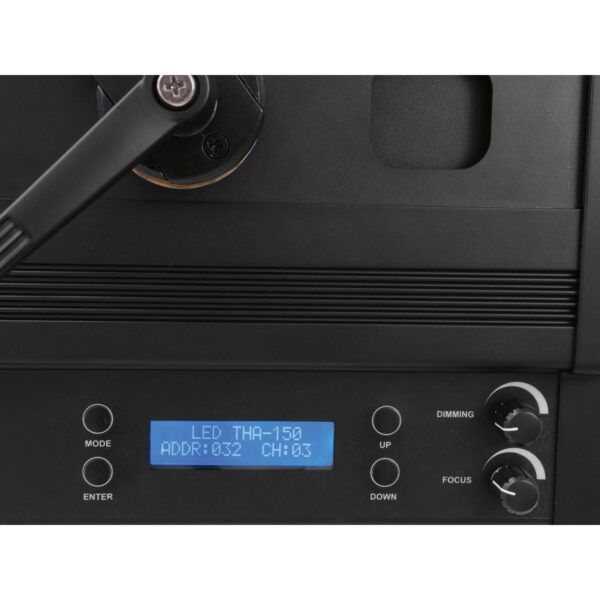

- Comfortable addressing and setting via control panel with LCD and four operating buttons
- Power connection via Neutrik PowerCon jack and included power cable with safety plug
- Feed-through output allows to power up to 8 devices
- Control: DMX
- Projection: flicker-free
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 150 W |
IP classification: | IP20 |
Power connection: | Mains input Powercon (blue), mounting version Power supply cord with safety plug |
Power output: | Powercon (gray) |
LED: | 1 x COB (chip-on-board) 170 W Dim to warm WW (homogenous color mix) |
Equipment: | Zoom motor-driven |
DMX channels: | 2; 6; 7 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
1 x 5-pin XLR (M) mounting version | |
DMX output: | 1 x 3-pin XLR (F) mounting version |
1 x 5-pin XLR (F) mounting version | |
Cooling fan: | Yes, temperature-controlled |
Control: | DMX |
Housing color: | Black |
Length: | 45,7 cm |
Width: | 33,6 cm |
Height: | 39,8 cm |
Weight: | 9,40 kg |
Legal specifications | |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
