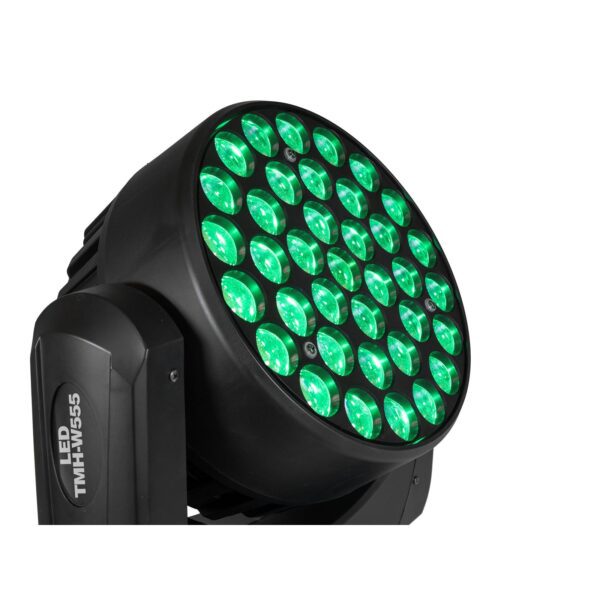

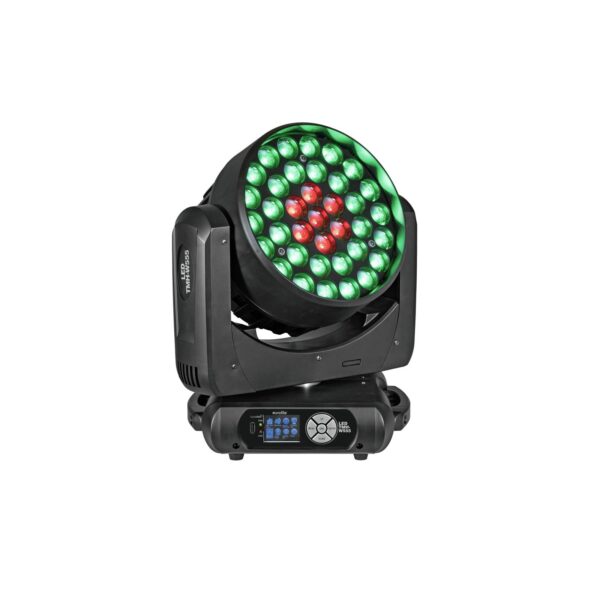

Washlight with 37 bright 15 W RGBW LEDs, zoom, macros, patterns and color temperature setting
- Equipped with 37 powerful 15 W LEDs in the colors red, green, blue and white
- Different LED segments, which can be controlled individually via DMX
- Positioning within 540° PAN and 270° TILT
- Functions: stepless RGBW color mixture, internal programs, automatic color changes, preset colors, color temperature setting, animated and static patterns, macros, strobe effect with variable speed, random strobe effect, dimmer
- Motorized zoom with 1-38° beam angle
- Color temperature steplessly adjustable between 2500 K and 10000 K
- Sound-control via built-in microphone; sensitivity adjustable
- Automatic position correction
- Exact positioning via 16 bit PAN/TILT movement resolution
- Supports QuickDMX – the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Control board with color LCD for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
- Switch-mode power supply for operation between 100 and 240 volts
- P-Con terminals for power linking up to 4 units
- LED: 37 x 15 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 24; 36; 48 CH mode
- The device is cooled by temperature-controlled fan at the Head; cooling fan at the Base
- Controlling by DMX; Stand-alone; Sound to light via Microphone; QuickDMX via USB (optional); Master/slave function
- Flicker-free projection
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 490 W |
IP classification: | IP20 |
Protection class: | Class I |
Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
Power output: | P-Con (gray), mounting version |
Fuse: | 5 x 20 mm, T 4 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 37 x 15 W 4in1 QCL RGBW (homogenous color mix) |
Max. TILT movement: | Exact positioning (16 bit resolution) 270° |
Max. PAN movement: | Exact positioning (16 bit resolution) 540° |
Equipment: | Zoom motor-driven |
DMX channels: | 24; 36; 48 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Temperature-controlled fan at the Head Cooling fan at the Base |
Control: | DMX; Stand-alone; Sound to light via Microphone; QuickDMX via USB (optional); Master/slave function |
Beam angle: | 1 – 38° |
Beam angle (1/2 peak): | 1 – 20° |
Beam angle (1/10 peak): | 8 – 38° |
Illuminance in Lux (lx): | Narrow red (R) 1m: 14703 lx, 3m: 6338 lx, 6m: 1581 lx Narrow green (G) 1m: 36582 lx, 3m: 14313 lx, 6m: 3581 lx Narrow blue (B) 1m: 4622 lx, 3m: 2444 lx, 6m: 666 lx Narrow cold white (CW) 1m: 47065 lx, 3m: 15572 lx, 6m: 3872 lx Narrow all 3m: 35914 lx, 6m: 9025 lx Wide red (R) 1m: 4769 lx, 3m: 624 lx, 6m: 165 lx Wide green (G) 1m: 10949 lx, 3m: 1431 lx, 6m: 386 lx Wide blue (B) 1m: 2021 lx, 3m: 274 lx, 6m: 77 lx Wide cold white (CW) 1m: 11357 lx, 3m: 1505 lx, 6m: 397 lx Wide all 1m: 27092 lx, 3m: 3575 lx, 6m: 956 lx |
Housing color: | Black |
Display type: | Multicolor LCD display |
Dimensions: | Width: 39,0 cm Depth: 26,5 cm Height: 47,5 cm |
Weight: | 13,90 kg |
Noise classification: | Class 2 (slight noise) |
Legal specifications | |
Special product: | Not designed for household room illumination |
intended use: | show effect lighting |
