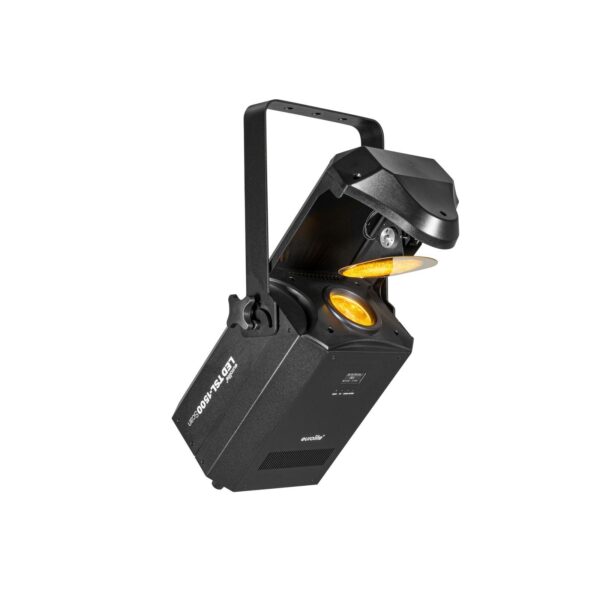

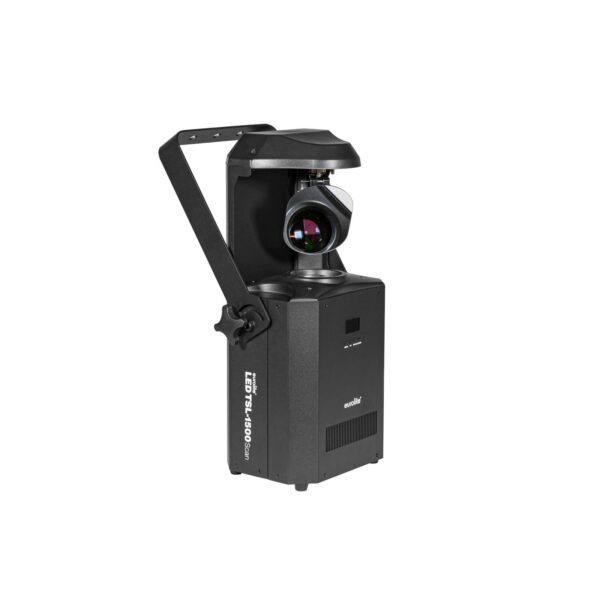

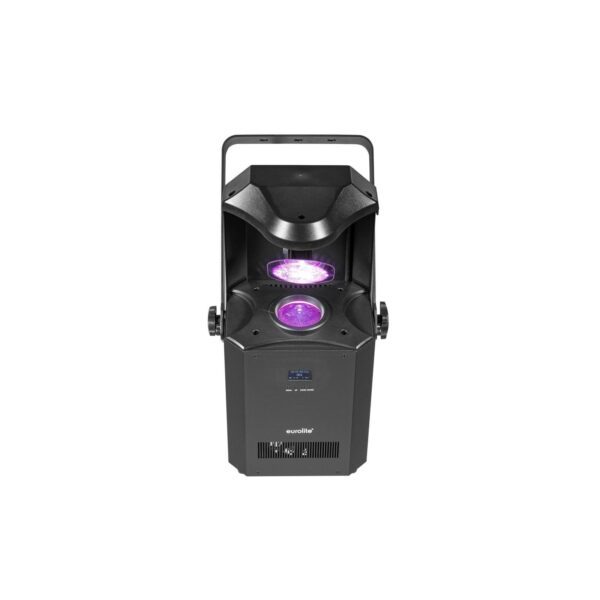

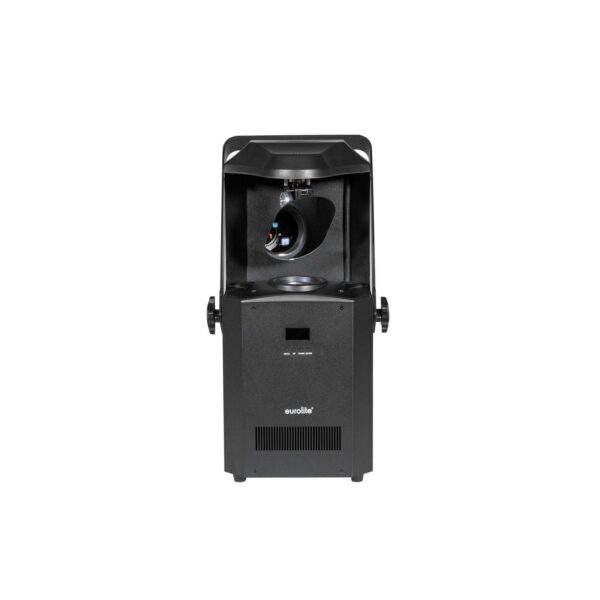

Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus
- Strobe effect with adjustable speed, random strobe effect and pulse effect
- Electronic dimmer
- Mains input and output for power linking up to 8 units
- 1 powerful LED 150 W COB (chip-on-board) cold white (CW)
- Positioning within 180° PAN and 70° TILT
- Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 4-fold rotating
- Gobo effect
- Color wheel with 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- 9 integrated Showprograms
- Can be operated in 13 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light Captain
- Flicker-free
- With a beam angle of 11°
- OLED display
- Rubber feet
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x safety eyelet
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 175 W |
IP classification: | IP20 |
Protection class: | Protection class I |

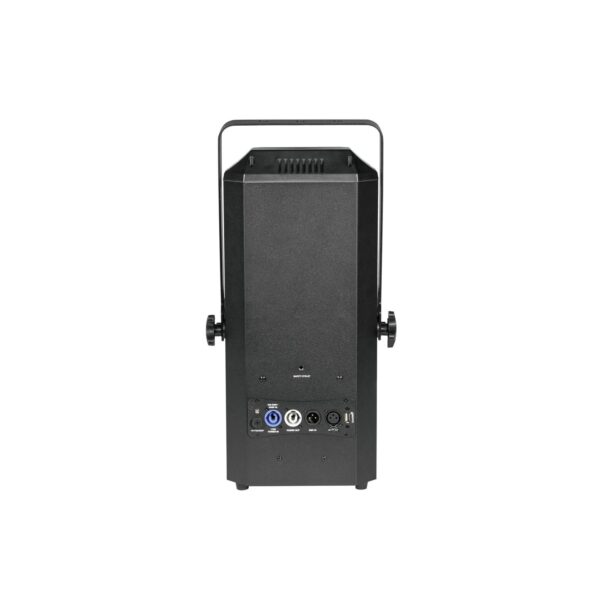

Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
Power output: | 1 x P-Con (gray), mounting version |
Fuse: | 5 x 20 mm, F 5 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 1 x 150 W COB (chip-on-board) cold white (CW) |
Color temperature: | 10000K |
Max. TILT movement: | 70° Positioning |
Max. PAN movement: | 180° |
Flash rate: | 1 – 30 Hz |
Equipment: | Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 4-fold rotating |
Color generation: | Color wheel with 8 dichroic filters plus open |
Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 19,8mm Image diameter 17mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement |
DMX channels: | 13 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Temperature-controlled fan |
Control: | Stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain |
Beam angle: | 11° |
Beam angle (1/2 peak): | 11° |
Illuminance in Lux (lx): | Cold white (CW) 3m: 15649 lx, 6m: 4147 lx |
Housing color: | Black |
Display type: | OLED display |
Transport aid: | Rubber feet |
Dimensions: | Width: 33,5 cm Depth: 16,5 cm Height: 47 cm |
Weight: | 7,05 kg |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
