EUROLITE LSD-20 MK2 (H)2.56m x (W)1.28m
6.694,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
LED soft displays
- Flexible displays with tricolor RGB LEDs (type SMD 5050) for bright and colorful projection of videos and graphics
- Improved version with even brighter LEDs and new angled connectors
- Modular display concept allows the build-up of large areas, ideal for outdoor use with large viewing distances
- Bendable and foldable PVC material suitable for various shapes, e.g. columns, circles, angles
- Fast and uncomplicated installation, indoor and outdoor (IP44)

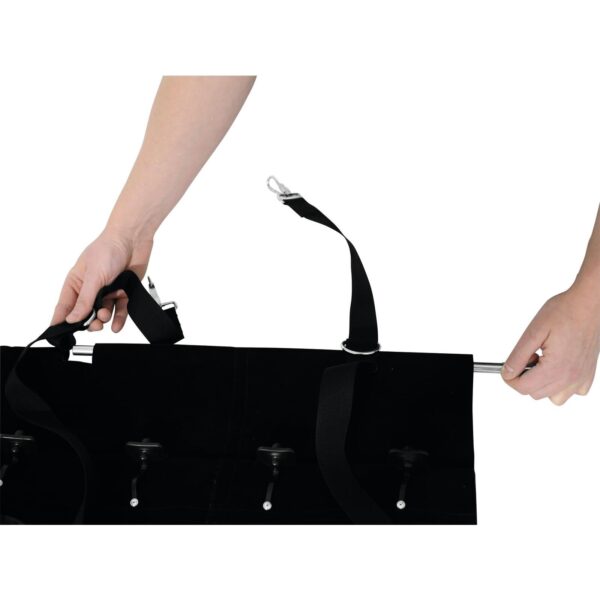

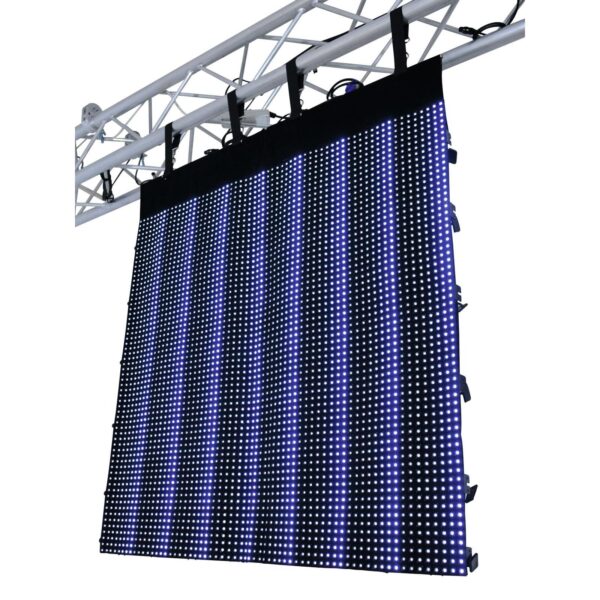

- Truss suspension via built-in belts
- Water-repellent and flame-resistant
- Low weight and small volume for convenient transport

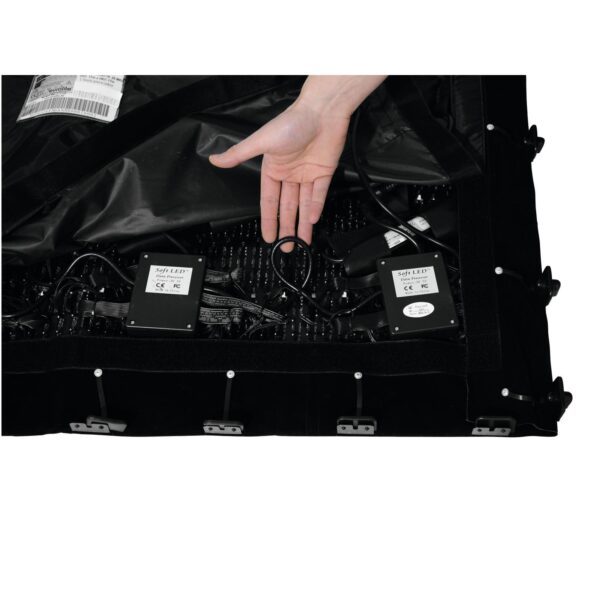

- Easy maintenance – LEDs can be replaced without difficulty
- Controllable via optional network components and PC software
- All-in-one control system T9 (80503301): network interface and software LED Show T9 – ideal system for mobile use with notebooks with 1-gigabit NIC
- Control system LED studio: receiver interface (80503311), PCI sending card and software LED Studio (80503130)
- Recommended media software: MADRIX
- Switch-mode power supply for operation between 100 and 240 volts
- Power output for passing on the power supply
- Available in different sizes and pixel pitches
- Custom sizes available upon request (in 0.32 m units)
| Power supply: | 90-260 V AC, 50/60 Hz |
| Power consumption: | 80 W/m² |
| Resolution (WxH): | 64 x 128 pixels |
| Pixel pitch: | 20 mm |
| Pixel density: | 2500/m² |
| Pixel configuration: | tricolor RGB LEDs, type SMD 5050 |
| Lifetime: | approx. 100000 hours |
| Display port: | DVI/RJ45 |
| Display mode: | synchronous to video source |
| Drive mode: | 1/8 scan |
| Screen resolution: | max. 1280 x 1024 (LED Studio) |
| max. 1024 x 896 (LED Show T9) | |
| Brightness: | 3600 cd/m² (nits) |
| Viewing angle: | 110° |
| Frame rate: | 60 Hz |
| Data refresh rate: | 600 Hz |
| Colors: | 16.7 million (R 256, G 256, B 256) |
| Protection grade: | IP44 |
| Operating temperature: | -10 to 45 °C |
| Humidity: | 10 to 90 % |
| Dimensions (WxH): | 1280 x 2560 mm |
| Weight: | 7.8 kg/m² |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
| Peso | 344,500 kg |
|---|---|
| Dimensioni | 0,1900 × 13,200 × 0,6800 cm |
| Codice Ean | 4026397459814 |
