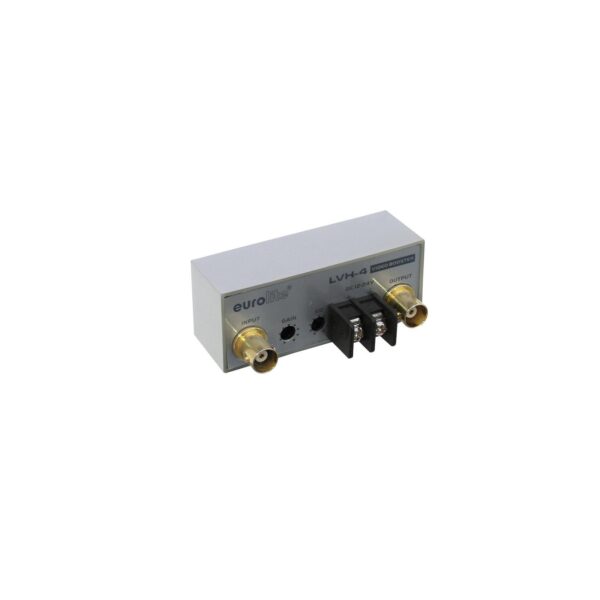

EUROLITE LVH-4 Video booster
47,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
Video line amplifier with equalizer
- Equalizes and compensates for signal losses inherent in long cable runs (max. 600 m)
- 75 ohms input and outputs via BNC plugs
- Separate controls for amplification and equalization
- 12-24 V AC/DC power supply via signal source or external source (not included)
- Ultra compact
| Power supply: | 12-24 V AC/DC, 30 mA |
| 1 x video input: | 1 Vpp/ 75 ohms, BNC |
| 1 x video output: | 1 Vpp/ 75 ohms, BNC |
| Gain: | adjustable to +5 dB |
| Bandwidth: | 10 MHz |
| Equalization adjustment: | 0 dB to +4 dB/ 3.58 MHz |
| 0 dB to +7 dB/ 5 MHz | |
| S/N ratio: | >70 dB |
| Dimensions (L x W x H): | 76 x 41 x 31 mm |
| Weight: | 70 g |
| Peso | 0,0910 kg |
|---|---|
| Dimensioni | 0,0500 × 0,0900 × 0,0450 cm |
| Codice Ean | 4026397324815 |
