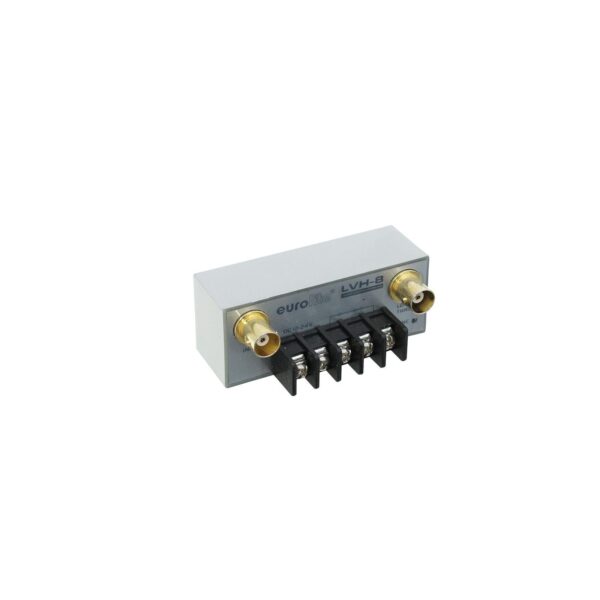

EUROLITE LVH-8 Video controlled relay
33,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
VIDEO CONTROLLED RELAY
The LVH-8 serves as a video presence detector for an audio/video system. The unit generates a control signal based on the absence or presence of valid video signals. The unit responds to NTSC and PAL signals and features a feed-through output. Power connections are made using block terminals.
The LVH-8 serves as a video presence detector for an audio/video system. The unit generates a control signal based on the absence or presence of valid video signals. The unit responds to NTSC and PAL signals and features a feed-through output. Power connections are made using block terminals.
Video controlled relay
- Detection of video
- NTSC and PAL compatible
- Bridging or terminated operation
- LED indicator
- Connections via BNC plug
- 12-24 V DC power supply via block terminals (PSU not included)
- Ultra compact
| Power supply: | 12-24 V DC, 74 mA |
| 1 x video input: | 0.5-1 Vpp/75 ohms BNC, ground referenced |
| 1 x video output: | Feed-through/ BNC, ground referenced |
| Control output: | N/O or N/C contacts |
| Relay contacts: | Single-pole, double-throw |
| Max. switching power: | 60 W, 125 VA |
| Max. switching voltage: | 220 V AC, 250 V DC |
| Max. switching current: | 2 A |
| Max. continuous switching current: | 3 A |
| Dimensions (L x W x H): | 76 x 41 x 31 mm |
| Weight: | 7 g |
| Peso | 0,0920 kg |
|---|---|
| Dimensioni | 0,0500 × 0,0900 × 0,0450 cm |
| Codice Ean | 4026397324846 |
