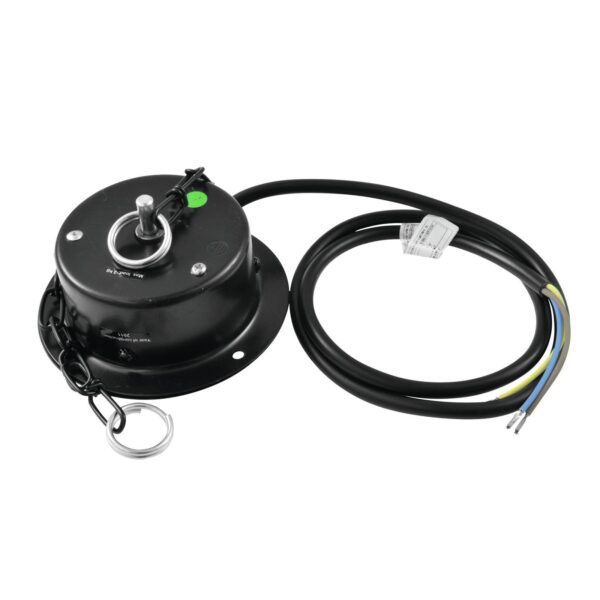

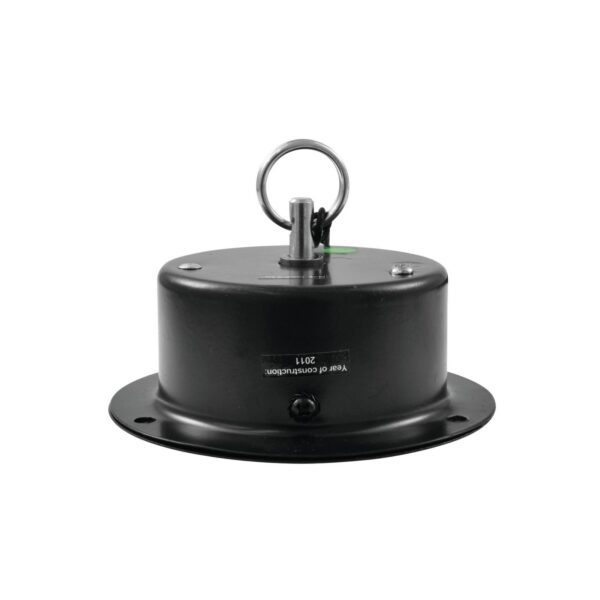

Mirror ball motor without plug
- Suitable for driving mirror balls up to a maximum weight of 3 kg
- This weight corresponds with a diameter of 30 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain and the fixation material
- 1,5 rotations per minute
- Delivered with open cable-ends
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 4 W |
Maximum load: | 3 kg |
Max. diameter of mirror ball: | 30 cm (EUROLITE) |
Rotation-speed: | approx. 1.5 RPM |
Diameter of base plate: | 113 mm |
Height: | 58 mm |
Weight: | 0.3 kg |
