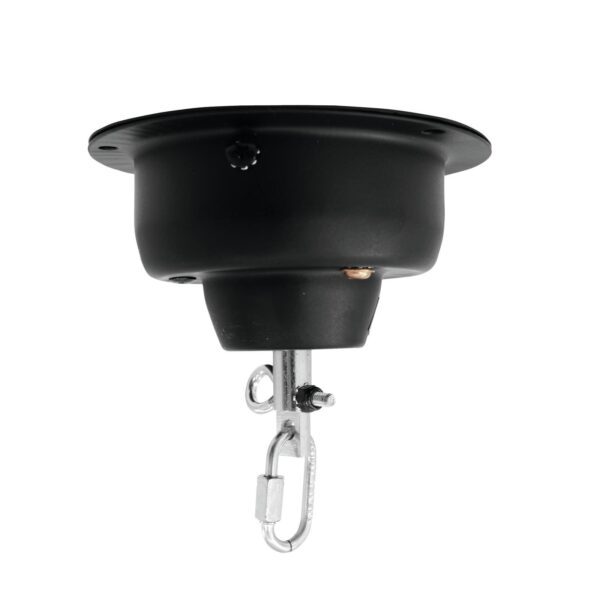

EUROLITE MD-1515 Safety Rotary Motor
27,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
Safety features
? Rugged construction with steel housing for long operation
? High stability due to massive motor axle
? Mechanic fall safety against axle loosening inside the motor
? Approved load with 12-fold testing weight
? Additional attechment eyelet for secondary attachment of the load
? EUROLITE safety rotary motors comply with the safety norm EN 292 and safety regulation BGV C1 (Germany)
? Quality management for testing every production charge
? Rugged construction with steel housing for long operation
? High stability due to massive motor axle
? Mechanic fall safety against axle loosening inside the motor
? Approved load with 12-fold testing weight
? Additional attechment eyelet for secondary attachment of the load
? EUROLITE safety rotary motors comply with the safety norm EN 292 and safety regulation BGV C1 (Germany)
? Quality management for testing every production charge
Mirror ball motor for up to 40 cm diameter
- Suitable for driving mirror balls up to a maximum weight of 4 kg
- This weight corresponds with a diameter of 40 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain and the fixation material
- 2 chains and 4 quick links must be ordered separately
- 1,5 rotations per minute
- Ready for connection with power plug
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 4 W |
| Maximum load WLL (4-fold): | 12 kg |
| Maximum load BGV C1 (8-fold): | 6 kg |
| Maximum load BGV C1 (10-fold): | 5 kg |
| Maximum load BGV C1 (12-fold): | 4 kg |
| Max. diameter of mirror ball: | 40 cm (EUROLITE) |
| Rotation-speed: | approx. 1.5 RPM |
| Diameter of base plate: | 120 mm |
| Height: | 85 mm |
| Weight: | 0.4 kg |
| Peso | 0,4200 kg |
|---|---|
| Dimensioni | 0,1000 × 0,1200 × 0,1350 cm |
| Codice Ean | 4026397285468 |
