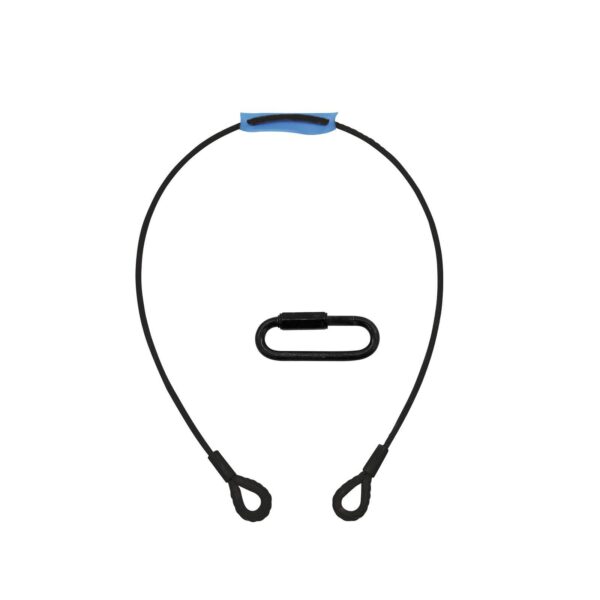

EUROLITE Safety Bond B 6x1000mm up to 35kg bk

5801049E EUROLITE Steel Rope 1000x6mm black with Thimbles

EUROLITE Lifting ropes, safety bondsThe EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.Use as attachment gearThese ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by table 2 of BGI 810-3:2007-03. According to this table, the maximum load of this rope is 165 kg (single-stranded).Use as safety bondThe correct safety bond must be selected only by table 9 of BGI 810-3:2007-03. According to this table, the maximum load of this safety bond is 35 kg.

5030165B EUROLITE Quick Link Type B-200 black

EUROLITE quick linksThe EUROLITE quick links comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The quick links are constructed in accordance with the German standard DIN 56927:2009-03.The quick links are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can secure loads above persons with these quick links in all areas where the BGV C1 is required.

5801049E EUROLITE Steel Rope 1000x6mm black with Thimbles

Lifting rope, safety bond, safety
• Round strand rope 6 x 19 with fibre core
• With two thimbles
• Suitable for installing and securing loads above persons
• 6 x 1000 mm
• WLL 400 kg
• Test report according to DIN EN 10204 as download

5030165B EUROLITE Quick Link Type B-200 black

Official quick link
• Complies with DIN 56927:2009-03
• Nominal size: 6 mm
• Form B (long)
• Galvanized
• Identification number: 200
• Stamp: DIN 56926 B 200
• Test report according to DIN EN 10204 as download

5801049E EUROLITE Steel Rope 1000x6mm black with Thimbles

Maximum load WLL (5-fold):   400 kg
Maximum load BGV C1 (12-fold):   165 kg
Maximum load (safety):   35 kg
Temperature range:   -40° C to +100° C
Rope length:   1 m
Rope diameter:   6.00 mm
Rope type:   Round strand rope
Rope construction:   6 x 19 FC
Standard:   DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strength:   1770 N/mm²
Strength classification:   1960
Wire surface:   Zinc-plated
Mass:   0.125 kg/m

5030165B EUROLITE Quick Link Type B-200 black

Maximum load WLL (5-fold):   400 kg
Maximum load BGV C1 (10-fold):   200 kg
Identification:   DIN 56926-B-200
Temperature range:   -40° C to +100° C
Diameter:   6 mm
Form:   B – large
Standard:   DIN 56927:2009-03
Spanner opening:   14.5 mm
Dimensions:   73 x 30 mm
Weight:   40 g
