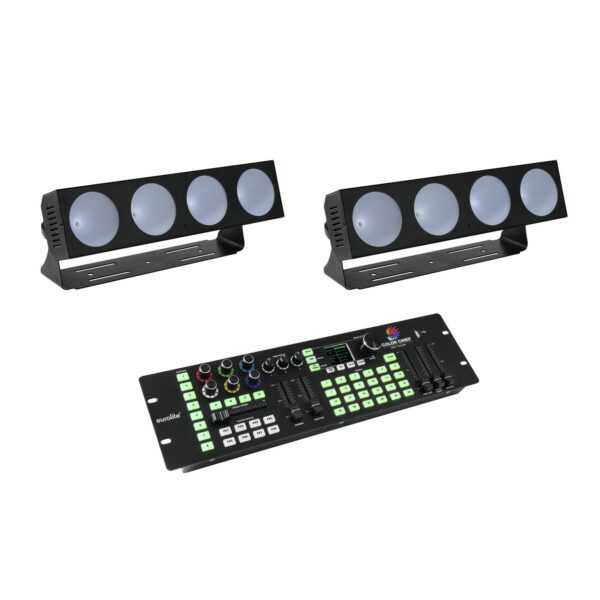

EUROLITE Set 2x LED CBB-4 + DMX LED Color Chief Controller

51930278 EUROLITE LED CBB-4 COB RGB Bar

LED light effect bar with RGB color mixing, incl. IR remote control

• 4 high-power 15 W RGB LEDs (COB)
• Auto, music, master/slave and DMX mode
• Built-in auto and music show programs
• Direct color selection for 19 preset colors
• Stepless RGBW color blend, color change, color fade, dimmer and strobe effect
• Flicker-free projection
• Addressing and setting via control panel with 4-digit LED display
• Convenient wireless control via included IR remote control EUROLITE IR-7
• Sound-control via built-in microphone with adjustable microphone sensitivity
• DMX512 control possible via any commercial DMX controller
• 3, 5, 12, 15, or 19 DMX channels selectable for various applications
• Swivel mounting bracket
• Feed-through output allows to power up to 8 devices
• Color generation: RGB

70064575 EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for data storage of lighting programs
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• Very simple to program and use
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Rack installation with 3 units
• Controller useable for: RGB
• Controller useable for: RGBA
• Controller useable for: RGBW
• Controller useable for: RGBA+RGBW
• Controller useable for: RGBWA
• Controller useable for: RGBWA+UV
• Controller useable for: RGB+WA
• Controller useable for: RGBW+UV
• Controller useable for: RGB+UV
• Controller useable for: Colour wheel
• Controller useable for: Controls DMX-effects
• Controller useable for: Controls KLS classic
• Controller useable for: Controls KLS in general

51930278 EUROLITE LED CBB-4 COB RGB Bar

Power supply:   100-240 V AC, 50/60 Hz
DMX channels:   3/5/12/15/19
DMX connection:   3-pin XLR
Sound-control:   via built in microphone
LED type:   15 W RGB (COB)
LED number:   4
Beam angle:   39°
Dimensions (L x W x H):   160 x 460 x 160 mm
IP classification:   IP20
Lamp type:   LED lamp
Weight:   4 kg
Power consumption:   70 W
Beam angle:   39 °
Ecodesign regulation:   Yes
Special product:   Not designed for household room illumination
Purpose:   Show effect lighting

70064575 EUROLITE DMX LED Color Chief Controller

Power supply:   100-240 V AC, 50/60 Hz
   via included power adapter (9 V/800 mA)
Control channels:   maximum 240
Storable scenes/chases:   24
DMX512 output:   3-pin XLR connector
Sound-control:   via built-in microphone or
   RCA line input (min. 100 mV)
Available storage media:   USB devices (FAT32)
Dimensions (L x W x H):   482 x 132 x 85 mm
   Rack installation with 3 U
Number of DMX channels:   240
Weight:   2,2 kg
Power consumption:   10 W
IP classification:   IP20
Color:   Black
