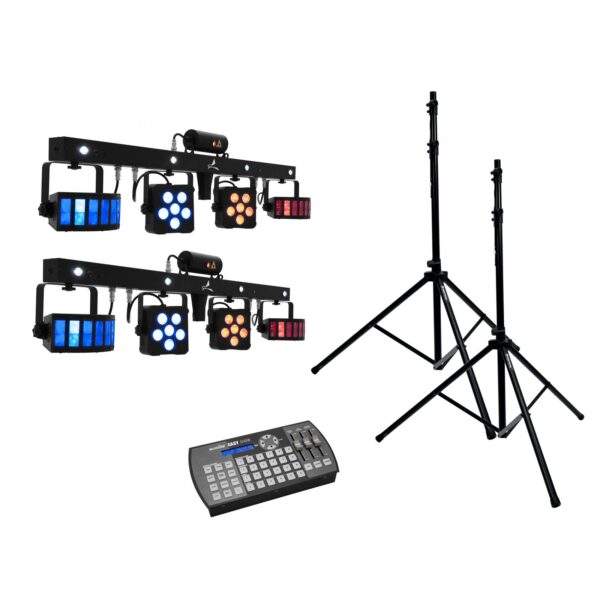

EUROLITE LED KLS Laser Bar PRO FX Light Set
Bar with 2 strong derbies and spots, white/UV strobe LEDs, laser (RG, 2M)
- 4-in-1 DMX light effect bar with laser, 2 rotating LED derbies, 2 LED spots and strobe LEDs in white and UV
- Enhanced version with very high brightness and additional UV LEDs
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- Ultra-light ideally suited for mobile use
- Crossbar with integrated DMX control unit and stand sleeve
- Comes pre-assembled with practical transport bag
- Convenient control via wireless foot switch and IR remote control
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects with 6 bright LEDs (red, green and blue) each
- 2 spots with 6 bright 3in1 LEDs (red, green and blue) each
- Strobe effect with 4 bright 2in1 LEDs (white and UV)
- 39 built-in auto and music show programs that include all 4 effect units
- Addressing and setting via control panel with 4-digit LED display
- Swivel mounting brackets for truss mounting
- When fog is used, this effect becomes especially attractive
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- Can be operated in 3; 5; 10; 28 CH mode
- The device is cooled by cooling fan
- Controlling by Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function
- Is in EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
- Effect: Multi beam effect; Strobe effect; laser
- For application areas such as: Wedding/gala
spotlight
- LED: Spot 2 x separate controlling each with 6 x high-power 6 W 3in1 TCL RGB (homogenous color mix)
light effect
- LED: Multi beam effect 2 x separate controlling each with 6 x high-power 2 W RGB
bar
- LED: Strobe effect 6 x separate controlling with 4 x high-power 2 W 2in1 BCL CW/UV (homogenous color mix)
EUROLITE EASY Show
Programmed DMX controller for over 200 spotlights from EUROLITE
- Easy-to-use DMX controller and DMX recorder
- Designed for DMX beginners with 200 programmed fixtures
- DMX recording function for your own projects, ideal for installations or rental companies
- Ideal for colored LED spotlights, KLS systems, moving lights and lighting effects
- No programming required, simply connect your spotlights and get started
- All spotlights can be freely combined to a show
- 12 color schemes and 24 chases directly available
- Controls for overall brightness, running speed, fade time and strobe effect
- Data storage on USB flash drives
- QuickDMX connector for wireless DMX connection
- Backlit LCD display
- Compact desktop console
- Includes USB flash drive, USB plug-in power adapter and mounting brackets
- A list of all preset devices is available at www.steinigke.de
- Controlling by DMX; Sound to light via Microphone
OMNITRONIC M-4 Speaker-System Stand
Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg
- Stable aluminum version
- Height adjustable in 10 steps, with locking pin
- Height: 140-345 cm
- Tube diameter: Ø 35 mm
- Centric load: 18 kg
- Scratch-resistant black finish
Weight: | 34,44 kg |
EUROLITE LED KLS Laser Bar PRO FX Light Set | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 150 W |
IP classification: | IP20 |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Power output: | 1 x IEC connector (F) mounting version |
Fuse: | 5 x 20 mm, T 3,15 A |
Lamp type: | LED lamp |
DMX channels: | 3; 5; 10; 28 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function; EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software |
Housing color: | Black |
Dimensions: | Width: 1,32 m Depth: 14,5 cm Height: 32 cm |
Weight: | 10,75 kg |
Noise classification: | Class 2 (slight noise) |
Power cord | |
Cable construction: | 3 x 1,0 mm² H05VV-F |
Cable length: | 3 m |
Laser | |
Laser class: | Class 2M |
Laser color: | RG |
Laser module: | R red 100 mW 650nm G green 30 mW 532nm |
Spotlight | |
LED: | Spot 6 x high-power 6 W 3in1 TCL RGB (homogenous color mix) |
Flash rate: | 0 – 30 Hz |
Beam angle: | 13° |
Beam angle (1/2 peak): | 13° |
Beam angle (1/10 peak): | 20° |
Light effect | |
LED: | Multi beam effect 6 x high-power 2 W RGB |
Flash rate: | 0 – 30 Hz |
Bar | |
LED: | Strobe effect 4 x high-power 2 W 2in1 BCL CW/UV (homogenous color mix) |
Flash rate: | 0 – 30 Hz |
Foot control | |
Battery: | 1 x 9.0 V E block 6F22 zinc carbon included |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
EUROLITE EASY Show | |
Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 250 mA |
Power consumption: | 1,25 W |
IP classification: | IP20 |
Power connection: | Mains input USB C (F) mounting version Power supply cord with AC adapter |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Control: | DMX; Sound to light via Microphone |
Housing color: | Black |
Available storage media: | USB devices |
Dimensions: | Width: 28,0 cm Depth: 14,5 cm Height: 6,0 cm |
Weight: | 1,35 kg |
OMNITRONIC M-4 Speaker-System Stand | |
Maximum carrying capacity: | 18 kg |
Tube diameter sector: | 38 – 35 mm |
Height: | Maximum: 345 cm Minimum: 140 cm |
Attachment system: | Ø 35mm |
Type (general stands): | Speaker stand/manual |
Material: | Aluminum |
Color: | Black |
Transport dimensions: | 1,4 m x 13,5 cm |
Weight: | 3,30 kg |
