EUROLITE LED TMH-B90 Moving-Head Beam
LED moving head beam with color wheel, static gobo wheel, prism and focus
- Positioning within 540° PAN and 200° TILT
- Exact positioning via 16 bit PAN/TILT movement resolution
- Rotating 8-facet prism with variable speed
- Strobe effect with 2-20 flashes per second
- Built-in programs
- Electronic dimmer (0-100%)
- Frost filter
- Automatic position correction
- Mains input and output for power linking up to 8 units
- 1 powerful LED 90 W COB (chip-on-board) cold white (CW)
- Color wheel 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 13 gobos und open
shake effect - Can be operated in 14 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light Captain
- Flicker-free projection
- Effect: Single Beam
- With a beam angle of 3°
- Good color rendering index (CRI)
- LCD display for easy controlling
Package contents
- 1 x Moving light, 1 x User manual, 1 x Power cord, 1 x Omega holder, 1 x Safety eyelet

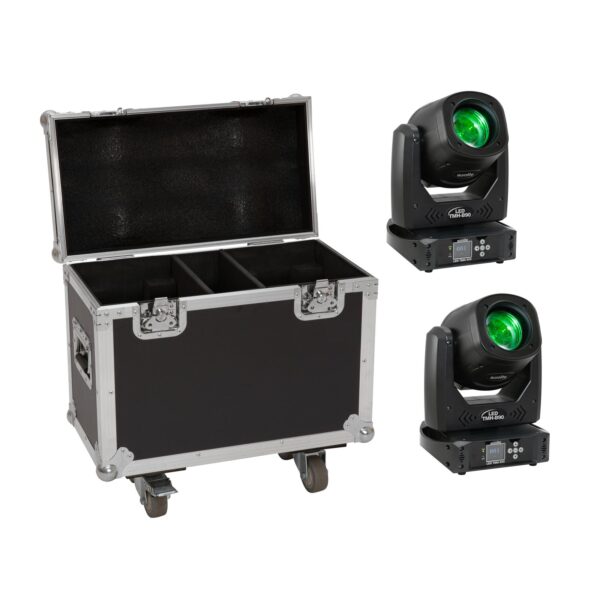

ROADINGER Flightcase 2x TMH-S90/H90/B90
Flightcase for 2 x EUROLITE LED TMH-S90 Moving-Head Spot
- For optimal security
- With 2 Device compartments
- High-quality workmanship with plywood glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- With castors
Weight: | 28,40 kg |
EUROLITE LED TMH-B90 Moving-Head Beam | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 125 W |
IP classification: | IP20 |
Protection class: | Class I |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output: | P-Con (gray), mounting version |
Device fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 1 x 90 W COB (chip-on-board) cold white (CW) |
Max. TILT movement: | Exact positioning (16 bit resolution) 200° Auto position correction (feedback) |
Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
Flash rate: | 2 – 20 Hz |
Equipment: | Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold; frost filter |
Color generation: | Color wheel 7 dichroic filters plus open |
Gobos: | Gobo wheel with static gobos, 13 gobos und open Shake effect |
DMX channels: | 14 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain |
Beam angle: | 3° |
Beam angle (1/2 peak): | 3° |
Color rendering index (CRI) more than: | 80 Ra |
Illuminance in Lux (lx): | Cold white (CW) 3m: 33839 lx, 6m: 10454 lx |
Housing color: | Black |
Display type: | LCD display |
Dimensions: | Width: 25,5 cm Depth: 20,5 cm Height: 33,0 cm |
Weight: | 6,55 kg |
Noise classification: | Class 2 (slight noise) |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
ROADINGER Flightcase 2x TMH-S90/H90/B90 | |
Maximum load: | 50 kg |
Aluminum profile frames: | 30 mm |
Case handles: | 2 pc/pcs |
Stop hinge: | 2 pc/pcs |
Lock: | Butterfly lock: 2 pc/pcs |
Transport aid: | Castors |
Material: | Plywood glued, 7 mm |
Color: | Black, laminated |
Device compartment: | 20 cm x 26 cm x 37 cm |
Accessory compartment: | 9,5 cm x 26 cm x 37 cm |
Dimensions: | Width: 57 cm Depth: 32 cm Height: 54 cm |
Weight: | 13,15 kg |
