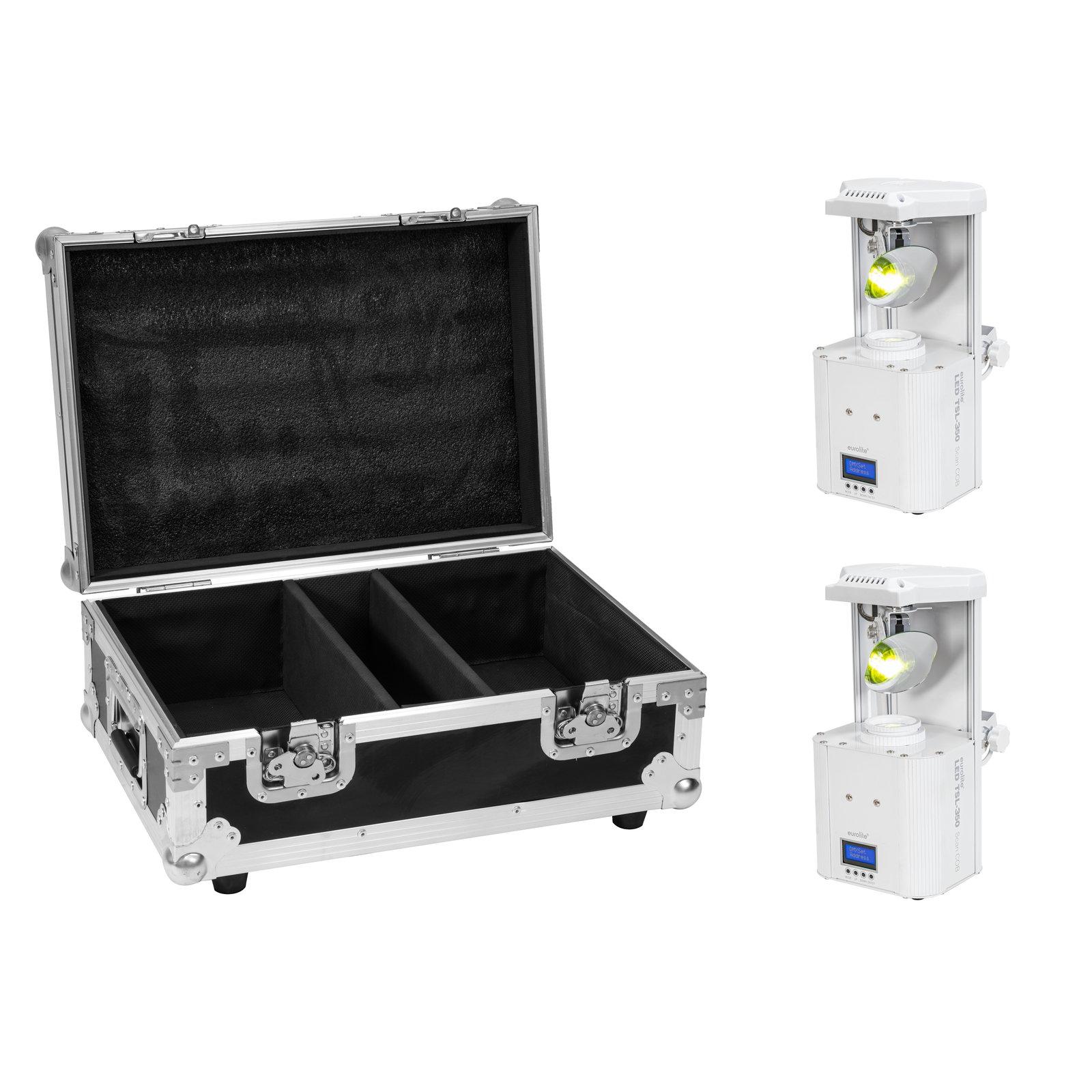

EUROLITE LED TSL-350 Scan COB wh
Handy scanner with 60 W COB LED, gobo and color wheel
- Compact design
- 1 powerful LED 60 W COB (chip-on-board) cold white (CW)
- Positioning within PAN and TILT
- Color wheel; gobo wheel with rotating gobos; Focus manual
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed - Gobo wheel with rotating gobos, 7 gobos and open
Slot-in gobo system for easy gobo replacement - Shake effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 11°
- LCD display
- Dimmer electronic
- Preprogrammed in Light´J; Light Captain; EASY SHOW 2
- Rubber feet
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Party room; mobile djs / entertainer
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x mounting bracket, 3 x gobos
ROADINGER Flightcase 2x TSL-150/250/350
Trunk case
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- 4 rubber feet
- For further information about this product, please refer to the Data Sheet under “Downloads”
Weight: | 14,76 kg |
EUROLITE LED TSL-350 Scan COB wh | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 70 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Fuse: | 5 x 20 mm, T 1,5 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 1 x 60 W COB (chip-on-board) cold white (CW) |
Equipment: | Color wheel; gobo wheel with rotating gobos; Focus manual |
Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed |
Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 10mm Image diameter 14mm Slot-in gobo system for easy gobo replacement Shake effect |
DMX channels: | 10 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in: | Light´J; Light Captain; EASY SHOW 2 |
Projection: | Flicker-free |
Beam angle: | 11° |
Beam angle (1/2 peak): | 11° |
Illuminance in Lux (lx): | Cold white (CW) 1m: 12034 lx, 3m: 1489 lx, 6m: 388 lx |
Housing color: | White |
Display type: | LCD display |
Transport aid: | Rubber feet |
Dimensions: | Width: 16,0 cm Depth: 15,0 cm Height: 33,0 cm |
Weight: | 3,26 kg |
ROADINGER Flightcase 2x TSL-150/250/350 | |
Maximum load: | 50 kg |
Aluminum profile frames: | 30 mm |
Case handle: | 2 pc/pcs |
Stop hinge: | 2 pc/pcs |
Lock: | Butterfly lock: 2 pc/pcs |
Transport aid: | 4 x rubber feet |
Material: | Plywood multi-layer glued, 7 mm |
Color: | Black, laminated |
Device compartment: | 19 cm x 33,5 cm x 12,5 cm |
Accessory compartment: | 8 cm x 33 cm x 12,5 cm |
Inside dimensions: | 49 cm x 33,5 cm x 12,5 cm |
Dimensions: | Width: 54 cm Depth: 38 cm Height: 24 cm |
Weight: | 6,90 kg |
