EUROLITE AKKU TL-3 QCL RGB+UV Trusslight
Battery-powered trusslight with RGB+UV LEDs and IR remote control
- Compact and bright
- Cordless and versatile
- 3 high-power 4 W RGB+UV LEDs (4in1)
- Ideal for booth construction, stages and anywhere trussing is used
- Ideal for ALUTRUSS DECOLOCK DQ3 3-point system
- Battery operation up to 10 hours
- Energy saving mode
- Auto, music, master/slave and DMX mode
- Sound-control via built-in microphone with adjustable microphone sensitivity
- Supports QuickDMX – the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessory)
- Built-in auto and music show programs
- Direct color selection for 20 preset colors
- Color temperature 10-step adjustable from 2700-8000 K
- Stepless RGB/UV color mixture, color change, color fade, dimmer, strobe effect with variable speed, sound control, white balance
- Addressing and setting via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control EUROLITE IR-7
- Threaded inserts for suspended installation
- Additional rubber feet protect the device when positioned on the floor
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 3 x high-power 4 W 4in1 QCL RGB/UV (homogenous color mix)
- Can be operated in 2; 4; 5; 6; 9 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; DMX; IR remote control; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
- Flicker-free projection

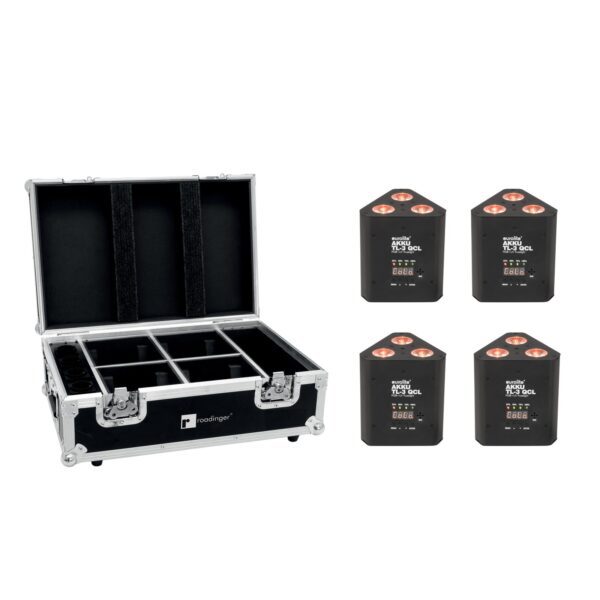

ROADINGER Flightcase 4x AKKU TL-3 Trusslight QuickDMX with charging function
PRO flightcase for 4 x AKKU TL-3, with charging function
- Suitable for four EUROLITE AKKU TL-3 TCL Quick-DMX (No. 41700501), EUROLITE AKKU TL-3 TCL Trusslight (No. 41700500)
- Charges up to four spots
- Interior and cover upholstered with foam
- High-quality workmanship with multiplex birch wood, black laminated
- Aluminum profile frames with rounded edges
- 2 hinges
- 2 chrome butterfly locks
- 2 chrome case handles
- Power connection via P-Con jack and included power cable
Weight: | 17,75 kg |
EUROLITE AKKU TL-3 QCL RGB+UV Trusslight | |
Power supply: | 100-240 V AC, 50/60 Hz |
IP classification: | IP20 |
Power connection: | Battery/battery pack built-in Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Power output: | IEC connector (F) mounting version |
Fuse: | F 1 A Fuse replaceable |
Battery pack type: | 1 x lithium ion 11,1 V, 2200 mAh, 24,42 Wh |
Battery pack: | Battery operation up to 8h depending on program used Recharging time 2,5h |
Lamp type: | LED lamp |
LED: | 3 x high-power 4 W 4in1 QCL RGB/UV (homogenous color mix) |
Flash rate: | 0 – 20 Hz |
DMX channels: | 2; 4; 5; 6; 9 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Passive convection |
Control: | Stand-alone; DMX; IR remote control; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function |
Beam angle: | 10° |
Beam angle (1/2 peak): | 10° |
Beam angle (1/10 peak): | 33° |
Housing color: | Black |
Dimensions: | Width: 12,22 cm Depth: 10,8 cm Height: 14,3 cm |
Weight: | 1,3 kg |
Noise classification: | Class 0 (no noise at all); Class 0 (no noise at all) |
Legal specifications | |
Ecodesign regulation: | yes |
Special product: | Not designed for household room illumination |
intended use: | show effect lighting |
ROADINGER Flightcase 4x AKKU TL-3 Trusslight QuickDMX with charging function | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | Max. 1150 W |
Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
Fuse: | Device fuse 5 x 20 mm, T 5 A Fuse replaceable |
Material: | Birch multiplex, 9 mm |
Color: | Black, laminated |
Compartment dimensions: | 15,5 cm x 15,5 cm x 11,5 cm |
Accessory compartment: | 9 cm x 34 cm x 11,5 cm |
Inside dimensions: | 43,5 cm x 34 cm x 11,5 cm |
Dimensions: | Width: 57 cm Depth: 37 cm Height: 24,5 cm |
Weight: | 8,50 kg |
