41700503 EUROLITE AKKU TL-3 TCL Trusslight QuickDMX wh
Spot for lighting within trussing, 3 x 3 W 3in1 LED, QuickDMX transceiver
- Compact and bright, making it perfect for truss installation
- Cordless, flexible and versatile
- With integrated QuickDMX receiver for the wireless transmission of DMX512 signals
- Equipped with 3 x 3 W TCL LED in red, green and blue
- Operation via mains connection or built-in rechargeable lithium-ion battery with up to 16 hours operating time
- DMX-controlled operation or stand-alone operation with Master/Slave function
- 3, 5 or 8 DMX channels selectable
- Functions: static colors, stepless RGB color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
- Dimmer speed (step response) adjustable
- Addressing and setting via Control Board with LCD
- Controllable via EUROLITE IR-13 remote control; included in the delivery
- Ideal for booth construction, stages and any kind of truss
- Ideal for ALUTRUSS 3-POINT SYSTEM DECOLOCK DQ3
- Hanging as well as standing installation possible
- Switch-mode power supply for operation between 100 and 240 volts
- IEC terminals for power linking up to 8 unit
- Control: Master/slave function; IR remote control; DMX; QuickDMX built-in; Sound to light via Microphone; Stand-alone
- Projection: flicker-free
Remote control
- Battery: 1 x Button cell 3.0 V CR2032 lithium manganese built-in

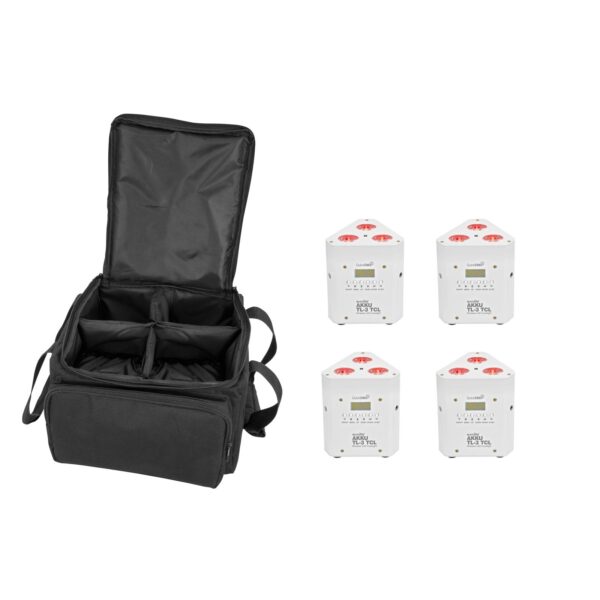

30130501 EUROLITE SB-4 Soft Bag M
Black softbag for up to four devices (Akku UP-4/TL-3 TCL)
- Practical transport bag offers enough space for several lighting effects and accessories
- Large interior, four times divisible and adaptable with foam dividers and pads
- Suitable e.g. for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540)
- Interior upholstery helps securing and safeguarding the fixtures during transportation
- External pocket stores accessories like cables, clamps, lamps and tape
- Made of easy-care nylon
- Carrying handles
- Additional dimensions: Compartment dimensions 14x14x19 cm
- Additional dimensions: Inside dimensions 29x29x19 cm
Weight: | 6,28 kg |
41700503 EUROLITE AKKU TL-3 TCL Trusslight QuickDMX wh | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 25 W |
IP classification: | IP20 |
Power connection: | Battery/battery pack |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) | |
Power output: | 1 x IEC connector (F) mounting version |
LED: | 3 x high-power 3 W 3in1 TCL RGB (homogenous color mix) |
Beam angle: | 11° |
Flash rate: | 0 – 23 Hz |
DMX channels: | 3; 5; 8 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling fan: | No, cooling by convection |
Control: | Master/slave function |
IR remote control | |
DMX | |
QuickDMX built-in | |
Sound to light via Microphone | |
Stand-alone | |
Housing color: | White |
Carrier frequency: | 2,4 GHz |
Width: | 12,1 cm |
Height: | 14,5 cm |
Depth: | 10,8 cm |
Weight: | 1,27 kg |
Device | |
Battery pack type: | 1 x Lithium ion 12,6 V, 4400 mAh, 55,44 Wh |
Accumulator: | battery operation up to 16h depending on program used recharging time 3h |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2032 lithium manganese built-in |
Legal specifications | |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
30130501 EUROLITE SB-4 Soft Bag M | |
Maximum load: | 25 kg |
Color: | Black |
Material: | Textile |
Additional dimensions: | Compartment dimensions 14x14x19 cm |
Inside dimensions 29x29x19 cm | |
Width: | 30 cm |
Height: | 20 cm |
Depth: | 30 cm |
Weight: | 0,51 kg |
