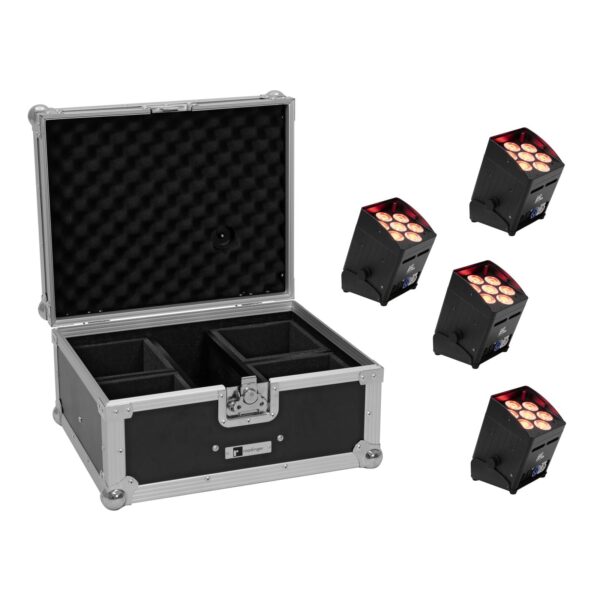

EUROLITE AKKU UP-7 QCL Spot QuickDMX
Uplight with 7 x 8 W 4in1 LED, QuickDMX transceiver, frost filter and IR remote control
- 7 high-power 8 W RGBW LEDs (4in1)
- With integrated QuickDMX transmitter/receiver for the wireless transmission of DMX512 signals
- Compact and bright
- Additional frost filter provides a soft, homogeneous light
- 9° beam angle; frost filter (22°) included in delivery
- Operation via built-in rechargeable lithium-ion battery with up to 17 hours operating time
- Integrated automatic charging of the battery with indicator
- Auto, music, master/slave and DMX/QuickDMX mode
- 36 professionally designed integrated show programs, sorted by colors and themes
- Direct color selection for 15 preset colors
- Stepless RGBW color mixture, color change, color fade, dimmer, strobe effect with variable speed, white balance
- Dimmer speed (step response) adjustable
- Addressing and setting via control panel with OLED display
- Convenient wireless control via included IR remote control EUROLITE IR-35
- Sturdy housing with carrying handle and folding foot for angled placement
- Floor-mounted use only, standing device without mounting bracket
- Additional rubber feet
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 7 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 3; 4; 6; 8; 11 CH mode
- The device is cooled by passive convection
- Controlling by DMX; Stand-alone; IR remote control; Master/slave function; Sound to light via Microphone; QuickDMX built-in
- Is in EASY SHOW; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light J Software already preprogrammed
- Flicker-free projection
- With a KENSINGTON LOCK theft protection
- For application areas such as: Small lender; Wedding/gala
ROADINGER Flightcase EC-AU4 4x AKKU UP 4 QCL Spot QuickDMX
Transport case for 4x AKKU UP-4QCL Spot QuickDMX
- Fitted for four EUROLITE AKKU UP-4 QCL Spot QuickDMX
- High-quality workmanship with birch multiplex, black laminated
- Aluminum profile frames with rounded edges
- Interior upholstered with foam
- Three-leg, big steel ball corners
- 2 hinges
- Cable conduit allows recharging the devicex inside the case
- 1 chrome butterfly lock
- 1 chrome case handles
Weight: | 23,86 kg |
EUROLITE AKKU UP-7 QCL Spot QuickDMX | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 70 W |
IP classification: | IP20 |
Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) Battery/battery pack built-in |
Power output: | 1 x P-Con (gray), mounting version |
Battery pack type: | 1 x lithium ion 25,9 V, 7800 mAh, 202,02 Wh |
Battery pack: | Battery operation up to 17h depending on program used Recharging time 3,5h |
Lamp type: | LED lamp |
LED: | 7 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) |
Flash rate: | 1 – 23 Hz |
DMX channels: | 3; 4; 6; 8; 11 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Passive convection |
Control: | DMX; Stand-alone; IR remote control; Master/slave function; Sound to light via Microphone; QuickDMX built-in; EASY SHOW; LED EASY OPERATOR 4×4; LED EASY OPERATOR 4×6; LED EASY OPERATOR DELUXE; Light J Software |
Beam angle: | 9° |
Beam angle (1/2 peak): | 9° |
Beam angle (1/10 peak): | 18° |
Housing color: | Black |
Carrier frequency: | 2,4 GHz |
Theft protection: | KENSINGTON LOCK |
Dimensions: | Width: 13,8 cm Depth: 16,7 cm Height: 18,9 cm |
Weight: | 3,60 kg |
Noise classification: | Class 0 (no noise at all) |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2032 lithium manganese built-in |
Legal specifications | |
Ecodesign regulation: | yes |
Special product: | Not designed for household room illumination |
intended use: | show effect lighting |
ROADINGER Flightcase EC-AU4 4x AKKU UP 4 QCL Spot QuickDMX | |
Maximum load: | 25 kg |
Color: | Black |
Interior height: | 45 cm x 36 cm x 20 cm |
Material thickness: | 6 mm |
Weight: | 7,00 kg |
