EUROLITE LED CLS-9 QCL RGB/WW 9x7W
LED floodlight with RGB/WW color mixing, barn doors, IR remote control and frost filter
- Additional frost filter provides a wide, soft and homogeneous light
- 3 buttons on the remote control for saving your own settings
- 9 powerful LEDs 7 W 4in1 QCL RGB/WW (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) adjustable; white balance
- Strobe effect
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); Master/slave function; Sound to light via Microphone; IR remote control
- Flicker-free
- With a beam angle of 10°
- With Mounting bracket
- OLED display
- Silent operation
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; Stage; theater; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x diffusor cover, 1 x remote control, 1 x barndoor, 2 x knurled screw

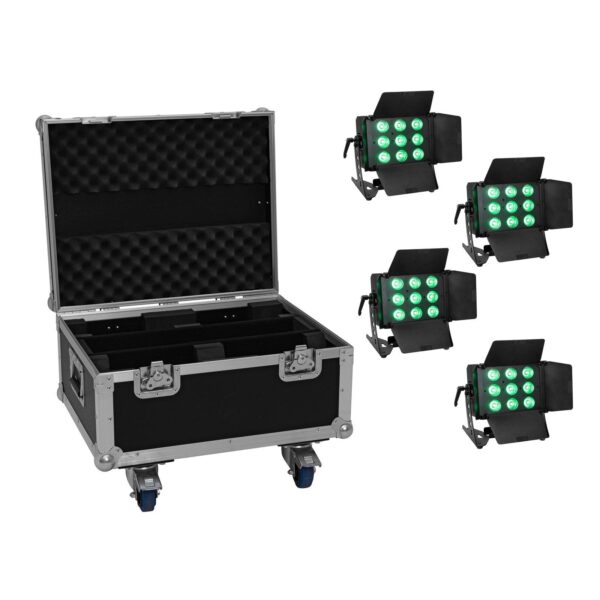

ROADINGER Flightcase 4x LED CLS-9 QCL RGB/WW 9x7W
PRO flightcase for 4 x LED CLS-9 QCL RGB/WW 9x7W
- High-quality workmanship with birch multiplex 10 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 32mm with rounded edges
- 4 hinged, chromium plated case handles
- 2 high-quality butterfly locks
- 4 castors with 2 locking brakes
- Branded hardware
- For further information about this product, please refer to the Data Sheet under “Downloads”
Weight: | 30,00 kg |
EUROLITE LED CLS-9 QCL RGB/WW 9x7W | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 54 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output: | 1 x PowerCON (gray) |
Lamp type: | LED lamp |
LED: | 9 x 7 W 4in1 QCL RGB/WW (homogenous color mix) |
Flash rate: | 1 – 23 Hz |
DMX channels: | 3; 4; 6; 8; 11 |
DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version |
Cooling: | Passive convection cooling |
Control: | Stand-alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); Master/slave function; Sound to light via Microphone; IR remote control |
Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 3 |
Projection: | Flicker-free |
Beam angle: | 10° |
Beam angle (1/2 peak): | 10° Frost filter 18° |
Beam angle (1/10 peak): | 28° Frost filter 47° |
Housing color: | Black |
Attachment system: | Mounting bracket |
Display type: | OLED display |
Dimensions: | Length: 27,1 cm Width: 14,3 cm Height: 21,3 cm |
Weight: | 3,20 kg |
Noise classification: | Class 0 (no noise at all) |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2032 lithium manganese built-in |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
ROADINGER Flightcase 4x LED CLS-9 QCL RGB/WW 9x7W | |
Aluminum profile frames: | 32 mm |
Case handle: | 4 pc/pcs |
Lock: | Butterfly lock: 2 pc/pcs |
Transport aid: | 4 x castors with 2 locking brakes |
Use of brands: | Branded hardware |
Material: | Birch multiplex, 10 mm |
Color: | Black, laminated |
Weight: | 15,10 kg |
