EUROLITE LED IP T-Bar 16 QCL Bar
Weather-proof (IP65) bar with RGBW color mixing, incl. IR remote control
- 16 high-power 8 W RGBW LEDs (4in1)
- Suitable for external use (IP65)
- Auto, master/slave and DMX mode
- Built-in auto show programs
- Direct color selection for 19 preset colors
- Stepless RGBW color blend, color change with programmable speed, dimmer and strobe effect
- Addressing and setting via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control EUROLITE IR-7
- 3, 4, 5, 6 or 9 DMX channels selectable
- wivel mounting bracket
- Switch-mode power supply for operation between 100 and 240 volts
- IP T-Con terminals for power linking up to 8 units
- LED: 16 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 3; 4; 5; 6; 9 CH mode
- The device is cooled by passive convection
- Controlling by DMX; Master/slave function; Stand-alone; IR remote control (provided)
- Is in Light J Software already preprogrammed
- Flicker-free projection
- Suitable for outdoor use

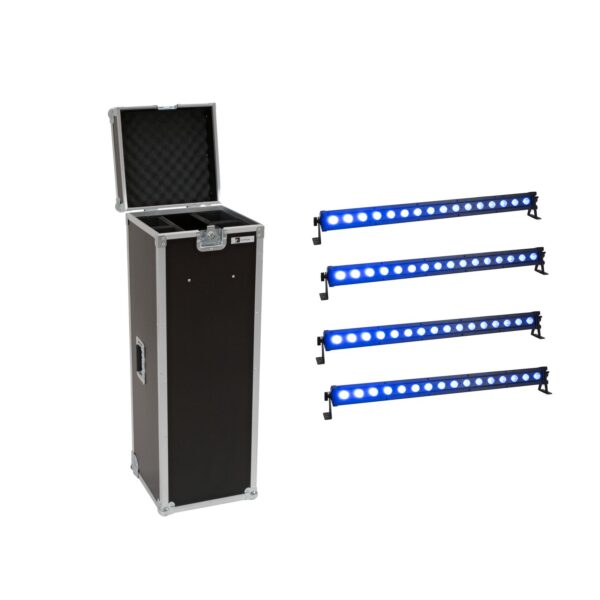

ROADINGER Flightcase 4x LED IP T-Bar 16 QCL Leiste
- Transport aid: Trolley
- Made in Europe
Weight: | 43,85 kg |
EUROLITE LED IP T-Bar 16 QCL Bar | |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 50 W |
IP classification: | IP65 |
Power connection: | Fixed IP T-Con (M) Power supply cord with safety plug |
Power output: | IP T-Con (F) |
Lamp type: | LED lamp |
LED: | 16 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) |
Flash rate: | 0 – 20 Hz |
DMX channels: | 3; 4; 5; 6; 9 |
DMX input: | 3-pin XLR (M) IP |
DMX output: | 3-pin XLR (F) IP |
Cooling: | Passive convection |
Control: | DMX; Master/slave function; Stand-alone; IR remote control (provided); Light J Software |
Beam angle: | 20° |
Beam angle (1/2 peak): | 20° |
Beam angle (1/10 peak): | 35° |
Housing color: | Black |
Display type: | 4 digits 7-segment LED display |
Dimensions: | Length: 1,065 m Depth: 10,00 cm Height: 12,65 cm |
Weight: | 5,95 kg |
Noise classification: | Class 0 (no noise at all) |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese |
Legal specifications | |
Ecodesign regulation: | yes |
Special product: | Not designed for household room illumination |
intended use: | show effect lighting |
ROADINGER Flightcase 4x LED IP T-Bar 16 QCL Leiste | |
Maximum load: | 50 kg |
Material thickness: | 6,5 mm |
Dimensions: | Width: 38 cm Depth: 37 cm Height: 1,14 m |
Weight: | 17,85 kg |
