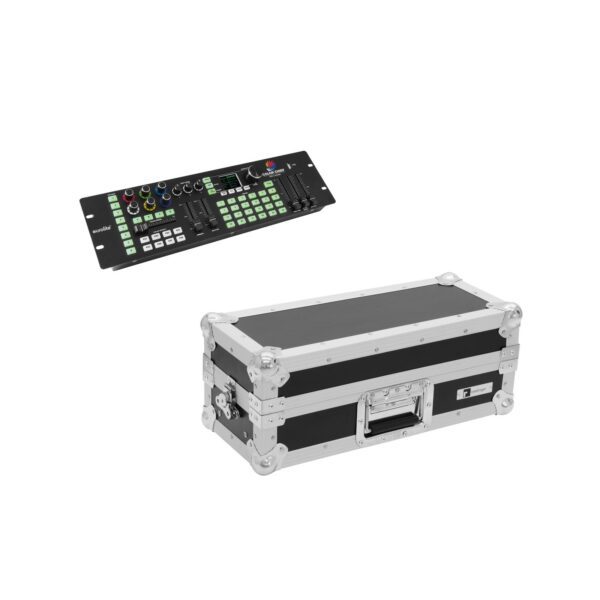

EUROLITE Set DMX LED Color Chief + Case

70064575 EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for data storage of lighting programs
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• Very simple to program and use
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Rack installation with 3 units
• Controller useable for: RGB
• Controller useable for: RGBA
• Controller useable for: RGBW
• Controller useable for: RGBA+RGBW
• Controller useable for: RGBWA
• Controller useable for: RGBWA+UV
• Controller useable for: RGB+WA
• Controller useable for: RGBW+UV
• Controller useable for: RGB+UV
• Controller useable for: Colour wheel
• Controller useable for: Controls DMX-effects
• Controller useable for: Controls KLS classic
• Controller useable for: Controls KLS in general

30111572 ROADINGER Mixer Case Pro MCA-19-N, 3U, black

Flightcase for 483 mm units (19″)

• Suitable for 483 mm units (19″), e.g. controllers and mixers, with 3 U
• Upward tilted profile rails (approx. 13°) for top-operated units
• Interior upholstered with foam (black)
• High-quality workmanship with plywood multilayered glued, black
• Aluminum profile frames (30 mm) with rounded edges
• Removable cover
• Three-leg, medium-sized steel ball corners
• 2 high-quality butterfly locks
• 4 steel-enforced rubber feet
• Padded carrying handle
• Delivery includes mounting screws

70064575 EUROLITE DMX LED Color Chief Controller

Power supply:   100-240 V AC, 50/60 Hz
   via included power adapter (9 V/800 mA)
Control channels:   maximum 240
Storable scenes/chases:   24
DMX512 output:   3-pin XLR connector
Sound-control:   via built-in microphone or
   RCA line input (min. 100 mV)
Available storage media:   USB devices (FAT32)
Dimensions (L x W x H):   482 x 132 x 85 mm
   Rack installation with 3 U
Number of DMX channels:   240
Weight:   2,2 kg
Power consumption:   10 W
IP classification:   IP20
Color:   Black
Height:   8,5 cm
Depths:   13,35 cm
Width:   48,3 cm

30111572 ROADINGER Mixer Case Pro MCA-19-N, 3U, black

Strength:   7 mm
Outside dimensions (W x D x H):   550 x 240 x 235 mm
Maximum load:   25 kg
Weight:   5,1 kg
