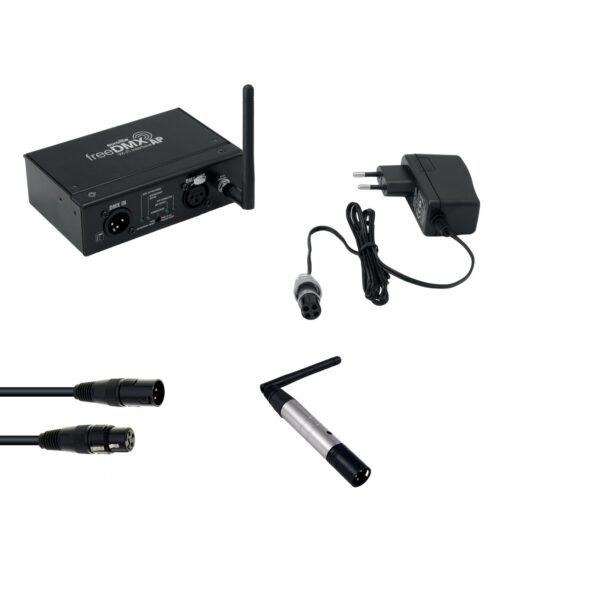

EUROLITE Set freeDMX AP Wi-Fi Interface + QuickDMX Funksender + DMX cabel

EUROLITE freeDMX AP Wi-Fi Interface

Wireless WLAN DMX interface for apps & programs like Steinigke Light’J

• WLAN DMX interface for wireless lighting control from your tablet or PC
• Receives the control signals via the network and transmits them to the DMX line via cable
• Works with iPad and Android tablets
• Control your DMX fixtures more flexible than ever with the Steinigke Light’J app
• Light’J now also supports DMX fixtures of all manufacturers
• The app’s online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures – easily add new ones via the fixture profile editor
• Light’J is available for free from the play store and app store and is optimized for tablets from 7″
• Configuration via integrated webserver
• Access point and infrastructure mode
• WLAN standard IEEE802.11b/g/n
• 3-pin XLR connectors for DMX IN/DMX OUT (Neutrik)
• DMX feed-through capability
• Status LEDs
• Powered via included PSU
• Works with FreeStyler
• Works with DMXControl
• Rack mounting kit available as an option (item 70064872)
• Can transmit up to 512 DMX channels
• Controlling by DMX; Light´J app; W-Lan
• Use a operating range up to 60m in the open air
• Use a operating range up to 30m in buildings
• Made in Germany

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band – license-free worldwide
• Can transmit up to 512 DMX channels
• Controlling by QuickDMX built-in
• Use a operating range up to 400m

EUROLITE DMX cable XLR 3pin 1m bk

High-quality DMX cable

• Adheres to the DMX standard USITT DMX-512/1990/-A
• Very flexible cable
• Electric cable with good shielding
• Very rugged
• For building DMX controlled lighting systems, LED spotlights etc.
